Understanding Drip Irrigation Fittings: A Complete Guide for DIY Success

After setting up your first drip irrigation system, you've probably discovered that fittings are where most problems occur. Leaks, disconnections, and compatibility issues can turn what should be a simple watering system into a constant source of frustration. Understanding how different fittings work, when to use each type, and how to install them properly will help you build a reliable system that serves your garden for years.

The Role of Fittings in Your Drip System

Drip fittings serve several essential functions in your irrigation system. They connect your water source to distribution lines, split water flow to different garden areas, transition between different tubing sizes, and allow you to create custom layouts that match your specific planting arrangements.

The key to a successful drip system lies in choosing the right fitting for each connection point and understanding how each type performs under real-world conditions.

Understanding Tubing Sizes and Applications

Most residential drip systems use three main tubing sizes, each serving different purposes in your overall layout.

3/4-Inch and 1-Inch Supply Lines: The Main Arteries

For larger properties, underground installations, or systems serving multiple zones, 3/4-inch and 1-inch supply lines form the primary water distribution network. These large-diameter lines carry water from your main valve or water source to different areas of your property with minimal pressure loss. Underground supply lines are typically permanent installations that connect to multiple seasonal or permanent drip zones. The larger diameter allows these lines to serve several 1/2-inch distribution networks simultaneously while maintaining adequate pressure throughout the system.

1/2-Inch Tubing: Your Distribution Network

Half-inch tubing forms the secondary distribution network in most drip systems, carrying water from supply lines or your source to different zones in your garden. This tubing handles moderate flow rates and maintains consistent pressure across medium-length runs. You'll typically run 1/2-inch lines along garden beds, around landscape areas, or between major planting zones.

1/4-Inch Tubing: Precision Water Delivery

Quarter-inch tubing creates your final water delivery network, bringing water directly to individual plants or small groups of plants. This smaller tubing connects to your 1/2-inch distribution lines and feeds emitters, micro-sprayers, and soaker lines where precision watering matters most.

Types of Drip Fittings and How They Work

Insert/Barb Fittings with Clamps

The most common traditional fittings use barbs that insert into tubing with separate clamps holding everything together. These fittings work by creating friction between the barb and the inner tubing wall, while the clamp prevents the tubing from pulling off under pressure.

When to use them: Budget-conscious installations where you don't need frequent modifications and don't mind the extra installation steps.

Limitations: Tools for clamp installation, create multiple failure points, and can be difficult to remove for system changes.

Compression Fittings

Compression fittings work by mechanically squeezing the tubing between inner and outer components. They typically don't require clamps but only work with tubing of a specific diameter.

When to use them: Permanent installations where you're certain about tubing specifications and won't need to reconfigure the system.

Limitations: Limited compatibility with different tubing brands, difficult to remove once installed, and often require significant grip strength for installation.

Push-Fit Technology

Modern push-fit fittings use internal gripping mechanisms to hold tubing securely while allowing for easy removal and reinstallation. These fittings incorporate sealing systems that maintain watertight connections while permitting some rotation after installation.

How they work: Internal gripping teeth or rings bite into the tubing exterior while seals prevent water leakage. A release mechanism allows for easy disconnection when needed.

Limitations: Push-fit fittings typically cost more initially than basic barb fittings. They may also be unnecessary for simple, permanent installations where you'll never need to disconnect the fittings.

Common Installation Problems and Solutions

Leaking Connections

Most leaks occur because of improper tubing preparation or incorrect fitting selection. Always cut tubing cleanly with sharp cutters – ragged cuts prevent proper sealing and can cause stress concentrations that lead to failures.

For fittings that accommodate multiple tubing sizes, ensure your tubing diameter falls within the specified range. Tubing that's too small won't create proper seal contact, while oversized tubing may not insert properly or could damage the fitting.

Wall thickness is equally important. Some value-line tubing has thinner walls that could flex, preventing proper grip and possibly causing failures under normal operating pressure.

Difficult Removal

Traditional barb fittings become increasingly difficult to remove as they age, especially when installed with clamps. The barbs can actually embed deeper into the tubing over time, making removal nearly impossible without cutting the tubing.

Some installers may also heat tubing to make barb fitting insertion easier, but this technique often backfires in the long run. The heat softens the tubing, allowing the barbs to embed even more deeply and potentially weakening the tubing material. When the tubing cools and hardens around the barbs, removal becomes super easy or virtually impossible.

Tubing Compatibility Issues

Different manufacturers use slightly different tubing dimensions, even for supposedly standard sizes. A "1/2-inch" tube from one brand might not fit properly in another brand's fittings. Additionally, manufacturing tolerances mean that even the same brand and model of tubing will have slight dimensional variations from one foot to the next along the same length.

Hand Strength and Accessibility

Many gardeners struggle with fittings that require significant grip strength or precise finger positioning for installation. This becomes particularly problematic when working in tight spaces or when arthritis or other conditions affect hand dexterity.

Consider the ergonomic requirements of your chosen fittings, especially if you'll be installing many connections or frequently reconfiguring your system.

Planning for Seasonal Systems

Many successful drip systems are seasonal rather than permanent installations. Vegetable gardeners often remove their entire system each winter and rebuild it differently each spring as crop rotations and garden layouts change.

Design Considerations for Seasonal Systems

When planning a system you'll reconfigure regularly, minimize the number of permanent holes in your tubing. Traditional barb fittings that pierce the tubing wall leave holes that require plugging when fittings are moved. Over several seasons, this can compromise tubing integrity.

Choose fittings that grip the tubing exterior without penetrating the wall. This approach keeps your tubing intact for reuse and eliminates the need for goof plugs when reconfiguring.

Storage and Component Protection

Plan for compact storage when designing seasonal systems. Fittings that can be easily removed allow you to coil tubing efficiently and protect components from winter weather damage.

Building Mixed Permanent and Seasonal Systems

Many gardeners benefit from hybrid systems that combine permanent main lines with seasonal distribution networks. This approach uses larger tubing (3/4-inch or 1-inch) for permanent infrastructure that feeds multiple zones through the growing season, while smaller tubing handles the seasonal connections that change with planting patterns.

This strategy minimizes seasonal labor while providing maximum flexibility where you need it most.

Advanced Fitting Applications

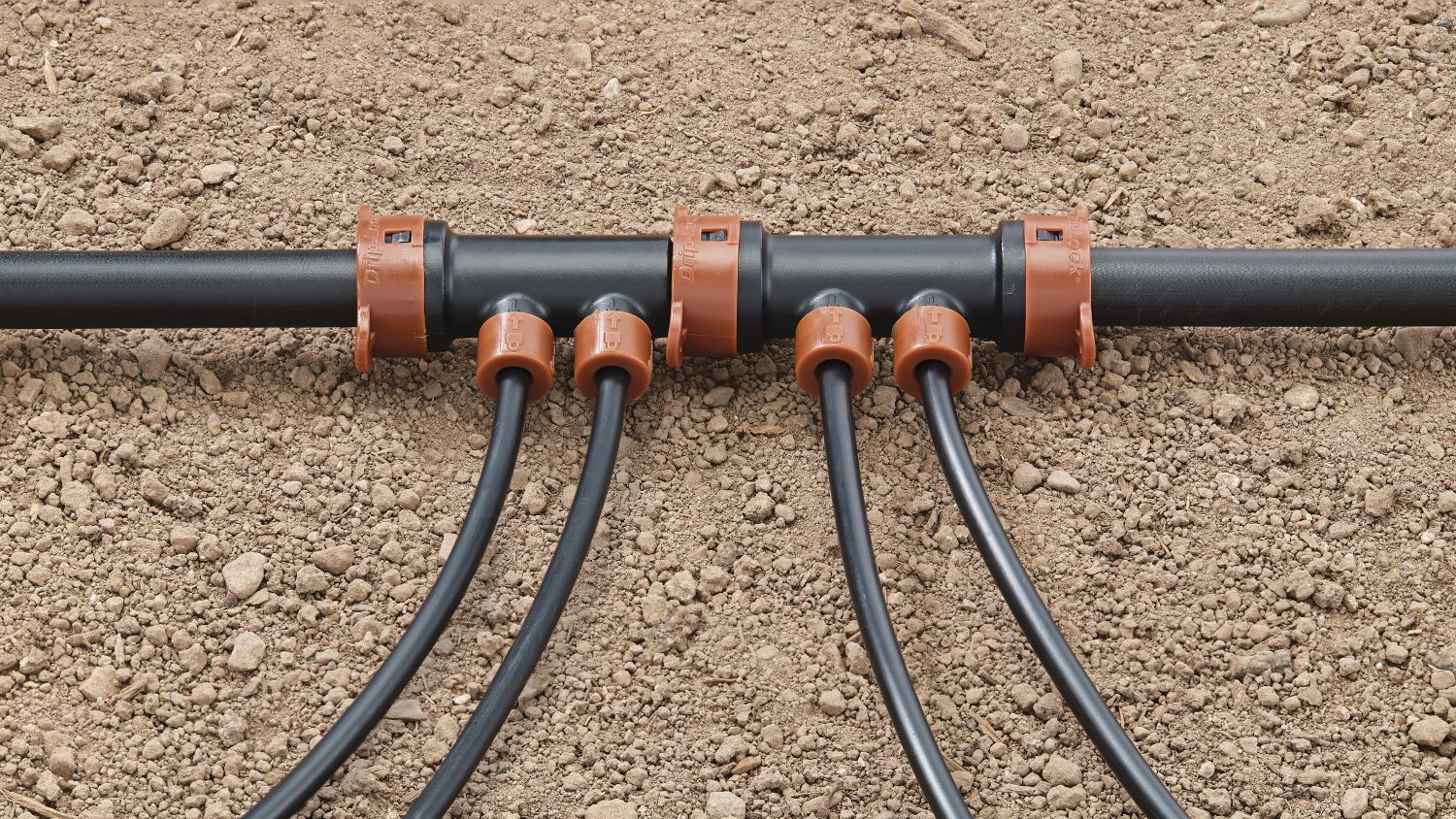

Manifolds and Multi-Port Connections

Manifolds allow you to split water flow from larger tubing to multiple smaller lines. Quality manifolds incorporate flow control for each port, allowing you to balance water delivery across different plant types or microclimates.

Pressure Regulation and Filtration

Some fittings integrate pressure regulation and filtration functions. These combination components can simplify system design but require understanding of their specific operating characteristics and maintenance requirements.

Installation Best Practices

Tubing Preparation

Always cut tubing with sharp, clean cutters to ensure smooth insertion and proper sealing. Ragged cuts create leak paths and can damage fitting seals.

System Testing

Test every connection at full operating pressure before finalizing your installation. It's much easier to address problems when you can still access all connections easily.

Pressure Management

Ensure your system operates within the pressure range specified for your fittings. Most drip fittings work best between 15-30 PSI, while many household water supplies provide 40-80 PSI. Use pressure regulators to protect your system and ensure optimal performance.

Making the Right Choice for Your Garden

The best fitting choice depends on your specific situation, maintenance preferences, and long-term plans for your garden.

For permanent landscape installations where you rarely need changes, traditional fittings may provide adequate performance at lower initial cost. However, factor in the total cost including clamps, installation time, and potential leak repairs.

For systems requiring seasonal modifications, or where ease of installation and maintenance matter, modern push-fit technologies like Orbit's Drip-Lock fittings offer significant advantages. These fittings accommodate tubing ranging from 16mm to 18mm in diameter for 1/2-inch applications and 0.230" to 0.260" for 1/4-inch connections, work without clamps or tools, and allow unlimited removal and reinstallation.

The stainless steel gripping system and advanced sealing technology (O-rings for 1/4-inch, EPDM seals for 1/2-inch) provide reliable performance across pressure ranges from 5 to 50 PSI while making installation significantly easier on your hands than traditional compression fittings.

Troubleshooting Common Issues

Persistent Leaks

Check tubing cut quality, verify proper insertion depth, and ensure tubing diameter matches fitting specifications.

Flow Problems

Verify adequate pressure supply, check for clogged filters, and ensure proper sizing of distribution tubing for your flow requirements.

Seasonal Failures

Protect connections from freeze damage, use UV-resistant components for above-ground installations, and replace aging components before they fail during critical growing periods.

Your Path to Drip Irrigation Success

Understanding fittings might seem like a small detail, but choosing the right components for your specific needs makes the difference between a system you enjoy using and one that becomes a constant maintenance burden.

Start with quality components that match your installation skills and long-term plans. A well-designed drip system will serve your garden reliably for many seasons while conserving water and reducing your daily maintenance tasks.

Ready to build or upgrade your drip irrigation system? Understanding your options for fittings, tubing, and system design will help you create the perfect watering solution for your garden's unique needs.
