A Guide to Orbit Valve Boxes

When planning your sprinkler system, one of the decisions you'll make is selecting the right valve box. The valve box protects your irrigation valves from vehicles, kids, and the elements while keeping them accessible for maintenance. But with different sizes and configurations available, how do you know which one is right for your project?

Let's break down everything you need to know about Orbit's valve box options, including how many valves fit in each box and which setup will work best for your irrigation needs.

Understanding Your Options:

Valve Boxes

Orbit offers both round and rectangular valve boxes for different applications:

Round Valve Boxes

• 7" Round: Perfect for master valves, drip pressure regulator and filter combinations, or flow meters
• 10" Round: Ideal for complete drip control zones (valve + pressure regulator + filter), commercial master valves, or larger flow meters

When to use: flow meter applications, shut-off valves, master valves, drip irrigation zones, or when adding components to existing systems

Rectangular Valve Boxes

• Standard: 12 x 17
  • Capacity: 2-4 valves depending on setup
  • Best for: Most residential applications
• Jumbo: 15 x 22
  • Capacity: 2-4 valves (same as standard)
  • Best for: Installations requiring extra workspace, accommodating larger pipes up to 3"

Pro tip: The jumbo usually doesn't increase valve capacity, but the larger dimensions (15" x 22") give you much more elbow room when working with complex setups or larger components.

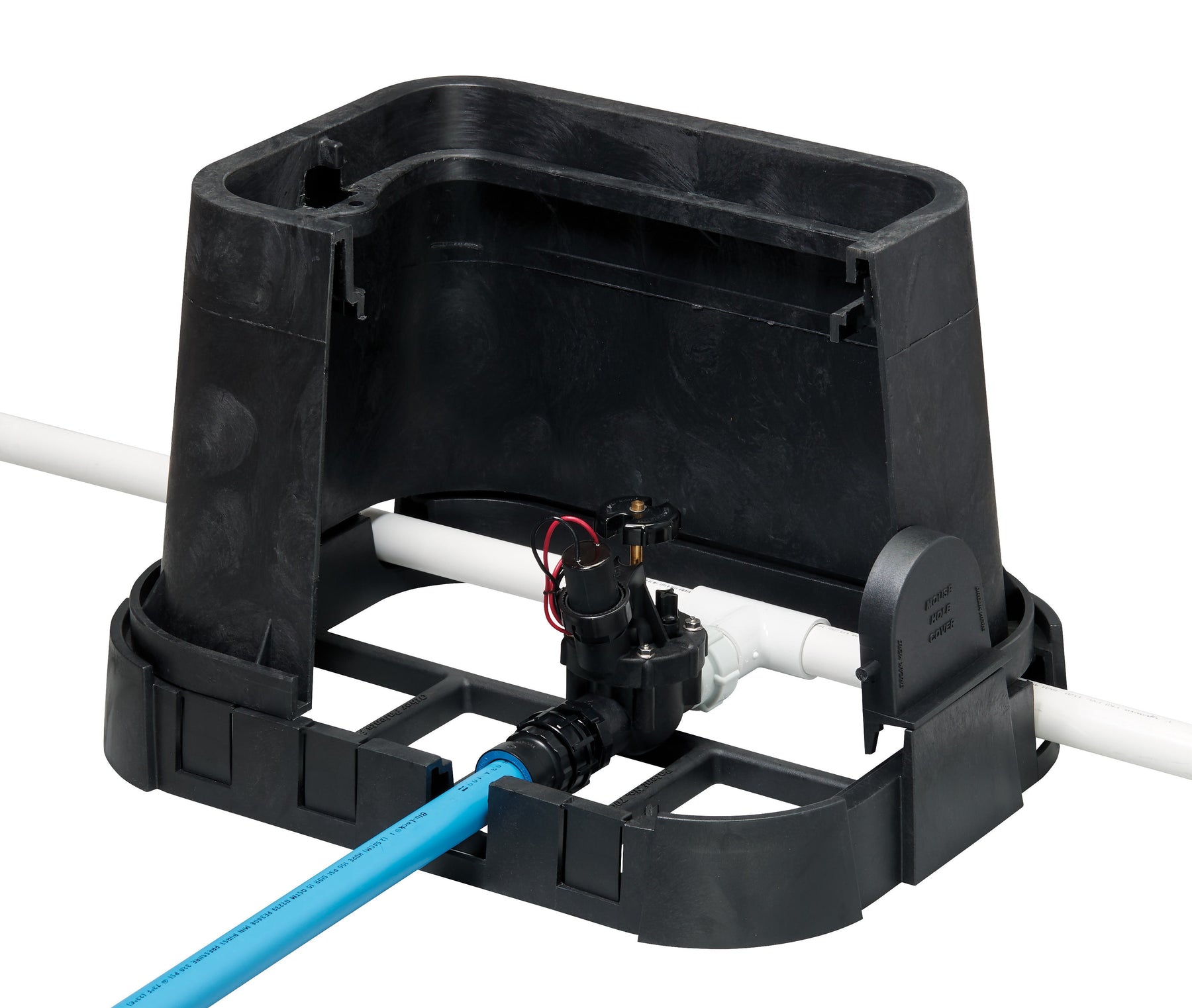

Valve Box Base

Here's where Orbit really shines. The valve box base (53230) is engineered specifically for multi-valve installations and works seamlessly with our pre-assembled manifold system.

Valve Box Base Specifications:

• Upper seat: 21" x 15.6" (fits standard 12-inch valve boxes)
• Lower seat: 19.8" x 14.5" (fits shallow/extension boxes)
• Valve capacity: 4 L-series residential valves
• Commercial valves: Will accommodate, though they may touch and end valves might tilt slightly
• Mouse Hole Covers: Includes covers for the arches on the valve boxes.

Best Practices: Why the Pre-Assembled Manifold System is a Game-Changer

Traditional valve setups use glued PVC or threaded Schedule 80 risers, making them incredibly difficult to service. If a valve fails, you're looking at cutting pipes and major reconstruction.

Orbit's pre-assembled manifold system eliminates this headache:

Key Advantages:

• Special swivel unions: Create secure, watertight seals while remaining serviceable
• Easy valve replacement: Simply unthread the swivel, slide it back, add or replace the valve
• Simple upgrades: Adding a drip filter and pressure regulator is equally straightforward
• Professional results: Mount on the valve box base for a clean, professional installation
• No Tool Installation: Swivel unions use O-rings and only require hand tightened connections
• Universal: Works with most manifold fittings from Action Machining and most (if not all) 1" Irrigation valves

Installation Best Practices:

1. Use the valve box base: It's specifically designed to work with our pre-assembled manifolds
2. Install at grade level: Position the lid flush with the ground surface
3. Add gravel beneath: Promotes drainage and prevents settling
4. Consider future needs: It's easier to install a larger system initially than to expand later

Choosing the Right Setup for Your Project

For Most DIY Homeowners:

Recommended: Valve box base + pre-assembled manifold

• Accommodates 2-4 valves depending on your system
• Professional appearance and serviceability
• Future-proof design for easy modifications

For Single Component Applications:

7" Round: Master valves, drip pressure regulator/filter combos, basic flow meters

10" Round: Complete drip control zones, commercial master valves, larger flow meters

For Professional or Complex Installations:

Recommended: Jumbo rectangular valve box (15" x 22" x 12" high) + custom manifold

• Extra workspace for complex setups
• Accommodates larger pipes up to 3" diameter
• Room for 8 valves with custom manifold arrangements
• Professional-grade installations

Real-World Capacity Considerations

While creative installers can fit 8 or more individual valves in a box, we recommend following best practices:

• Standard residential valves (L-series): 4 valves fit comfortably with proper spacing
• Commercial globe valves: May require slight adjustments but still fit
• Always plan for serviceability: Don't pack valves so tightly that maintenance becomes difficult

Why Orbit's Approach Makes Sense

Our valve box base didn't happen by accident. We developed it first, then created the pre-assembled manifold system to work perfectly with it. This integrated approach means:

• Components are optimized to work together
• Installation is faster and easier
• Long-term maintenance is simplified
• Professional results for DIY installers

The Bottom Line

Don't let your valve box choice be an afterthought. The right valve box setup protects your investment and makes future maintenance simple. For most DIY homeowners, the valve box base paired with our pre-assembled manifold system offers the perfect combination of professional results and user-friendly installation.

Remember: it's much easier to install the right system from the start than to retrofit later. Choose a solution that gives you room to grow and keeps your valves accessible for years to come.
