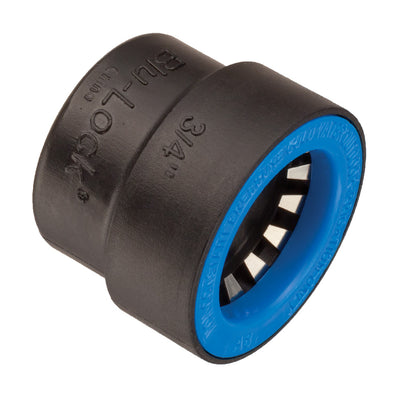

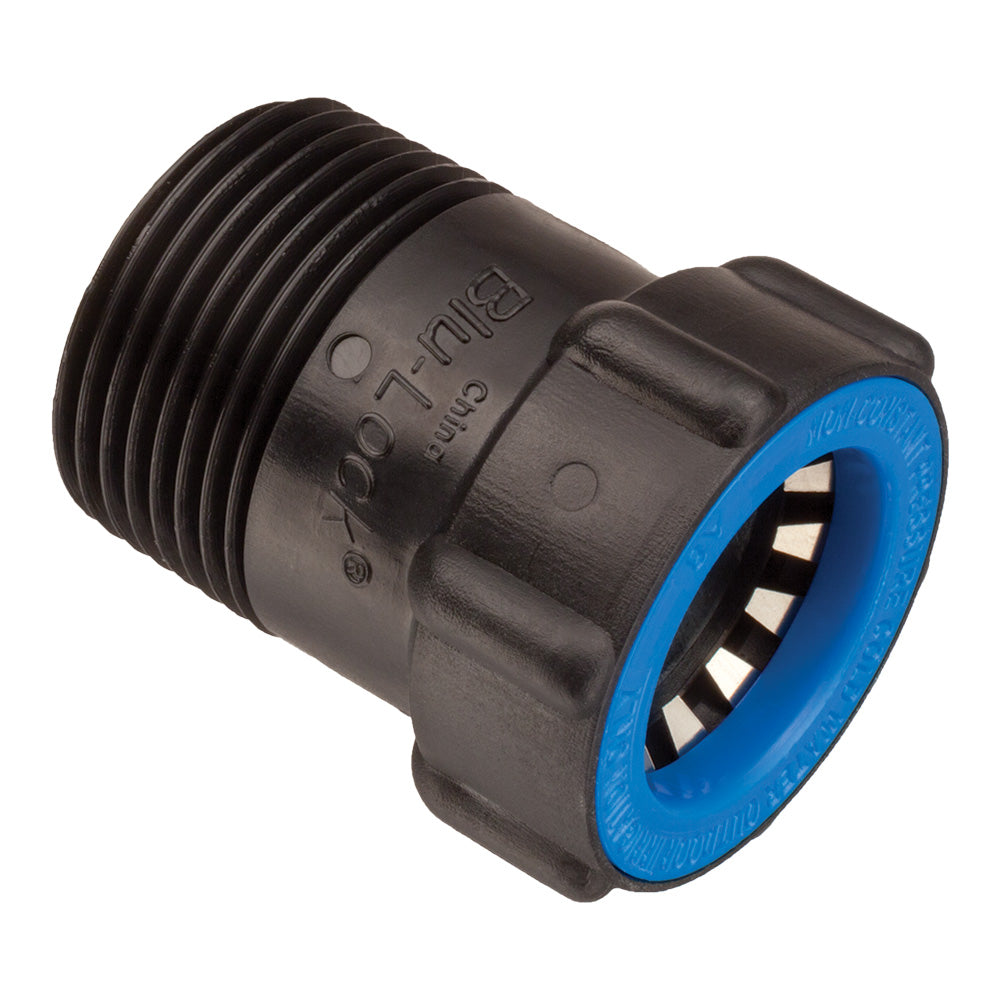

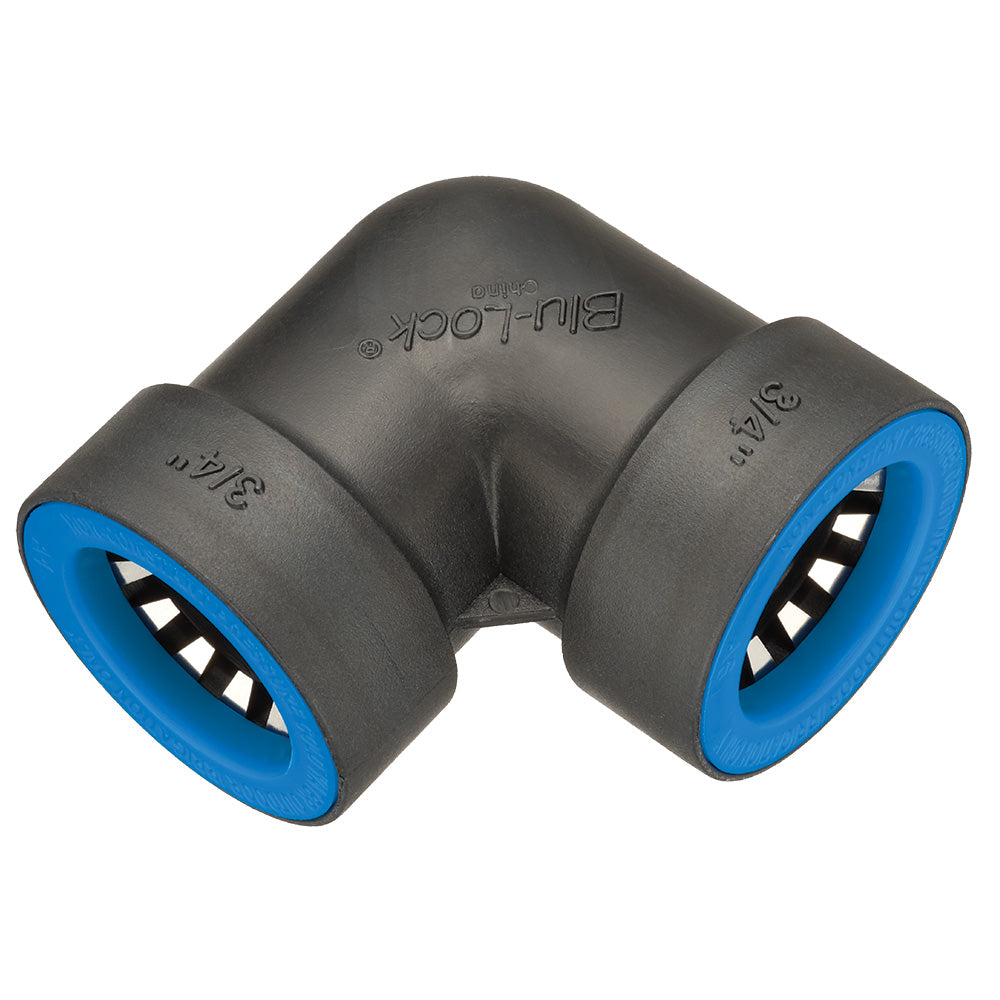

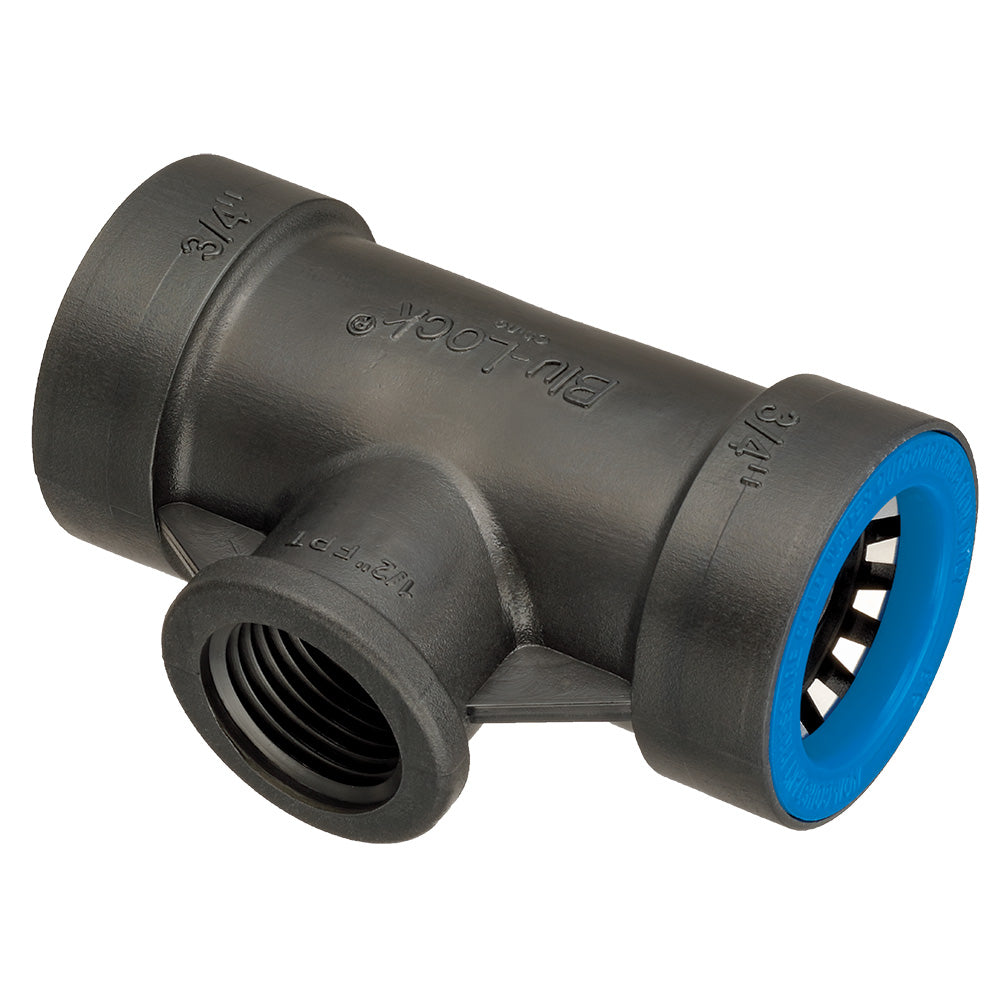

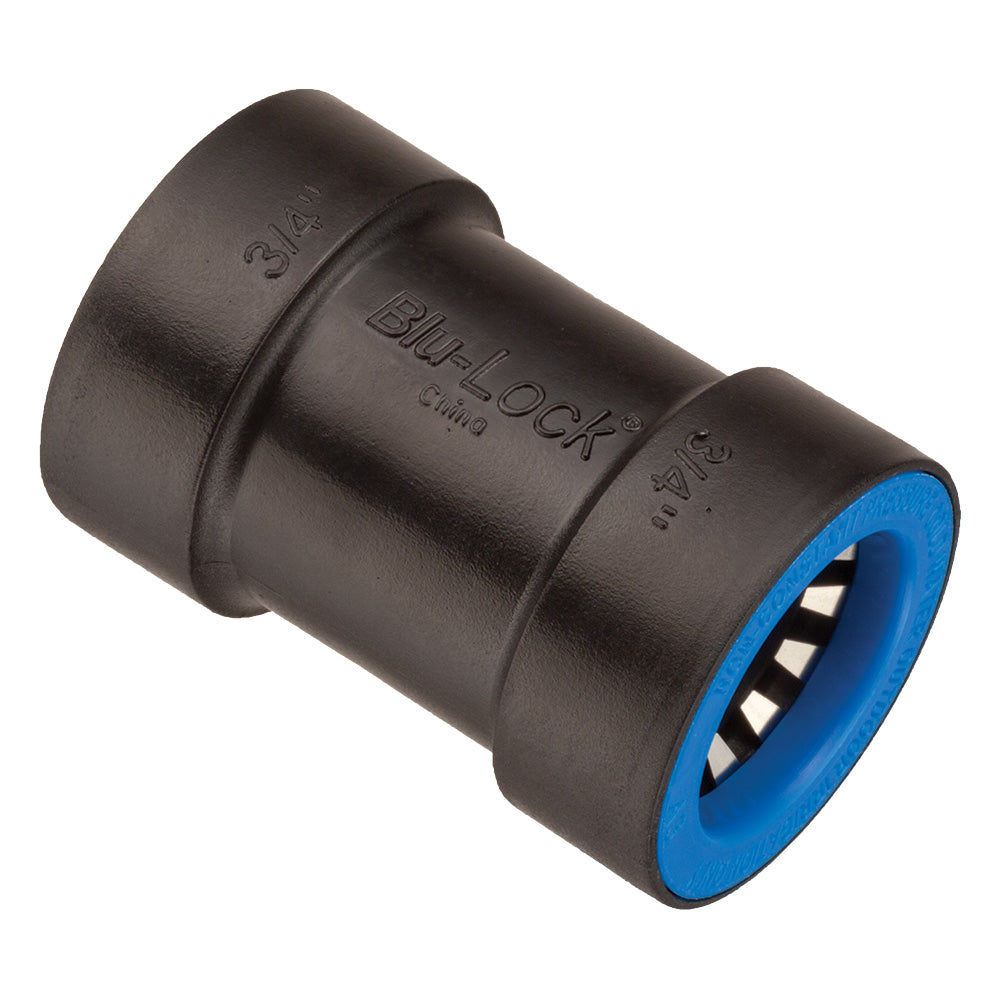

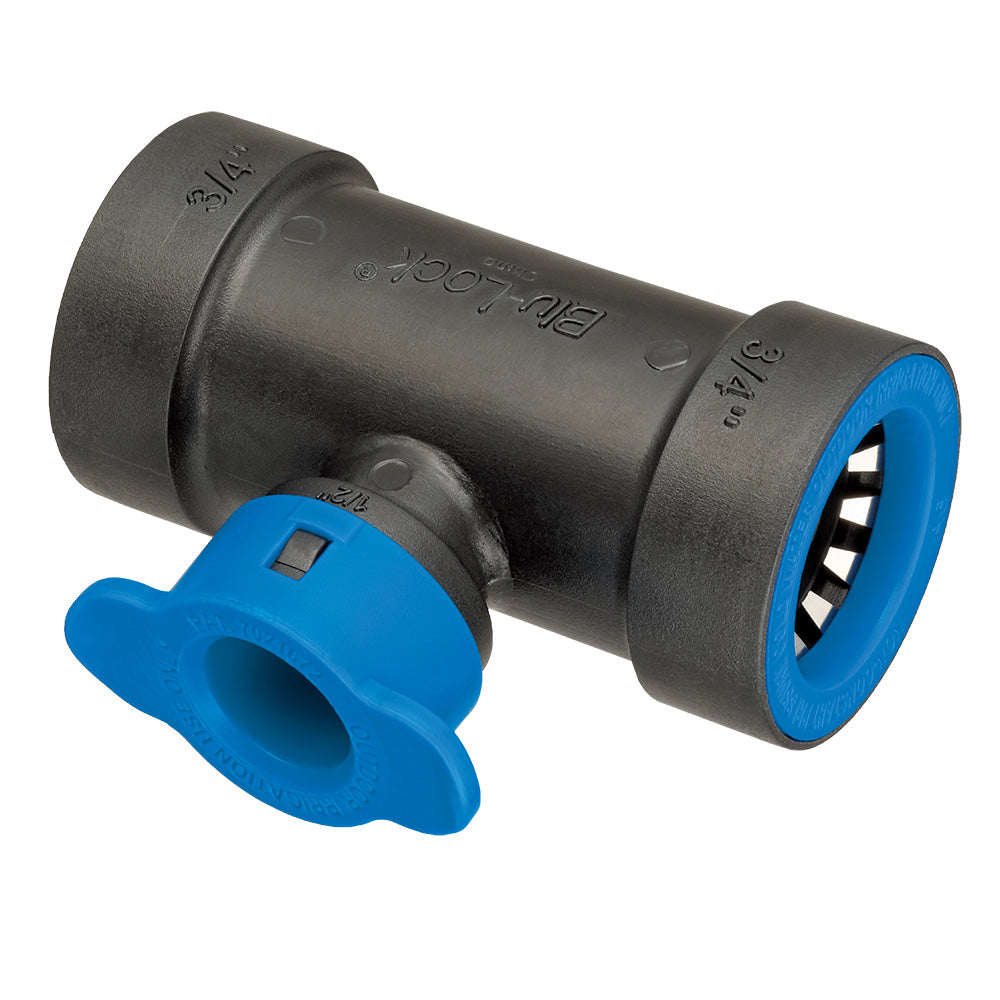

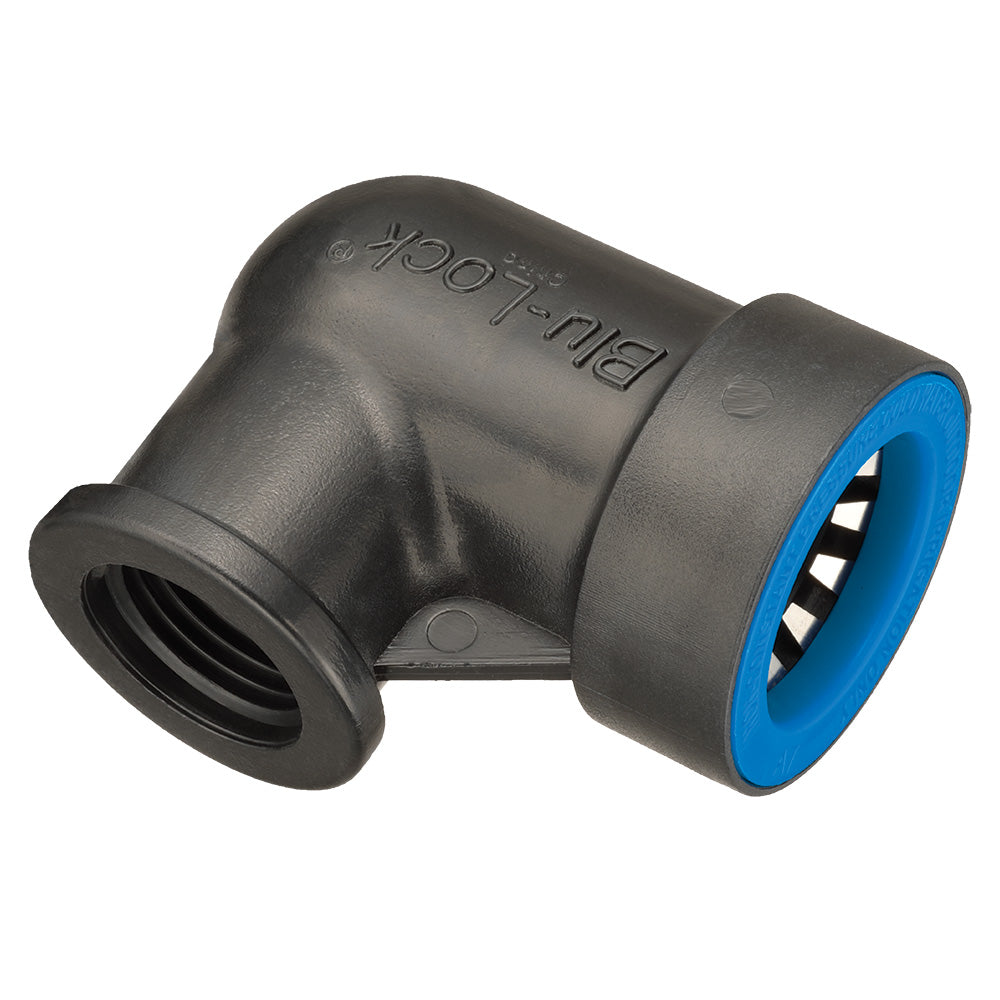

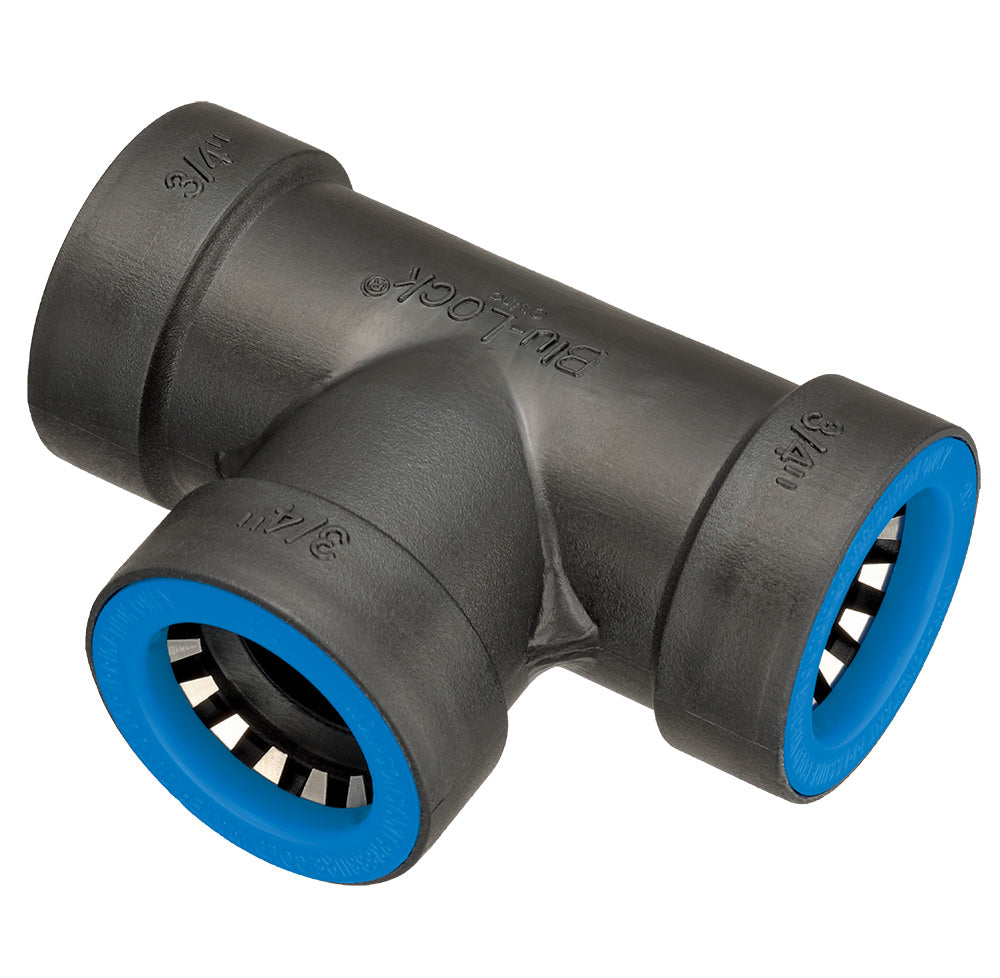

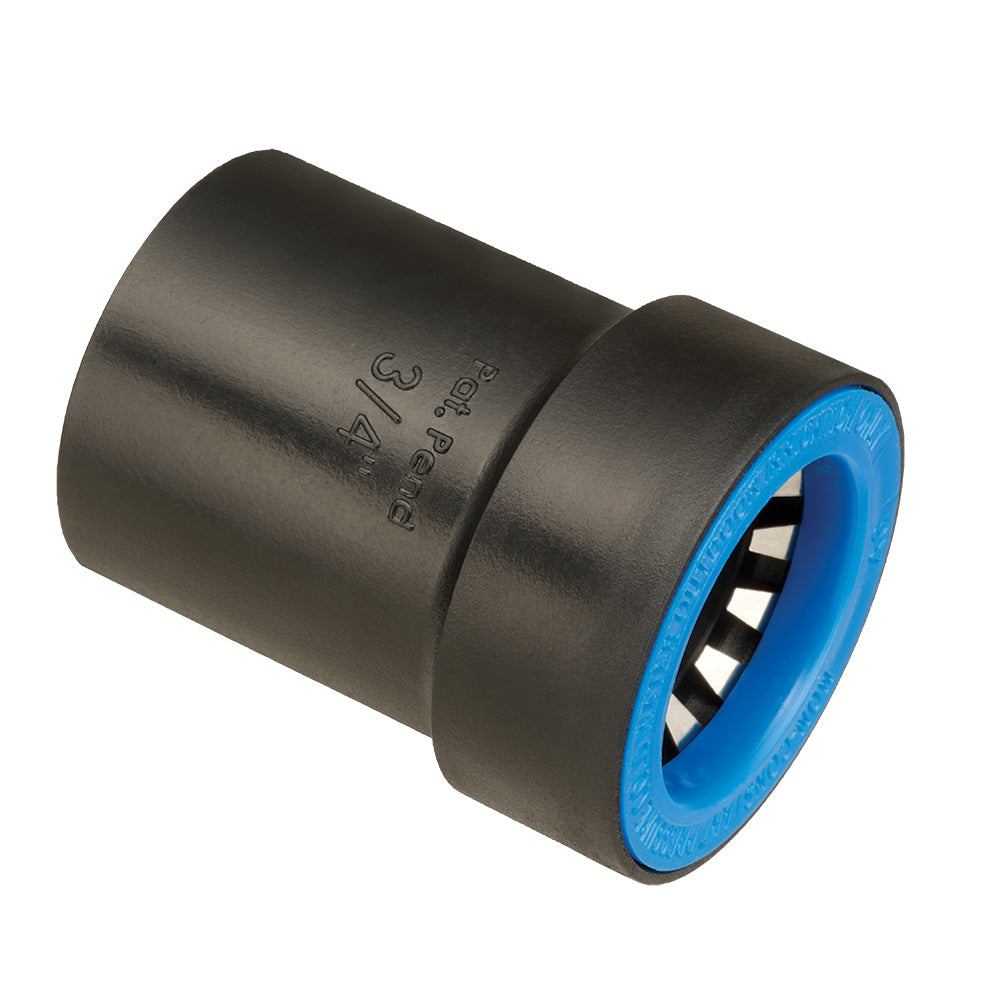

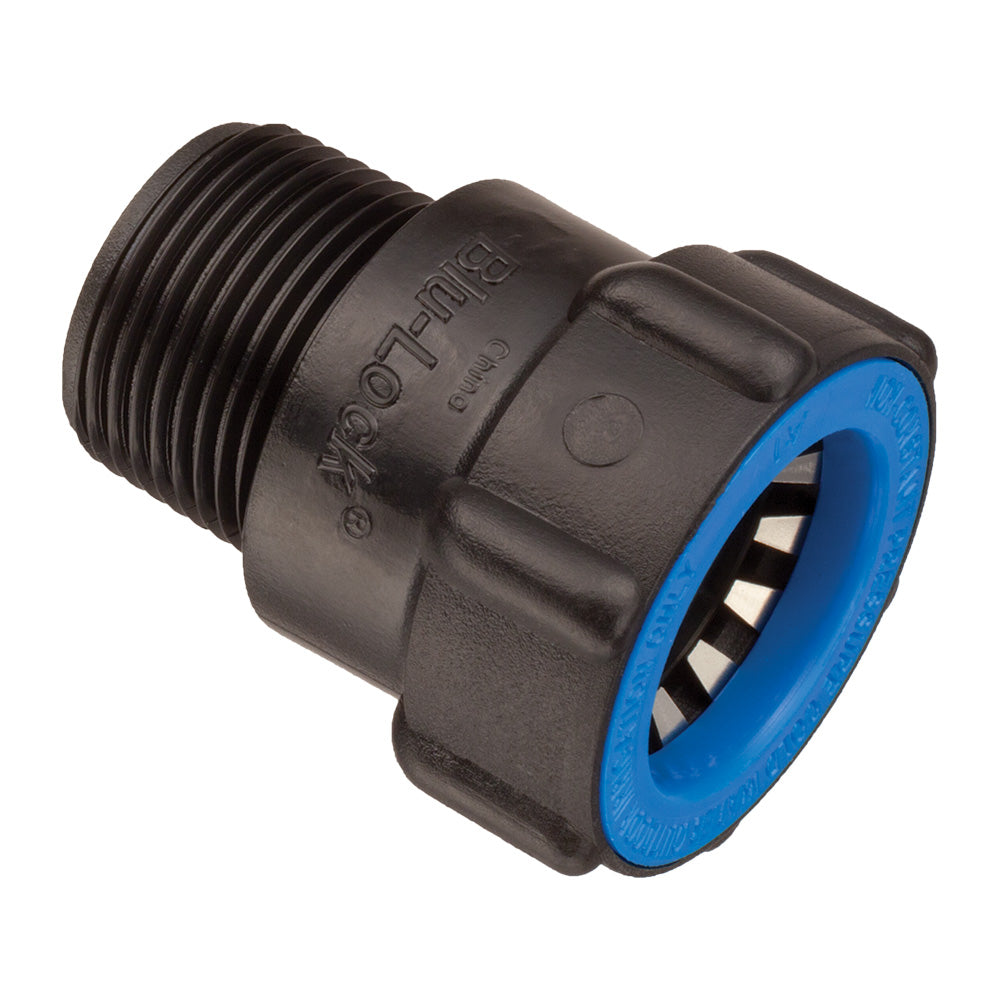

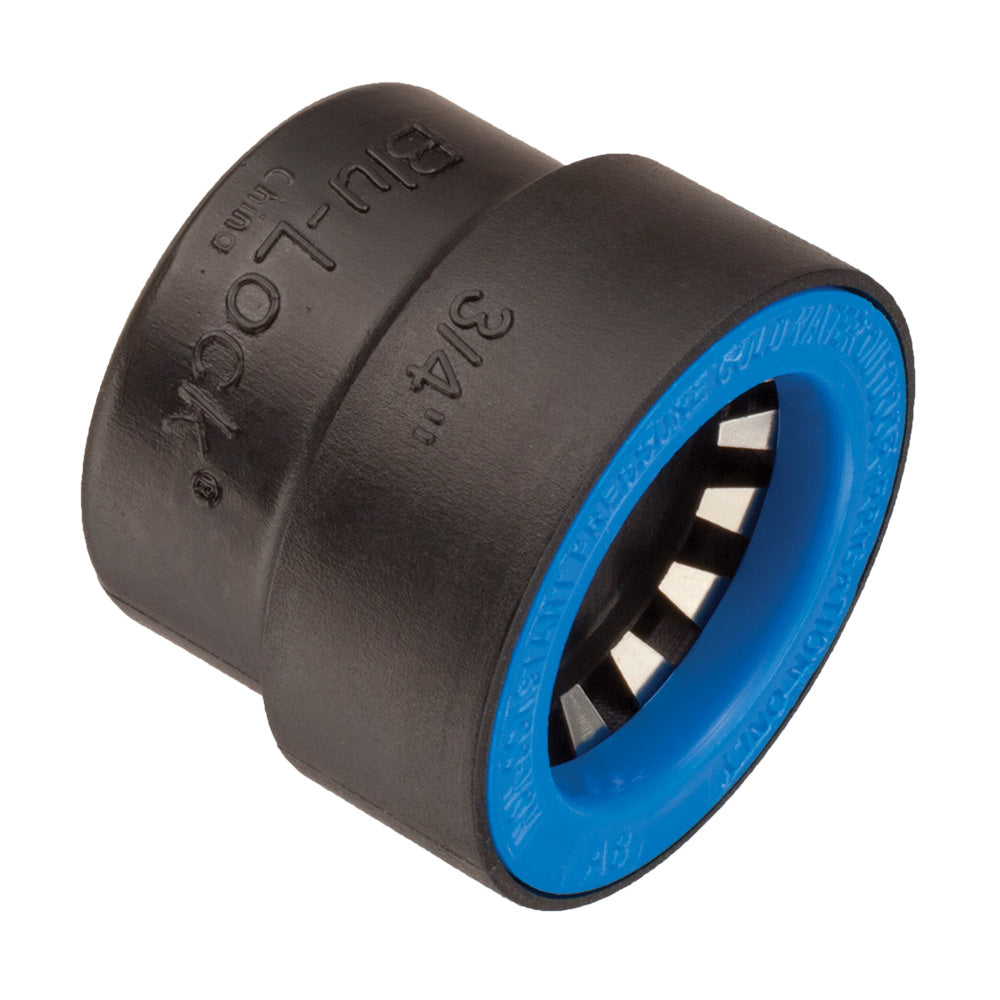

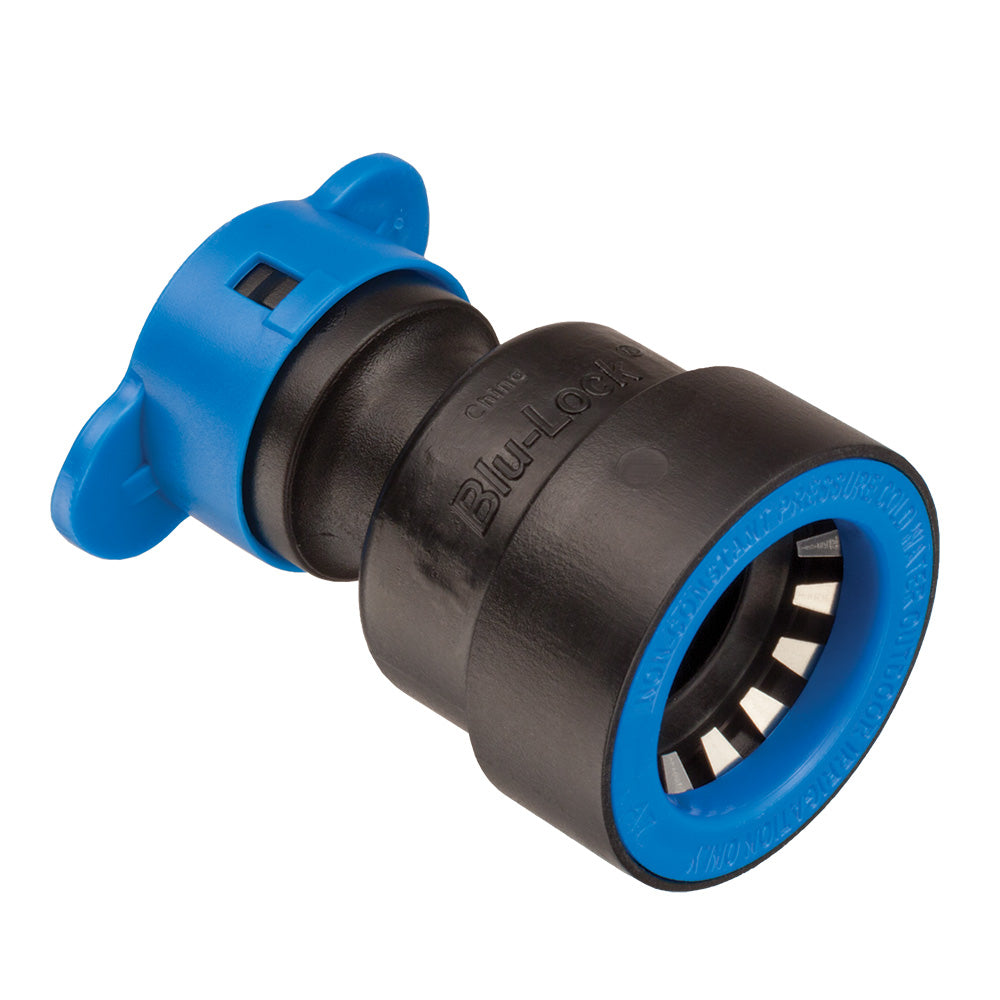

Blu-Lock fittings are a fast, long-lasting, environmentally friendly way to connect flexible polyethylene pipe from an irrigation valve to the heads or drip manifolds in each zone without solvents or clamps. Stainless steel teeth grip the pipe tightly and a special O-ring creates a watertight seal while still allowing for rotation of the fitting after insertion, and you can immediately pressurize the system with no wait time for joints to cure. Built-in removal for 1/2-inch and optional Blu-Lock removal tool for 3/4-inch and 1-inch facilitate easy removal and reuse of fittings. 3/4-inch and 1-inch Blu-Lock fittings are compatible with 100 PSI SIDR 15 and 80 PSI utility HDPE pipe. 1/2-inch Blu-Lock is a proprietary size that can be joined to existing swing pipe systems with 1/2-inch Blu-Lock x Spiral Barb fitting. Use 1-inch and 3/4-inch Blu-Lock with lateral lines to convey water to each zone and 1/2-inch Blu-Lock to provide a rotatable, adjustable “swing pipe” connection at each spray head, impact sprinkler, or gear-drive rotor. Blu-Lock is designed for non-constant pressure (valve-out) cold water outdoor irrigation only. Use PVC-Lock for constant pressure (valve-in) applications. Maximum recommended operating pressure is 100 PSI.
- For making polyethylene pipe connections in sprinkler systems
Stainless steel teeth grip and a special O-ring creates a rotatable, watertight seal
Immediately pressurize the system with no wait time for joints to cure

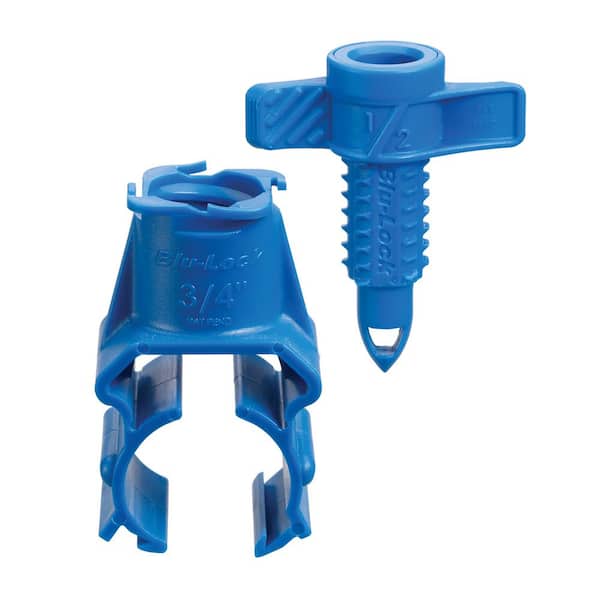

Built-in removal for 1/2-inch and optional tool for 3/4-inch and 1-inch facilitate easy removal and reuse of fittings
For valve out connections only. Use PVC-Lock with Schedule 40 PVC pipe for constant pressure applications
