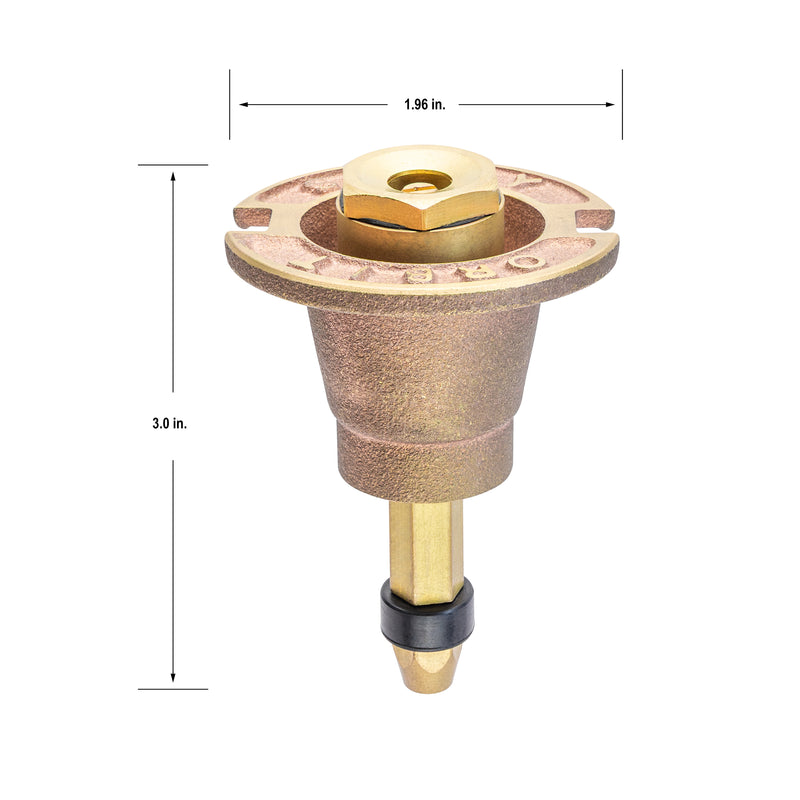

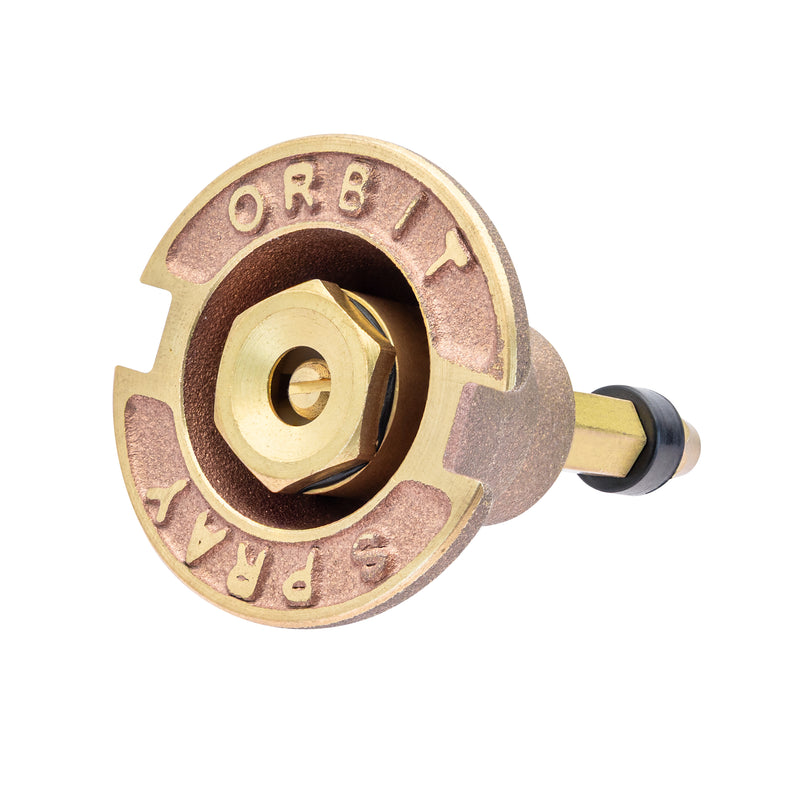

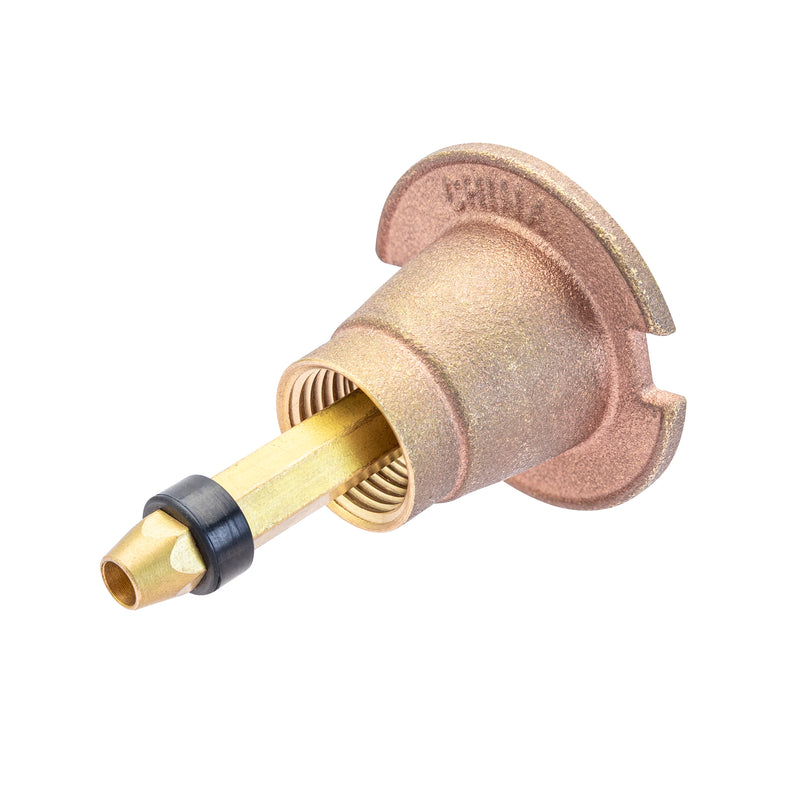

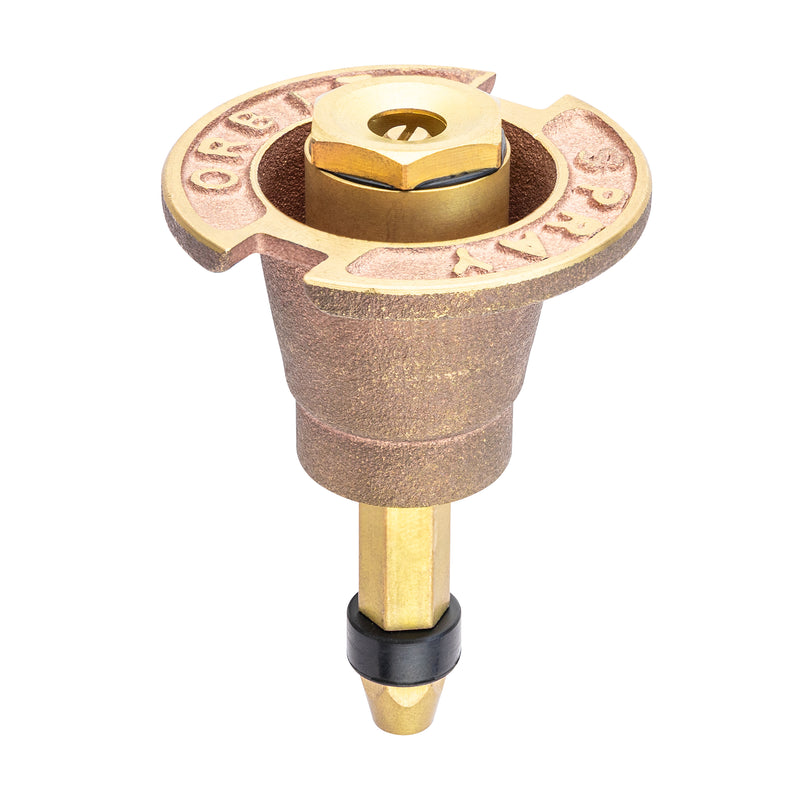

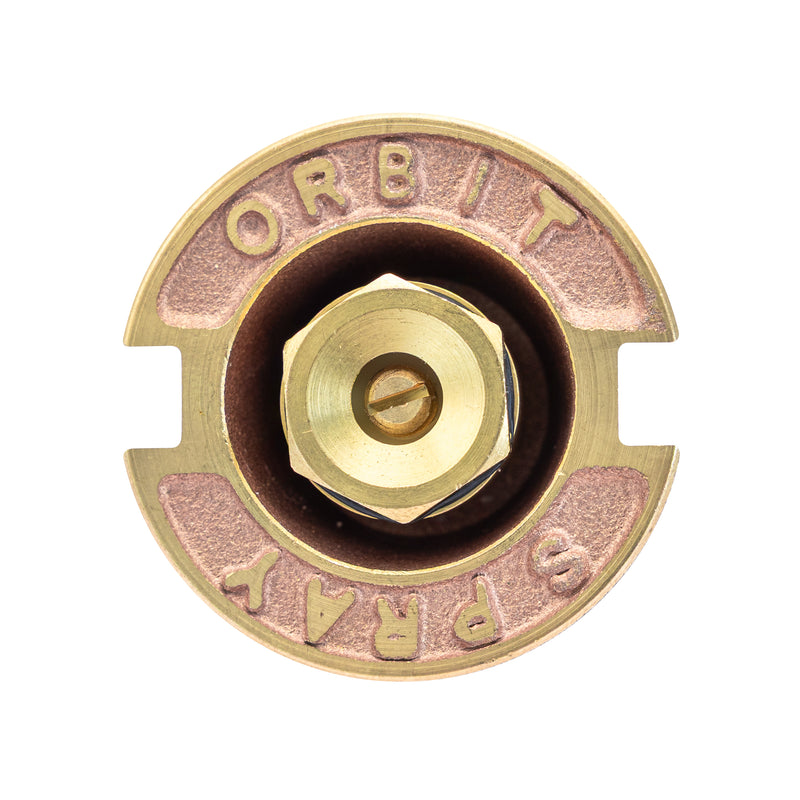

Name: Brass Pop-Up with Full Pattern Nozzle | 54070
Brand: Orbit
SKU: 54070
Price: 5.99 USD
Availability: InStock

Brass Pop-Up with Full Pattern Nozzle | 54070

SKU 54070

DIRECT REPLACEMENT FOR AGING FLUSH HEADS – Restores corner and tight-area coverage in older in-ground systems

PRECISION BRASS NOZZLE – Machined for consistent, even spray across the 90° pattern

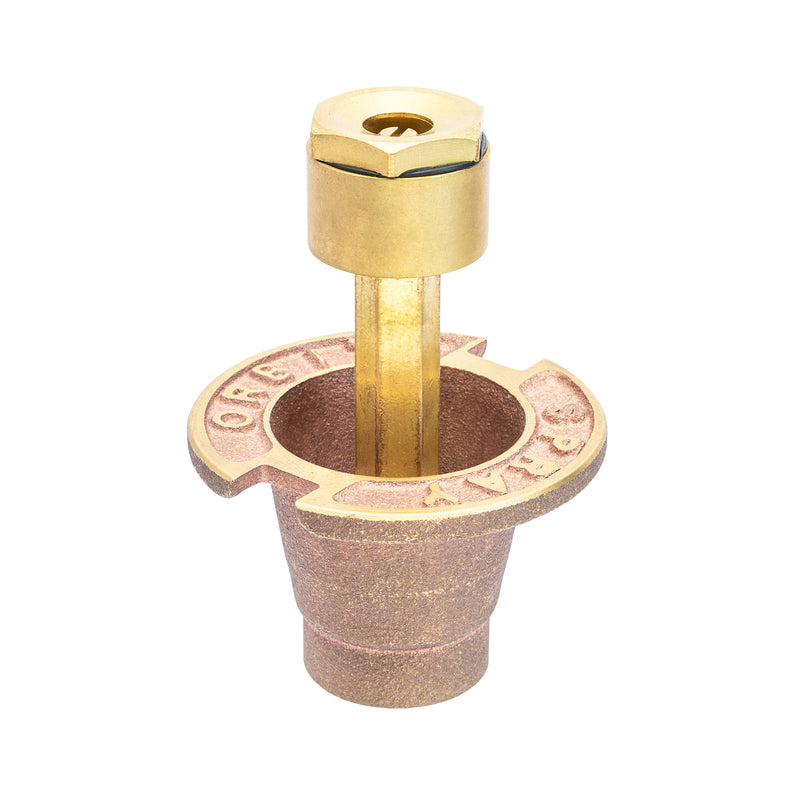

1-1/2 IN. POP-UP HEIGHT – Clears grass for reliable lawn watering, then retracts flush to the ground

ADJUSTABLE RADIUS UP TO 15 FT. – Dial back to 75% of max distance to fit tighter zones

STANDARD 1/2 IN. FPT THREAD – Installs on any 1/2 in. MPT rigid PVC or cut-off riser, no special tools required

UNIVERSAL FIT – Compatible with flush head bodies from Orbit, Champion, and other major irrigation brands

MSRP:

$5.99 - $5.99

$5.99

$5.99 - $5.99

$5.99

Availability:

in stock, ready to be shipped

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

More Details

This Brass Pop-Up Sprinkler Head has a half-circle spray pattern. It is ideal for smaller-sized yards with shallow irrigation systems. The nozzle has an adjustable-flow screw and sprays a distance of 10 Ft. to 15 Ft. radius. The stem rises 1 3/4 In. above the ground and drops into the riser when not in use.

Brass pop-up flush head sprinklers are quite common in systems from 20 or more years ago. These systems are still very serviceable, and this pop-up head is an excellent way to keep them in good shape. The pop-up action gives an extra inch or so of spray height, making it more suitable for grass, while a traditional flush head is more common in above-ground applications such as shrubs and flowerbeds. The brass nozzle includes an adjustment screw that lets you reduce the spray pattern down to 75% of its maximum radius of 15 ft. Pop-up heads have 1/2 in. female pipe threads (FPT) and typically mount on a 1/2 in. male pipe thread (MPT) rigid PVC or cut-off riser. A flush head wrench makes it simple to remove and install heads without extensive digging. The nozzle is easy to replace with a brass full pattern spray nozzle with male threads.

Technical Specifications

Item ID: 54070

UPC: 046878540705

Pattern: Full (360°)

Nozzle Material: Brass

Riser Height: 1-1/2 in. pop-up

Inlet Thread: 1/2 in. FPT

Max Radius: 15 ft.

Radius Adjustment: Down to 75% of max

Operating Pressure: 30 PSI recommended

Pressure Regulation: Non-pressure-regulating (check local code)
