Voyager II® Professional Gear-Drive Rotor Sprinkler 55661

SKU 55661

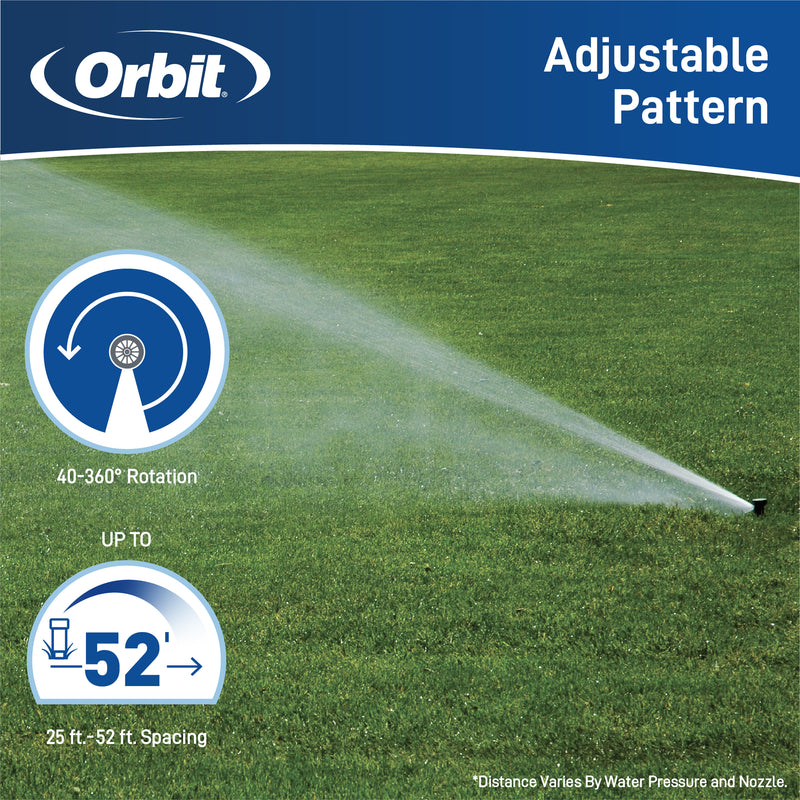

  • Adjustable spray distance from 25 to 52 ft., the longest throw in its class, so fewer heads cover more yard
  • Includes a matched-precipitation nozzle rack with 1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles, plus an 8.0 GPM pasture nozzle
  • Quiet gear-drive operation with all radius and arc adjustments made from the top of the head using the included key
  • Pattern adjusts from 40 to 360 degrees, with radius reduction down to 75% of maximum distance
  • 4 in. pop-up riser height clears tall grass, and low precipitation rate reduces runoff and puddling across soil types
  • Bottom inlet filter helps prevent clogging from sediment and debris
  • 3/4 in. FPT inlet is a compatible drop-in replacement for gear-drive rotors from any major brand
  • Durable ABS can and riser stem with stainless steel internal components for long service life

Product Manual

Original price $15.29 - Original price $15.29
Original price
$15.29
$15.29 - $15.29
Current price $15.29
Availability:
in stock, ready to be shipped

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

More Details

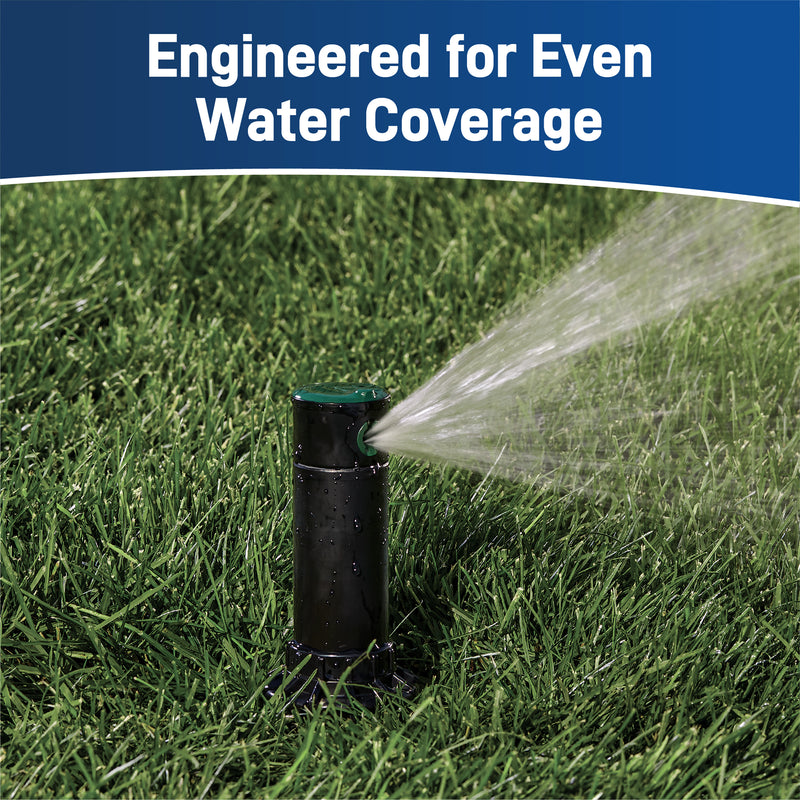

The Voyager II gear-drive rotor is built for landscape areas that need real throw distance, covering up to 52 ft. with a quiet, reliable gear-drive mechanism. Its arc adjusts from 40 to 360 degrees in precise increments, so you can aim water exactly where you want it and keep it off sidewalks, driveways, and siding. The 4 in. pop-up height keeps the nozzle clear of tall grass, and the pre-installed 3-gallon-per-hour nozzle delivers a low 0.24 in. per hour precipitation rate at 35-ft. square spacing — slow enough to soak in rather than run off, even on slopes or clay soil.

Every Voyager II comes with a matched-precipitation nozzle rack right in the box: 1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles, plus an 8.0 GPM pasture nozzle for wide-open spaces. That means even coverage across quarter, half, and full patterns without buying nozzles separately. A radius adjustment screw lets you dial back distance down to 75% of the rated throw, and a bottom inlet filter helps keep the nozzle running clean.

Both radius and arc adjustments happen at the top of the head with the included gear-drive key — no digging required. The can and riser stem are built from high-impact ABS with stainless steel internal components, and the 3/4 in. female pipe thread inlet makes the Voyager II a straightforward replacement for gear-drive rotors from any major brand. Mount it on a 3/4 in. male pipe thread Blu-Lock swing joint for the easiest install, or use standard Funny Pipe fittings, swing fittings, or rigid risers.

Technical Specifications

Item ID: 55661

Spray Distance: 25 to 52 ft. adjustable radius

Arc Adjustment: 40 to 360 degrees

Radius Adjustment: Down to 75% of maximum distance

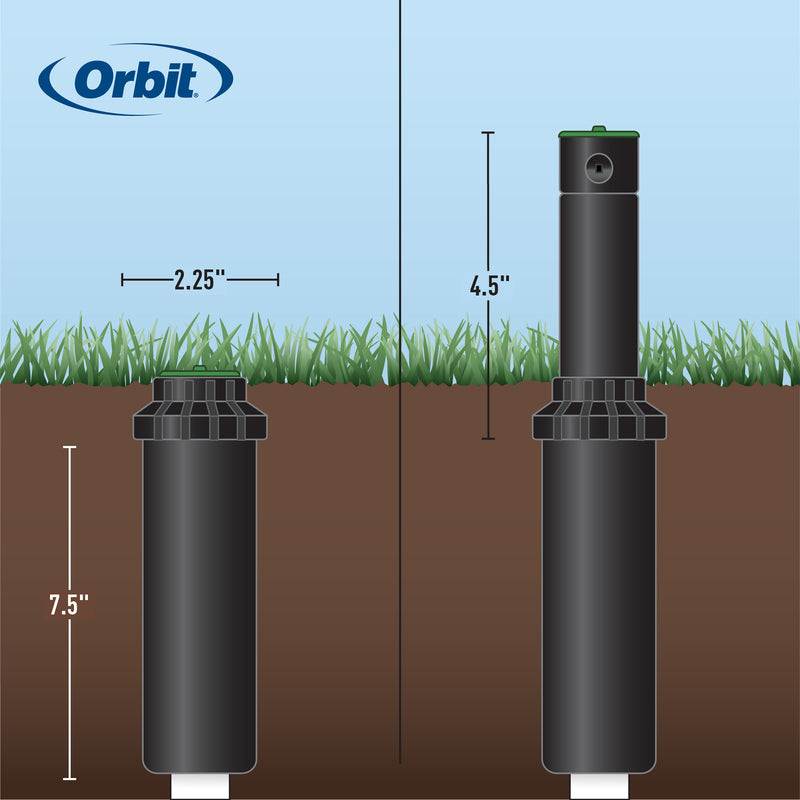

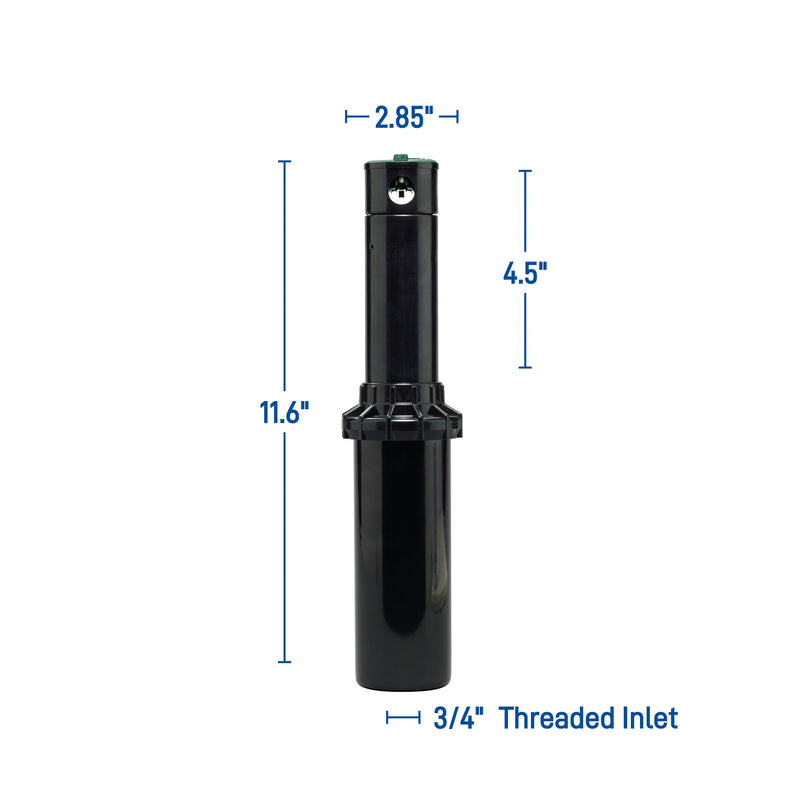

Pop-Up Height: 4 in.

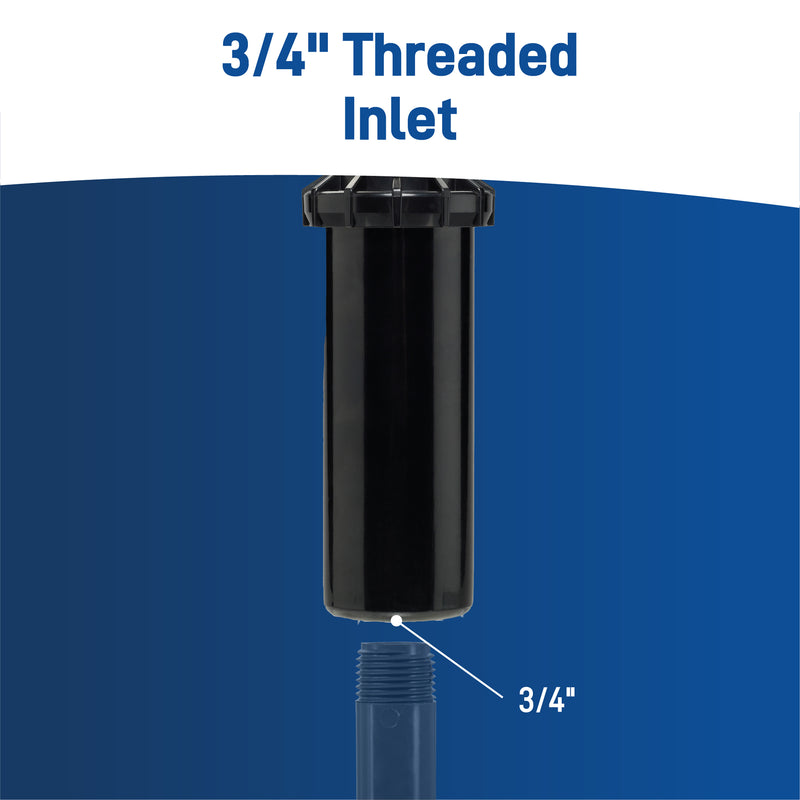

Inlet: 3/4 in. Female Pipe Thread (FPT)

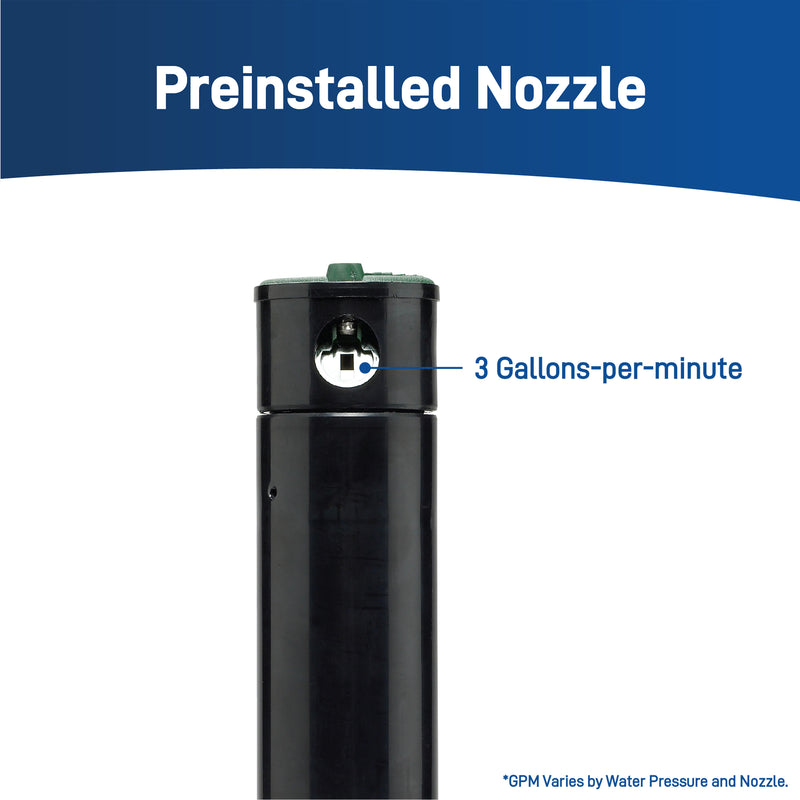

Pre-Installed Nozzle: 3.0 GPM

Precipitation Rate: 0.24 in./hr. at 35-ft. square spacing, 60 PSI

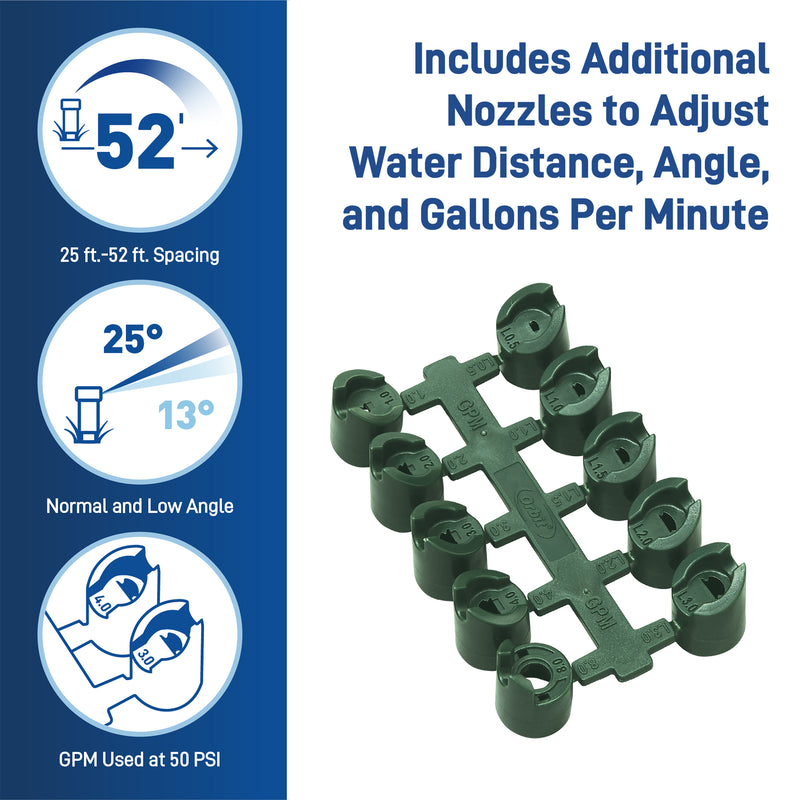

Included Nozzle Rack: 1.0, 2.0, 3.0, and 4.0 GPM standard and low-angle nozzles; 8.0 GPM pasture nozzle

Recommended Operating Pressure: 60 PSI

Body Material: High-impact ABS

Internal Components: Stainless steel

Filtration: Bottom inlet filter

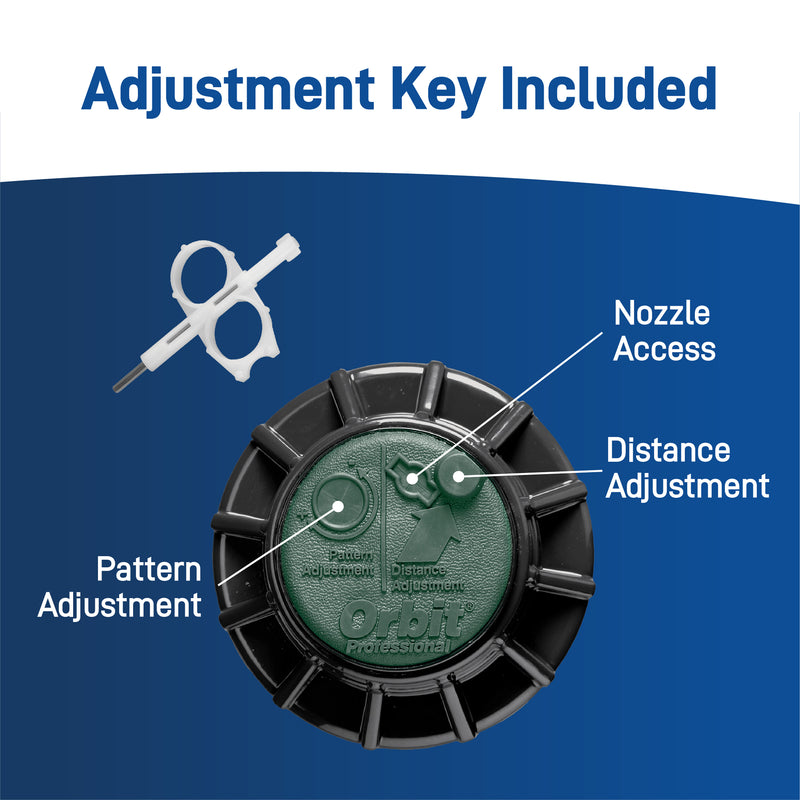

Adjustment Tool: Gear-drive rotor key (included)

Mounting Compatibility: 3/4 in. MPT Blu-Lock combination swing joint, Funny Pipe fittings, swing fittings, and rigid risers

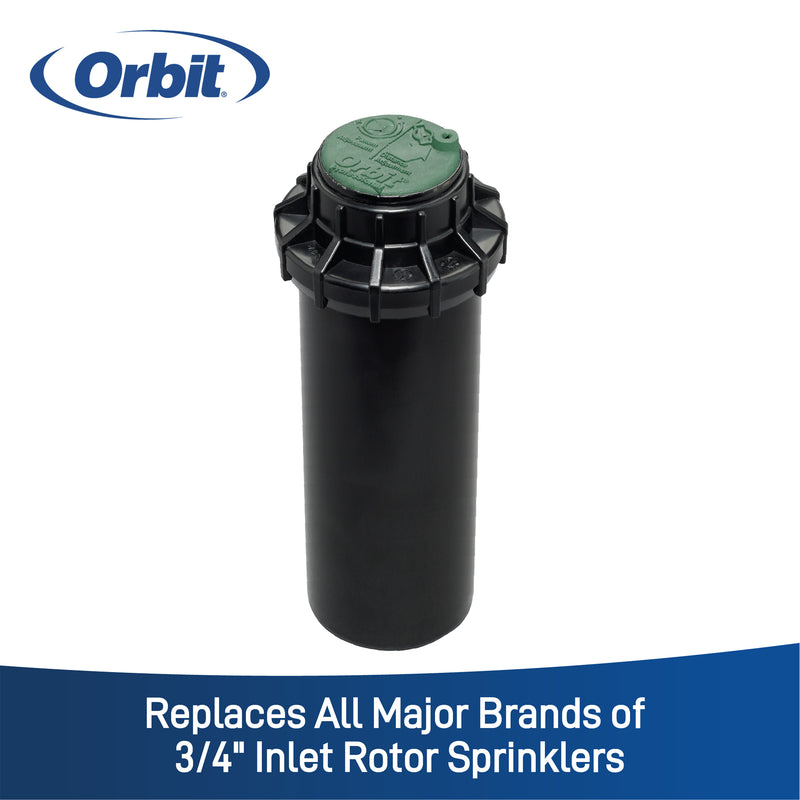

Compatibility: Direct replacement for gear-drive rotors from Orbit, Hydro-Rain, and other major brands

Shipping information

We offer free standard shipping on orders over $50. Most orders ship within 3–5 business days (placed before 12 PM MT, Mon–Fri). A tracking number will be emailed once your order ships, and you can also check order status in your account. Note that some oversized or heavy items (large pipe lengths, valve boxes, pumps) may not qualify for free shipping. [View full shipping details →]

Returns & warranty

Products purchased through Orbitonline.com are eligible for a refund within the first 30 days of the original order placement. We accept returns on a case-by-case basis. Accepted returned products must be new and unused and in their original packaging. We reserve the right to verify the condition of all returned products before determining refund or exchange eligibility. Orders above $500.00 may be subject to return freight charges and a restocking fee.

  • 5 stars: 32 (82%)
  • 4 stars: 3 (8%)
  • 3 stars: 1 (3%)
  • 2 stars: 1 (3%)
  • 1 star: 2 (5%)
M
Mukut S.
Sprinkler

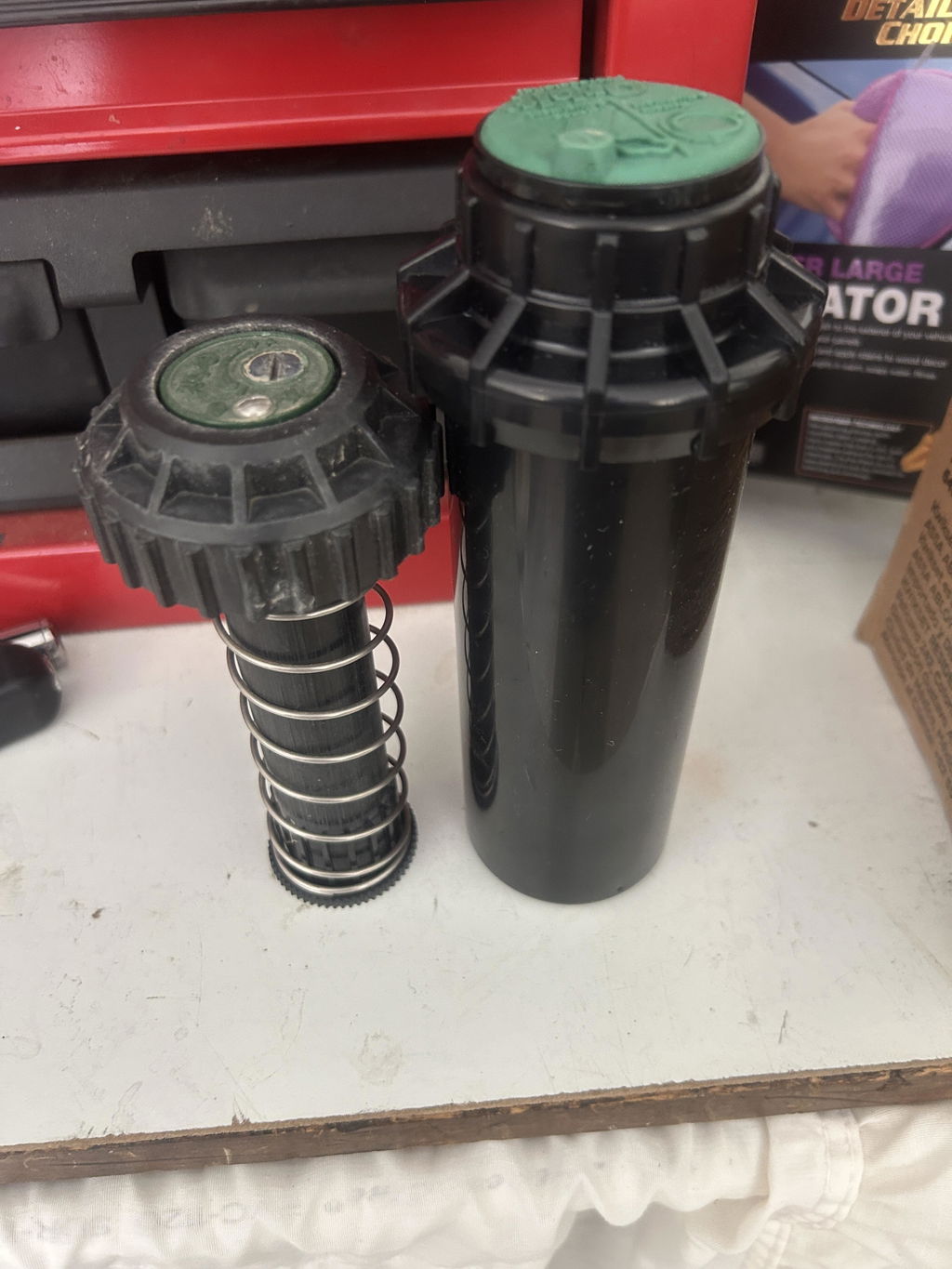

My Sprinkler diameter was smaller than what I received.

Thank you for letting us know about your order. Someone from our Customer Care team will reaching out to you with further assistance regarding this. Have a great rest of your day.

D
Don B.
Gear-drive sprinkler, 55661

Thank you for the warranty replacement of my gear-drive sprinkler.

J
Jonathan W.
The customer service person was outstanding

The customer service person was outstanding. Extremely helpful at every point of a complex transaction. You are fortumate to have this calibre of customer service.

J
Jon C.
Great product

Great product, really like its adjustability. This was a warranty request, as I had a couple inexplicably fail. The Orbit Service Team was spot on, in addressing the issue(s), and following through. Extremely satisfied with the product and Service!

A
Anonymous
Wanted #55067 received #55662 alleged to be same part renumbered. Not! Now what?

Phoned to order part # 55067

Thank you for letting us know about the wrong product being received. Our Customer Care team is happy to help with any order issues that may be encountered and with finding the correct product for your needs. We can be reached by phone at (800)488-6156 or online at support.orbitonline.com for assistance. Have a great rest of your day.

S
Sam W.
Great sprinkler

Great sprinkler head

T
Terry N.B.
Nice

Nice

A
Anonymous
Good Job Orbit Team

Good Job Orbit Team, You Rock!

P
Prairie S.
Nice replacements for the Toro heads that have been giving us problems

Nice replacements for the Toro heads that have been giving us problems.

C
Christa W.
Great sprinkler! Worked so

Great sprinkler! Worked so well!

D
Dan B.
Upset with your system. Well it first started with when this sprinkler from the orbit website

Well it first started with when I went to purchase this sprinkler from the orbit website,said by clicking on and putting in my email and address my first purchase I would get 20% off. So clicked on it and it showed up at my checkout. And as soon as I hit purchase it was gone and couldn’t get it back. Then next day I called orbit that I didn’t get my 20% when I purchased it and they said I get an email within 24 hrs. It was the same code I put in but I had already purchased the sprinklers. All I wanted was my 20% off my bill. Then yesterday we went and installed them and only 12 of the 13 I ordered worked. Dont know who to talk to but support didn’t help with my discount. Very disappointed. Dan Behrens

Thank you for sharing your experience with being unable to use a discount on your order and about one of your Voyager Sprinklers not working. Our Customer Care team is happy to further discuss your concerns and to help with finding the best working solution for your needs. We can be reached by phone at (800)488-6156 or online at support.orbitonline.com for assistance. Have a great rest of your day.

J
John D.
Perfect replacement for a broken

Perfect replacement for a broken one

J
JULIO O.
It excellent product

It excellent product, and working as expected

C
Chris W.
works

works great!

Y
Yunus P.
Thanks you for your support

Friendly business

G
Gary W.
Great

Great

e
eddie
I have using ben using these Voyager sprinkler heads for many years

I have using ben using these Voyager sprinkler heads for many years.. They are, in fact, the only sprinkler heads I use. They have my highest recommendation for any irrigation system.

A
Andrew T.
I have 24 heads all orbit running every day best

I have 24 heads all orbit running every day best head I have ever had Miss delivered two on an order I had orbit reimbursed me with two more offer to pay for the two that got lost they told me to keep those two as a gift so paid for two and got four great company will always use them

A
Anonymous
I tried a number of replacement sprinkler heads replacing 25 year old Orbits

I tried a number of replacement sprinkler heads replacing 25 year old Orbits. The only ones I found excellent were the Orbit voyageur 2 heads. Replaced 15 of them.

A
Anonymous
Orbit

Orbit is our favorite brand of sprinklers

B
Brent
Speedy delivery and great warranty

I was pleased with the quick delivery of the replacement Voyager sprinklers covered by Orbit's warranty.

A
Andrew R.
These heads are the best out there

These heads are the best out there. 62' + range and 3/4" hookup.

J
James G.
Ganzer

Great product

A
Alvin R.
Poor Quality, difficult warranty process

Placed 12 Orbit heads, I have had to replace 5 in just 2 months. Very poor quality. The website does not offer a phone number to call for assistance. The only place a phone number is available is on the product packaging. Once you get the customer service person in the phone you will find they are trained to deny your claim. I am no longer an Orbit customer.

T
Tom K.

Efficient use of water

D
David R.
grate

have used them for 15 years thay work grate

C
Chad V.
Low-End Products

Orbit Heads are moderate to low quality. My system uses 36 Voyager II heads. Each year I need to replace 4-6 heads because they no longer rotate.
If you buy Orbit, keep your shovel handy.

Thank you for sharing your experience with replacing our Voyager Sprinklers due to them no longer rotating. We're glad to know how our Customer Care team was able to assist you with this and ask that you reach back out to us if any assistance may be needed in the future, or for help with other product concerns. Have a great rest of your day.

S
Sal C.
Best sprinkler heads on the market!

These are under a doubt, the best sprinkler heads on the market. I’ve been using these sprinkler heads manufactured by orbit for more than 25 years and they never let me down.

J
John D.

Hello, This was a replacement unit for one that leaked between the ****-on collar and pop-up shaft. I pulled off the collar and checked the seal, it looked fine, but still leaked. The new one works fine right out of the box.

F
Fred G.

Orbit took immediate care of my concerns

R
Rory

If this product is mounted above ground on a riser is there a problem with freezing as far as the housing goes?

Orbit

Yes, having the sprinklers open to freezing temperatures can have adverse affects.
