The Complete Guide to Drip Irrigation: Choosing the Right Tubing for Maximum Efficiency

Drip irrigation is one of the most flexible and effective ways to water your garden while conserving resources. The drip irrigation system slowly applies water directly to your plant's root zone, allowing you to water more plants with significantly less water. Since water isn't sitting on top of your soil, you'll see a notable reduction in weeds and pests. Users of garden drip irrigation also enjoy substantial savings—reducing annual water usage by up to 50%.

Drip irrigation offers ultimate flexibility with limitless possibilities for installing an effective system. However, while this freedom is liberating for many gardeners, it can feel daunting for others. The key to success lies in choosing the right tubing for your specific needs. Below, we explain the three types of drip irrigation tubing and when to use each one, plus how modern Drip-Lock technology can eliminate common installation headaches.

Why Choose Drip-Lock Technology?

Before diving into tubing types, it's worth understanding how Drip-Lock fittings can transform your installation experience. Traditional barb fittings often cause hand pain from forcing connections and require additional tools like clamps. Drip-Lock's innovative push-to-connect technology features stainless steel teeth that grip tubing tightly while a special O-ring creates a watertight seal. The built-in removal collar allows for easy reconfiguration and reuse of fittings, including end-of-season disassembly for compact winter storage. Most importantly, you can immediately pressurize your system with no wait time—making installation faster and less frustrating.

Three Types of Drip Irrigation Tubing

1. Distribution Tubing

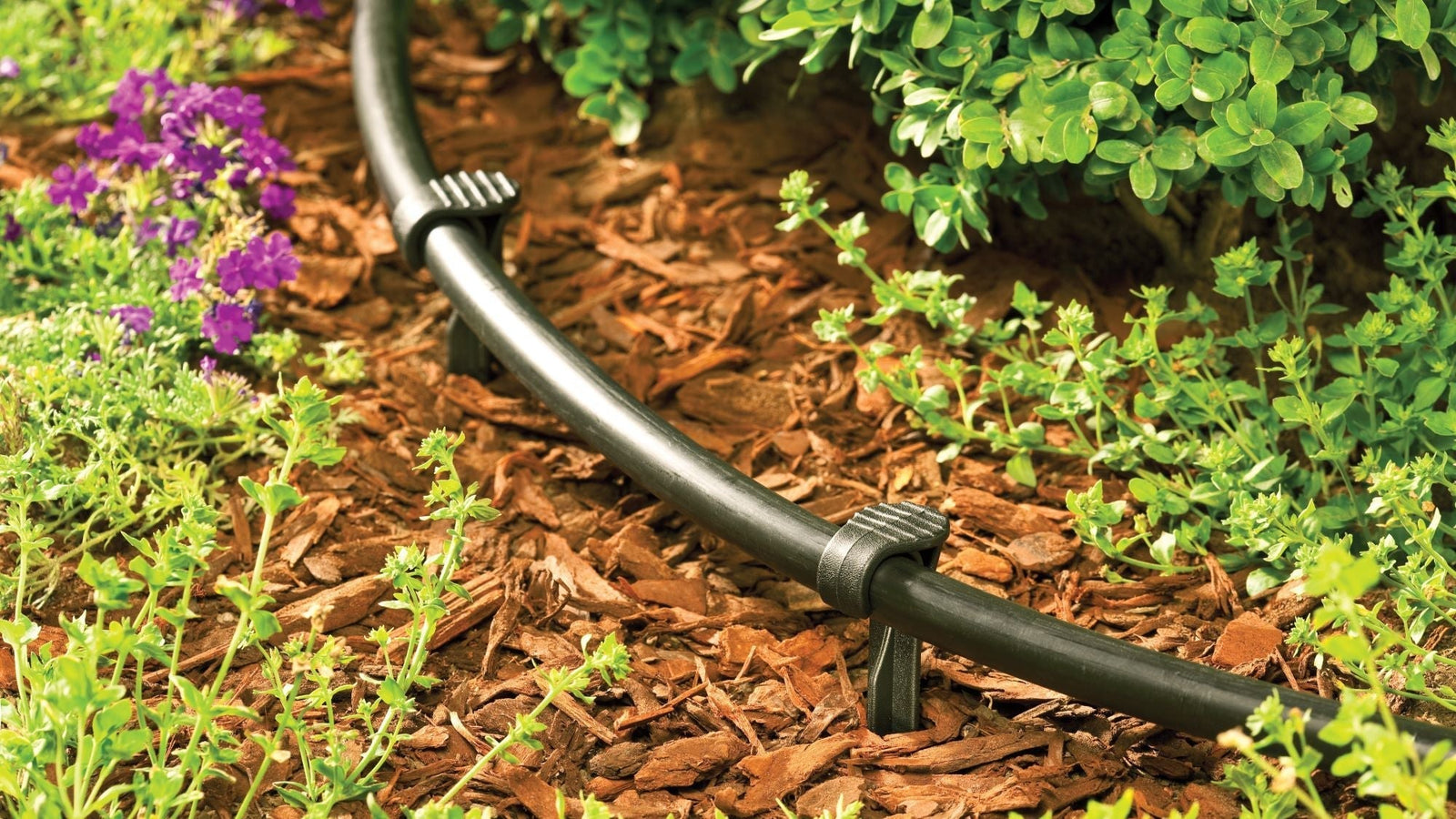

Distribution tubing serves as the backbone of your drip irrigation system. This tubing has no holes, making it ideal for carrying water to plants. The most effective approach uses 1/2-inch distribution tubing as your mainline, with 1/4-inch distribution tubing branching off to individual plants.

Best for:

• Large gardens with widely spaced plants
• Creating main water distribution lines
• Connecting different irrigation zones
• Trees and large shrubs requiring individual attention

Pro tip: Install an emitter on the end of each 1/4-inch tube to regulate water pressure and ensure consistent flow rates.

2. Emitter Tubing

Emitter tubing is your go-to solution for evenly spaced plants with uniform watering needs. This drip hose comes with pressure-compensating emitters pre-installed every 12 inches, delivering exactly 1 gallon per hour at each point. The pressure-compensating feature ensures even water distribution regardless of elevation changes or pressure variations in your system.

Best for:

• Vegetable gardens with row plantings
• Flower beds with consistent spacing
• Shrub borders and hedgerows
• Perennial gardens with similar water requirements
• Tree rings

Installation advantage: Emitter tubing dramatically reduces setup time since you don't need to punch holes or install individual emitters.

3. Soaker Tubing

Soaker tubing features a unique porous design that allows water to seep out along its entire length, creating a gentle soaking effect. This drip hose is perfect for areas where plants are closely spaced and benefit from continuous moisture distribution.

Best for:

• Dense plantings and ground covers
• Newly seeded areas requiring gentle watering
• Container gardens and raised beds
• Areas where you want to maintain consistent soil moisture

Layout tip: Space soaker tubing 6 to 12 inches apart in a grid pattern for optimal coverage in garden boxes and raised beds.

Making Installation Easier with Drip-Lock

Traditional drip irrigation installation often involves wrestling with stubborn barb fittings that cause hand fatigue and require special tools. Drip-Lock technology eliminates these pain points:

• No special tools required: Push-to-connect design installs without clamps, torches, or excessive force
• 80% faster installation: Revolutionary stainless steel retaining ring grips from the outside for quick, easy fitting installation
• 25% stronger connections: Superior holding power compared to traditional barb fittings
• Easy reconfiguration: Built-in removal collars allow you to modify your system as your garden evolves
• Immediate pressurization: No waiting for joints to cure—test your system right away

Choosing the Right Tubing for Your Garden

The drip irrigation tubing you select can make a huge difference in creating the most effective system for your plants while maximizing water savings. Consider these factors:

For large, established gardens: Start with 1/2-inch distribution tubing as your main line, then branch to specific areas using the appropriate secondary tubing type.

For uniform plantings: Emitter tubing provides consistent, measured watering with minimal installation effort.

For intensive planting areas: Soaker tubing delivers gentle, continuous moisture perfect for dense gardens and sensitive plants.

For mixed gardens: Combine different tubing types within a single system—use distribution tubing for your main lines, emitter tubing for row crops, and soaker tubing for dense planting areas.

Key Installation Tips

1. Start with a plan: Map out your garden areas and water requirements before purchasing materials
2. Use pressure regulation: Install a pressure regulator to maintain optimal 25 PSI for consistent emitter performance
3. Consider automation: Pair your drip irrigation system with a smart timer for hands-off watering
4. Plan for expansion: Drip-Lock fittings make it easy to modify and expand your system as your garden grows
5. Winterize properly: The easy-disconnect feature of Drip-Lock fittings simplifies seasonal system breakdown

Conclusion

Creating an efficient garden drip irrigation system doesn't have to be complicated or physically demanding. By choosing the right drip irrigation tubing for each area of your garden and leveraging modern Drip-Lock technology, you can install a professional-quality system that saves time during installation and delivers years of reliable, water-efficient performance.

Ready to start your drip irrigation project? The combination of quality tubing and innovative connection technology will help you create a system that's both effective for your plants and easy on your hands.
