Voyager® & Voyager II® Gear-Drive Rotor Sprinkler Nozzle Rack 55071

Name: Voyager® & Voyager II® Gear-Drive Rotor Sprinkler Nozzle Rack 55071
Brand: Orbit
SKU: 55071
Price: 4.59 USD
Availability: InStock

Item ID:

For uniform, matched-precipitation gear-drive rotor sprinkler coverage
Matched precipitation for quarter, half, three-quarter, and full patterns

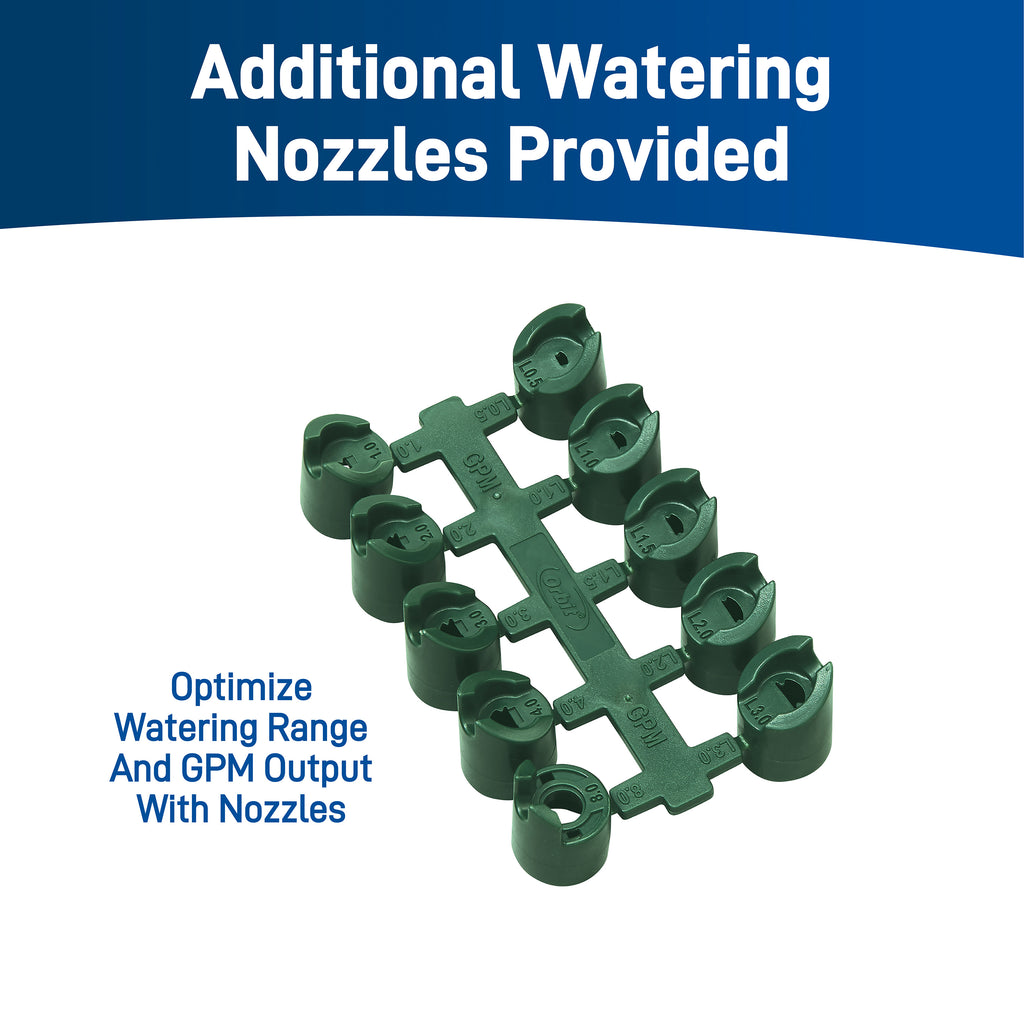

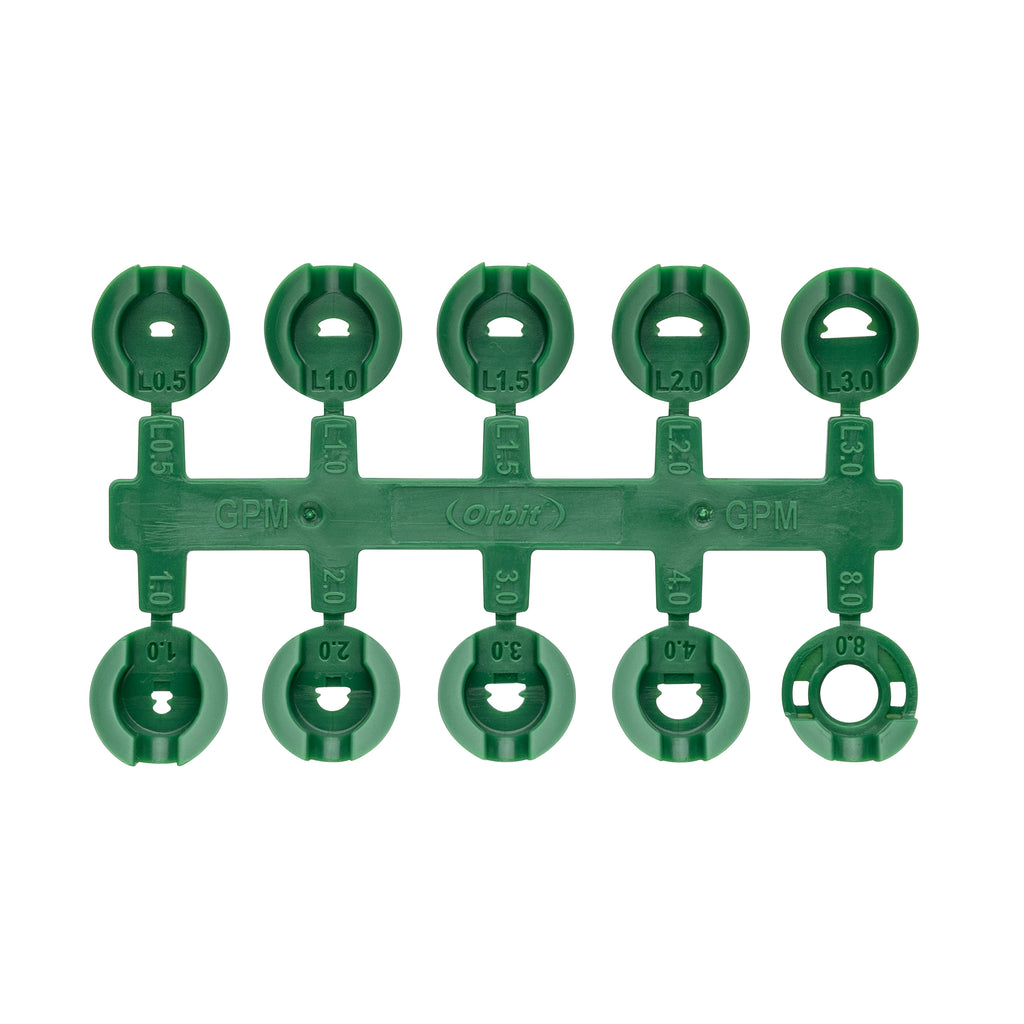

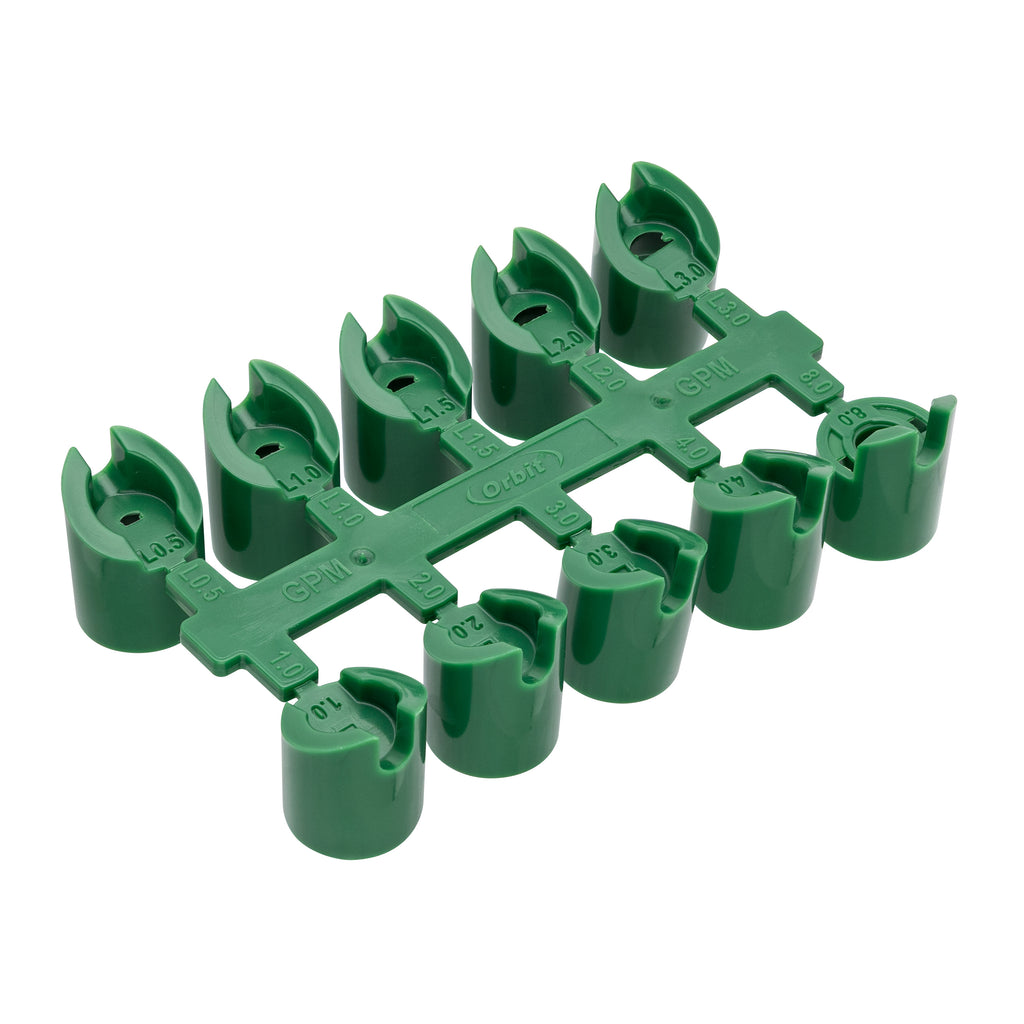

Nozzles feature a unique keyway design to ensure highly uniform watering Includes 1.0, 2.0, 3.0, and 4.0 GPM standard nozzles with radius of 35 ft.
Includes 0.5, 1.0, 1.5, 2.0 and 3.0 low-angle nozzles with a throw of 25 ft.
Includes 8.0 GPM nozzle for single head coverage in a pasture or paddock
Compatible with Voyager, Voyager II, and Hunter PGP gear-drive rotors

$4.59

In stock

Free returns on all eligible orders.

You have 30 days to request a return. All discontinued items are exempt.

The Voyager and Voyager II gear-drive rotor sprinkler nozzle rack is engineered for highly uniform, matched-precipitation sprinkler coverage. The Voyager and Voyager II come standard with a pre-installed 3-gallon-per-minute (GPM) nozzle which results in a full-pattern precipitation rate of 0.24 in. per hour at 35-ft. square spacing at 60 PSI. This very low rate reduces the risk of runoff or puddling for many soil types and conditions. The concept behind the nozzle rack is to achieve matched precipitation rates, as measured in inches per hour, across quarter, half, three-quarter, and full patterns. The nozzles feature a unique keyway design to ensure highly uniform close-in and far-out watering.

The rack includes 1.0, 2.0, 3.0, and 4.0 GPM standard nozzles with a throw of 35 ft. at 40 PSI and 0.5, 1.0, 1.5, 2.0 and 3.0 low-angle nozzles with a throw of 25 ft. at 40 PSI. The low-angle nozzles have the same precipitation rate as Saturn III® and IV nozzles which allows you to mix Saturn's and Voyagers in the same zone. Each rack includes an 8.0 GPM pasture nozzle for single head coverage in a pasture or paddock. For outdoor irrigation with cold water only.

We offer free standard shipping on orders over $50. Most orders ship within 3–5 business days (placed before 12 PM MT, Mon–Fri). A tracking number will be emailed once your order ships, and you can also check order status in your account. Note that some oversized or heavy items (large pipe lengths, valve boxes, pumps) may not qualify for free shipping. [View full shipping details →]

Products purchased through Orbitonline.com are eligible for a refund within the first 30 days of the original order placement. We accept returns on a case-by-case basis. Accepted returned products must be new and unused and in their original packaging. We reserve the right to verify the condition of all returned products before determining refund or exchange eligibility. Orders above $500.00 may be subject to return freight charges and a restocking fee. [View full Returns details →]

Frequently asked questions

Some questions and answers are automatically generated.

What nozzle sizes and flow rates are included?

The rack includes standard nozzles in 1.0, 2.0, 3.0, and 4.0 GPM (with 35 ft radius), low-angle nozzles in 0.5, 1.0, 1.5, 2.0, and 3.0 GPM (with 25 ft throw), and one 8.0 GPM nozzle for single head coverage.

Will these nozzles work with my Voyager sprinkler head?

Yes, these nozzles are compatible with Voyager, Voyager II, and Hunter PGP gear-drive rotors. However, some customers report they may require additional components like screw or flow control parts that do not come in the rack.

Can I buy individual nozzles instead of the full rack?

Based on customer feedback, this product is sold as a complete rack and individual nozzle quantities are not currently available for purchase separately.

Do the nozzles provide uniform watering coverage?

Yes, the nozzles feature a keyway design and matched precipitation for quarter, half, three-quarter, and full spray patterns to ensure uniform watering across coverage areas.

.jdgm-product-faqs-widget__mount { display: none; } .jdgm-product-faqs-ssr { clip: auto; clip-path: none; height: auto; overflow: visible; /* Back in flow and back to being the real widget: the details rows have to toggle. */ pointer-events: auto; position: static; white-space: normal; width: auto; }

5 stars: 3 (50%)
4 stars: 0 (0%)
3 stars: 1 (17%)
2 stars: 1 (17%)
1 star: 1 (17%)

I'm only interested in one head size the two gallon

I'm only interested in one head size the two gallon. But I have to buy a whole rack just to get one of those. I would like if it's possible to be able to buy multiple quantities of one 2 gallon nozzle.

Thank you for taking the time to leave your review and feedback for your interest in the 2 GPM nozzle in our Voyager Nozzle Rack. We currently do not sell this specific nozzle separately on our store site. Our Customer Care team is happy to further discuss any of your product questions or concerns, and we can be reached by phone at (800)488-6156 or online at support.orbitonline.com. Have a great rest of your day.

Fast service and quality parts.

Great selection all work great

Great selection all work great. I have been using them for 25+ years and have never been disappointed. They come with my highest recommendation along with the Orbit sprinkler heads.

Was what I needed, was fast getting here, thanks...

Turned out I couldn’t use them without the screw/flow control orbit doesn’t carry replacement screws so they’re useless, $9 down the drain next time rain bird every body carries them and all the parts
