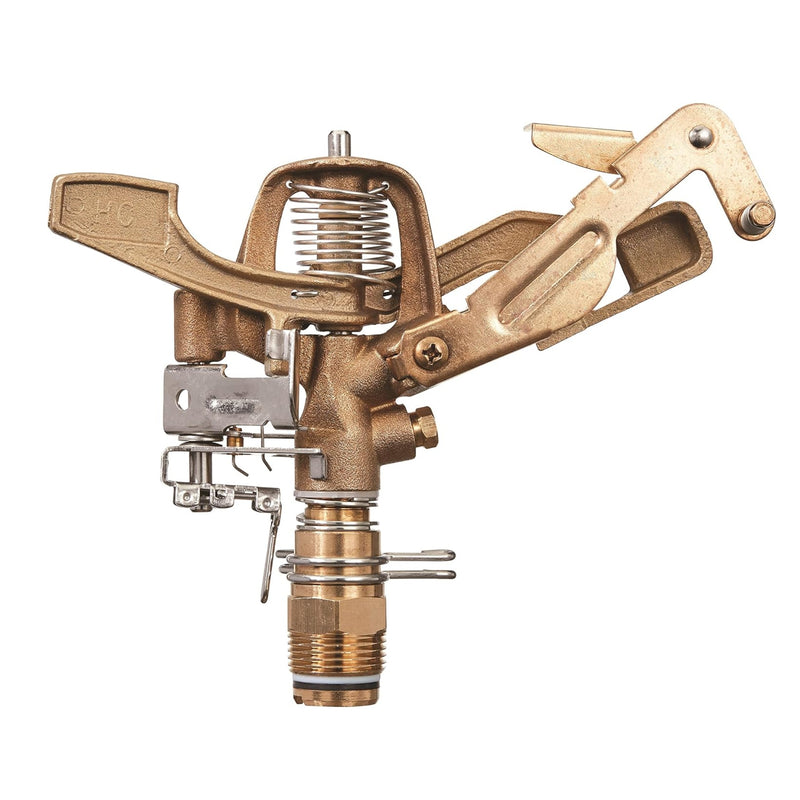

3/4 in. MPT Brass Impact Sprinkler Head | 55016

3/4 in. MPT Brass Impact Sprinkler Head | 55016

$39.99
Skip to product information
3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
  • 3/4 in. MPT Brass Impact Sprinkler Head | 55016
3/4 in. MPT Brass Impact Sprinkler Head | 55016

3/4 in. MPT Brass Impact Sprinkler Head | 55016

Item ID: 55016

Dual Nozzle Coverage: 3/32 in. nozzle waters close-in areas while 3/16 in. nozzle reaches far distances, ensuring even watering across entire pattern

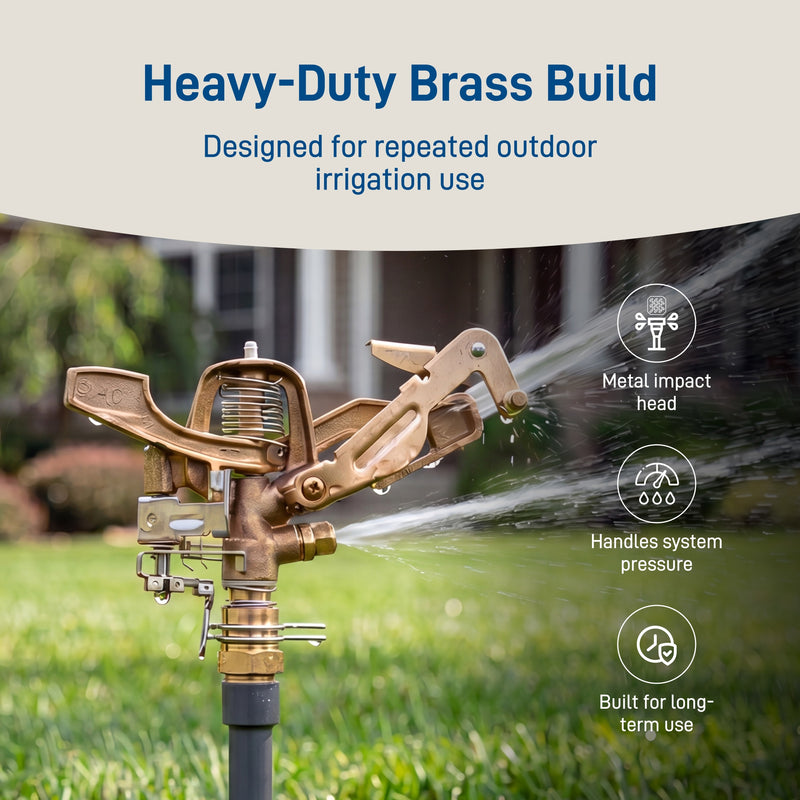

Heavy Duty Brass Construction: All-metal design with brass body and weighted arm ensures durability, weather resistance, and years of reliable use

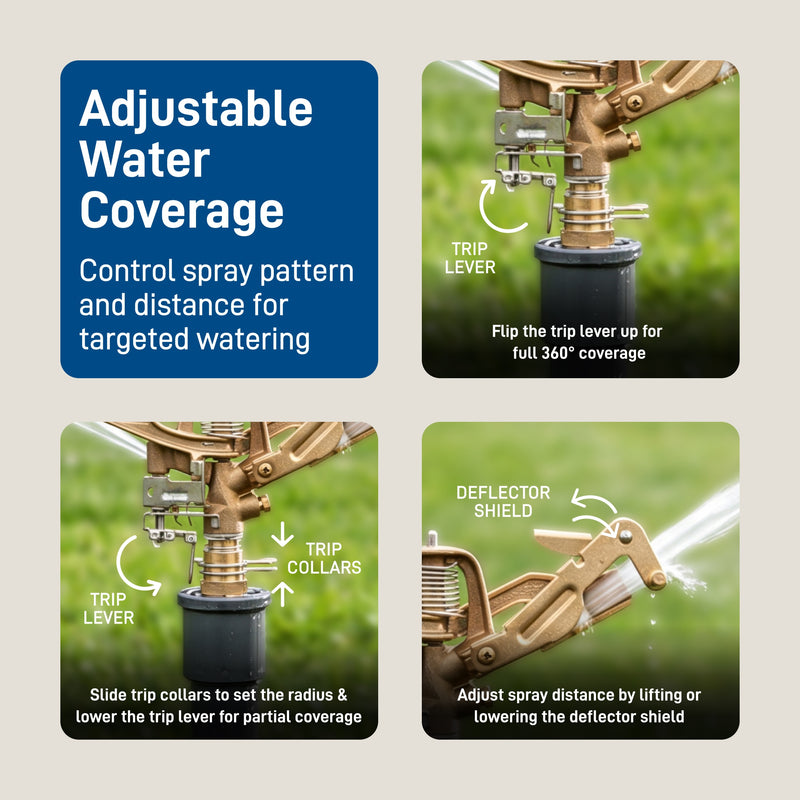

Adjustable Pattern and Distance: Set from 30 to 360 degrees with arc stops; deflector shield adjusts radius from 18 to 35 ft. at 60 PSI pressure

Versatile Pressure Range: Functions at 20 to 80 PSI; optimal performance at 60+ PSI for lawns, gardens, pastures, and agricultural applications

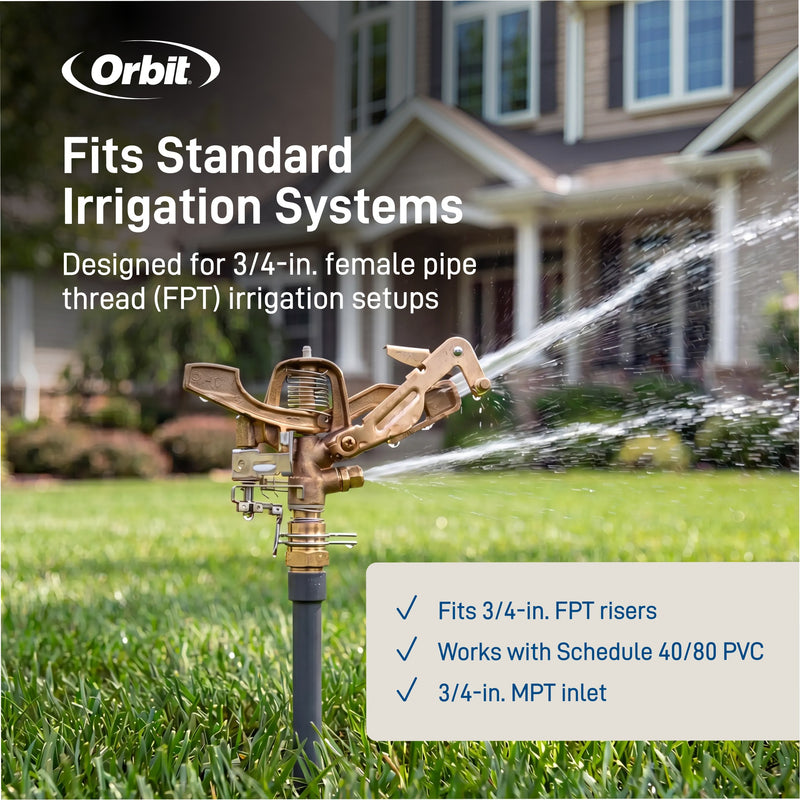

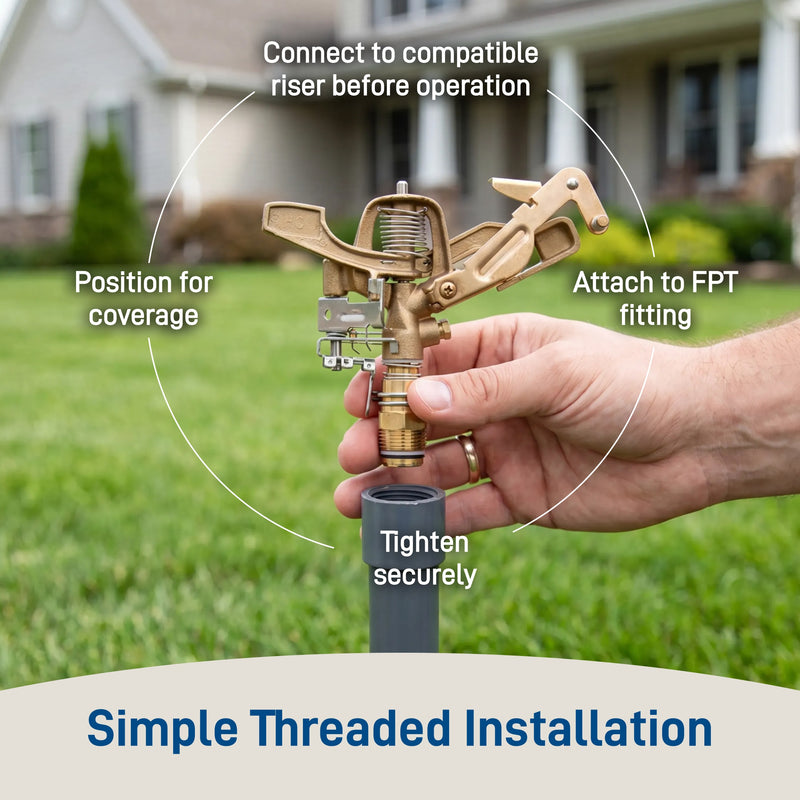

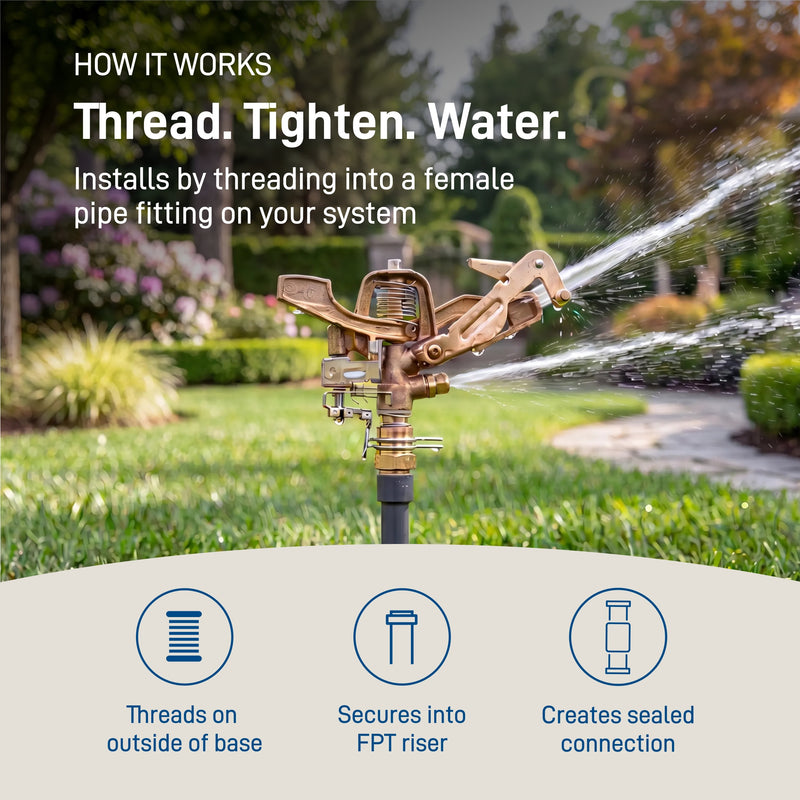

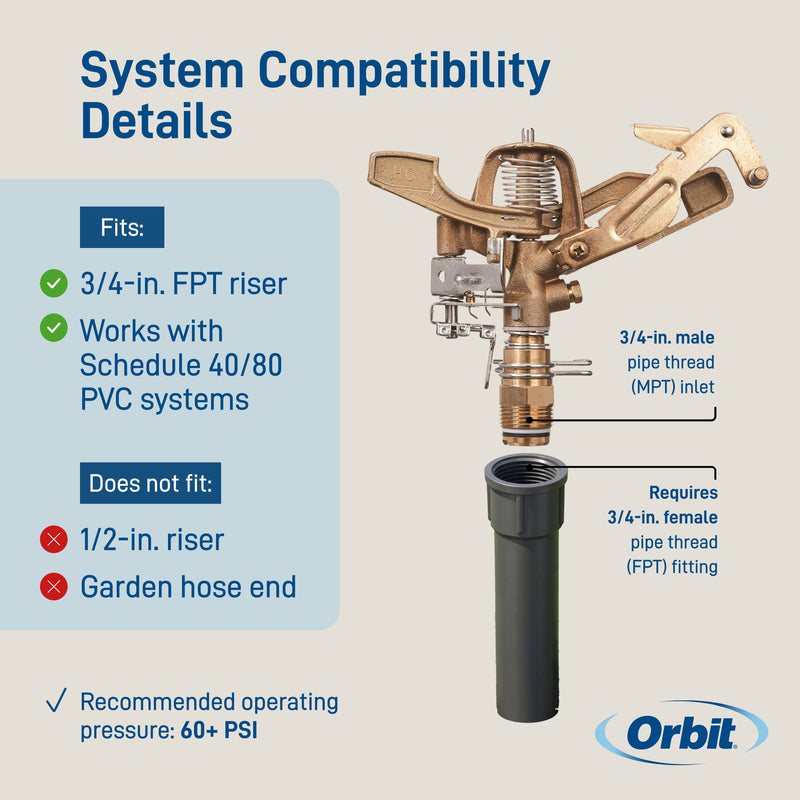

Easy Installation: 3/4 in. male pipe thread (MPT) connects to standard FPT couplings, risers, or Schedule 40/80 PVC for underground systems
$39.99
In stock

Free returns on all eligible orders.

You have 30 days to request a return. All discontinued items are exempt.

Product Description:

A potential weakness of a single nozzle impact sprinkler is its inability to provide even coverage. Dual nozzles solve this problem. The brass impact with dual nozzles has a 3/32 in. nozzle that provides close-in coverage while a 3/16-nozzle that provides far-out coverage, ensuring even watering. Brass construction makes this sprinkler very durable. A common application for this impact is a larger lawn area or pasture with single head coverage. The heavy brass arm ensures slow rotation and long distance under higher pressures. A spray deflector shield and adjustment screw allow for precise radius adjustment from 35 ft. down to 18 ft. at typical operating pressure of 60 PSI. It has 3/4 in. male pipe threads (MPT) at the inlet which allow you to mount it on top of a Schedule 40 or 80 female pipe thread (FPT) coupling.

We recommend at least 60 PSI of available pressure for the 3/4 in. brass impact to deliver the best performance. If you have less than 60 PSI of pressure you may want to use a 1/2 in. impact with a single nozzle instead. For outdoor irrigation use with cold water only.
More Details
Technical Details
Shipping

We offer free standard shipping on orders over $50. Most orders ship within 3–5 business days (placed before 12 PM MT, Mon–Fri). A tracking number will be emailed once your order ships, and you can also check order status in your account. Note that some oversized or heavy items (large pipe lengths, valve boxes, pumps) may not qualify for free shipping. [View full shipping details →]
Return policy

Products purchased through Orbitonline.com are eligible for a refund within the first 30 days of the original order placement. We accept returns on a case-by-case basis. Accepted returned products must be new and unused and in their original packaging. We reserve the right to verify the condition of all returned products before determining refund or exchange eligibility. Orders above $500.00 may be subject to return freight charges and a restocking fee. [View full Returns details →]

Frequently asked questions

Some questions and answers are automatically generated.

Does this sprinkler head work reliably out of the box?
Most customers report the sprinkler functions well when properly installed, though some have received defective units. Orbit's customer support has responded positively to replacement requests when issues occur, and several reviewers note satisfaction after receiving replacement units under warranty.
Will this fit my existing irrigation system?
The 3/4 in. MPT (male pipe thread) connection is standard for underground irrigation systems and works with major brands like Rain Bird and Hunter. However, at least one customer received an incorrect size, so verify you need 3/4 in. MPT before ordering to ensure compatibility with your setup.
How far does the spray pattern reach?
According to the product description, the dual-nozzle design delivers coverage from 25 to 48 feet radius depending on pressure and settings. The adjustable deflector shield lets you fine-tune the spray radius down from 18 feet for smaller areas.
Can I adjust the spray pattern direction?
Yes, arc adjustment stops allow precise pattern control from 30 to 360 degrees without needing tools, so you can customize coverage to fit your lawn or garden layout.
