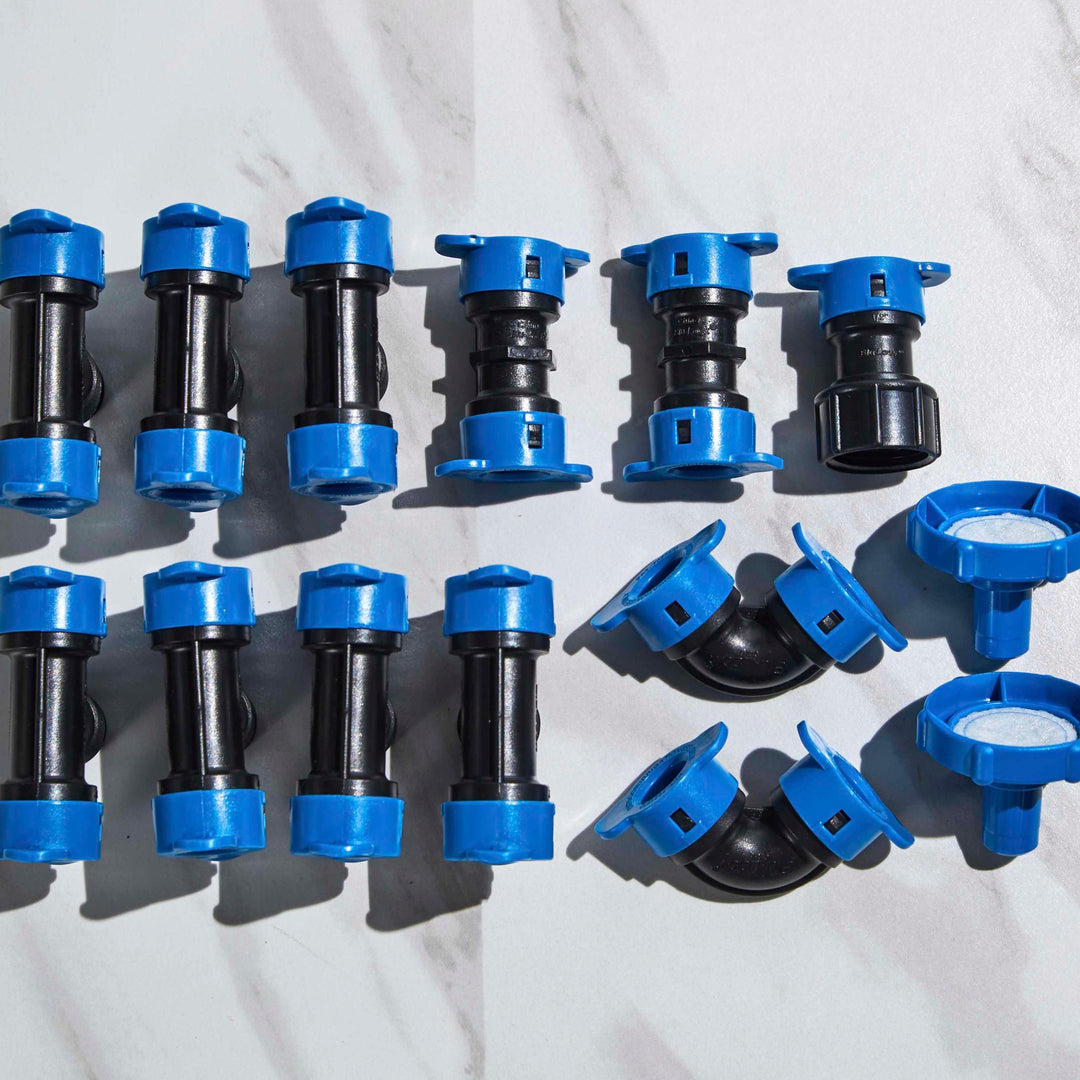

Blu-Lock fittings

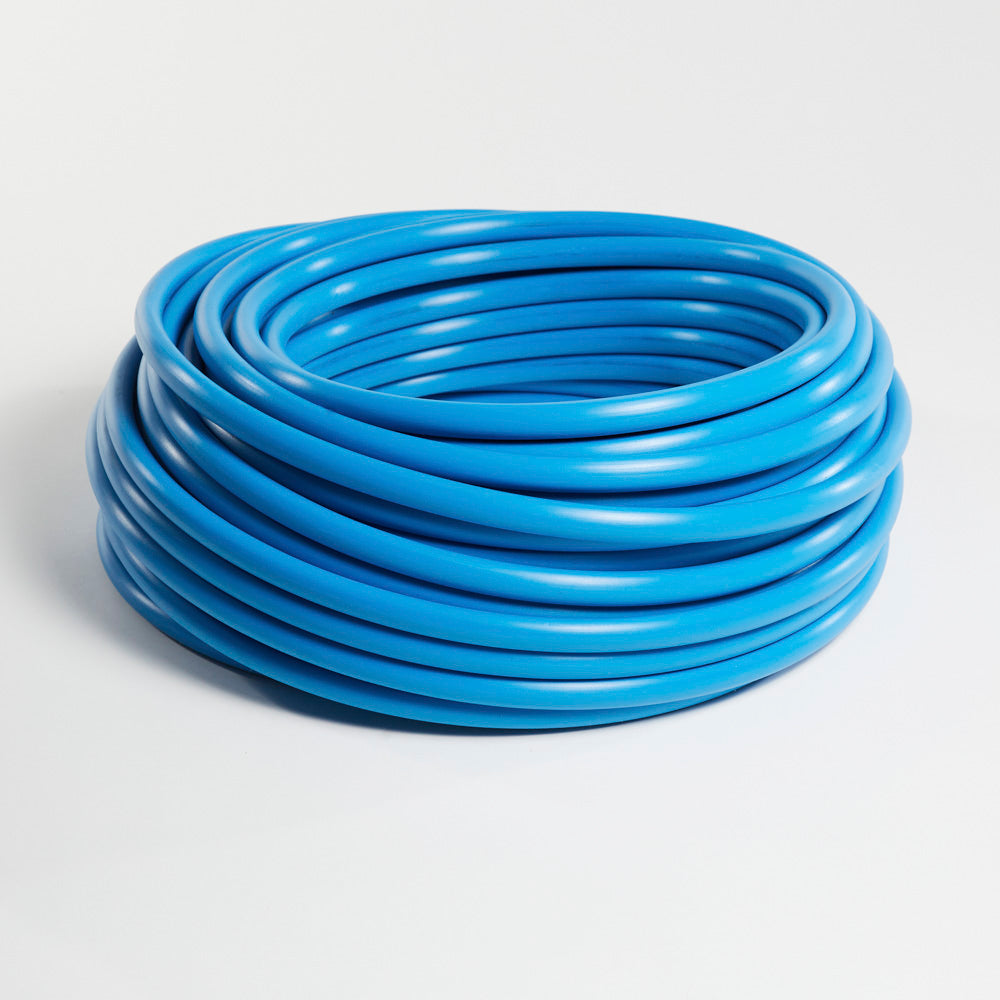

125' X 1/2" Blue-Lock® Pipe

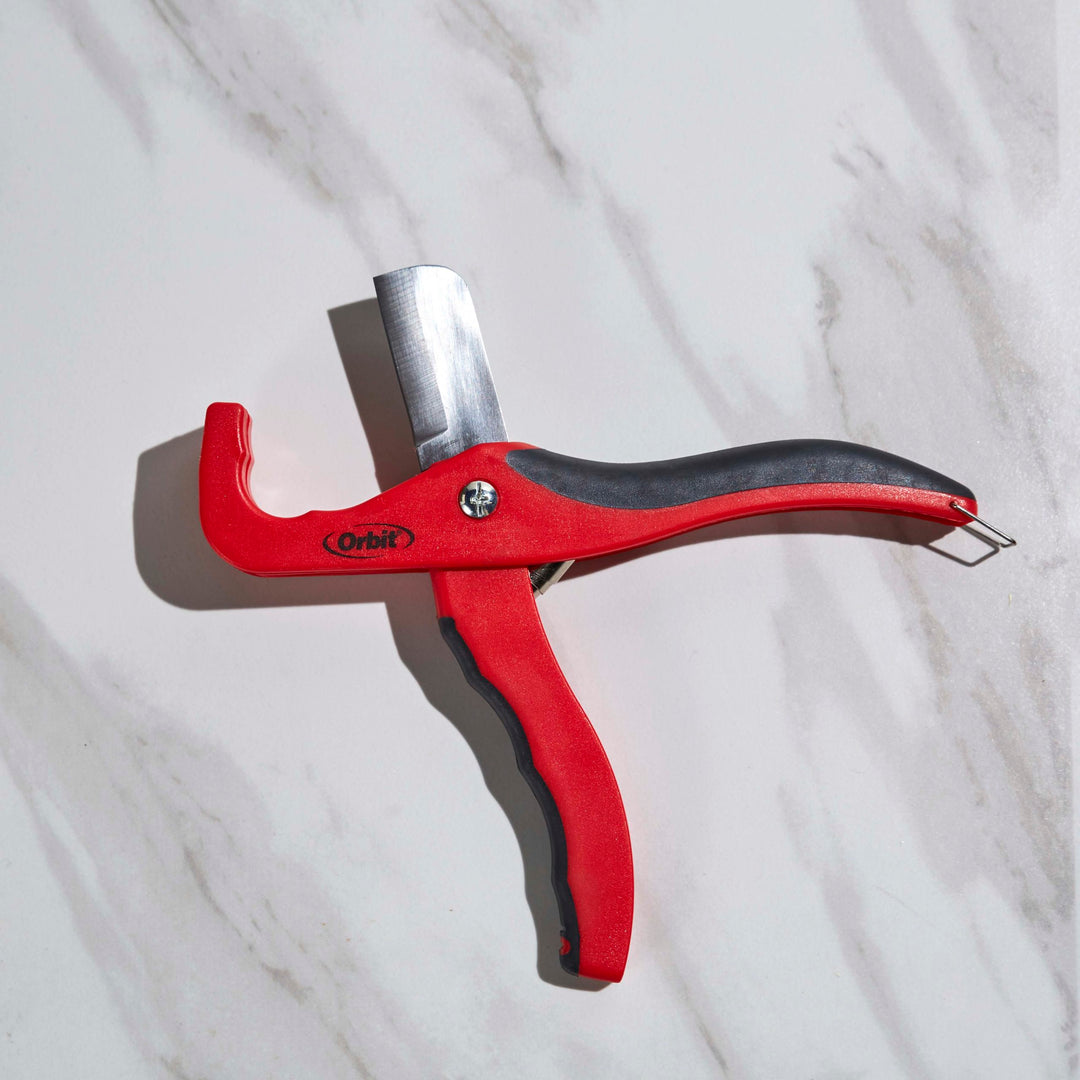

Pipe cutter

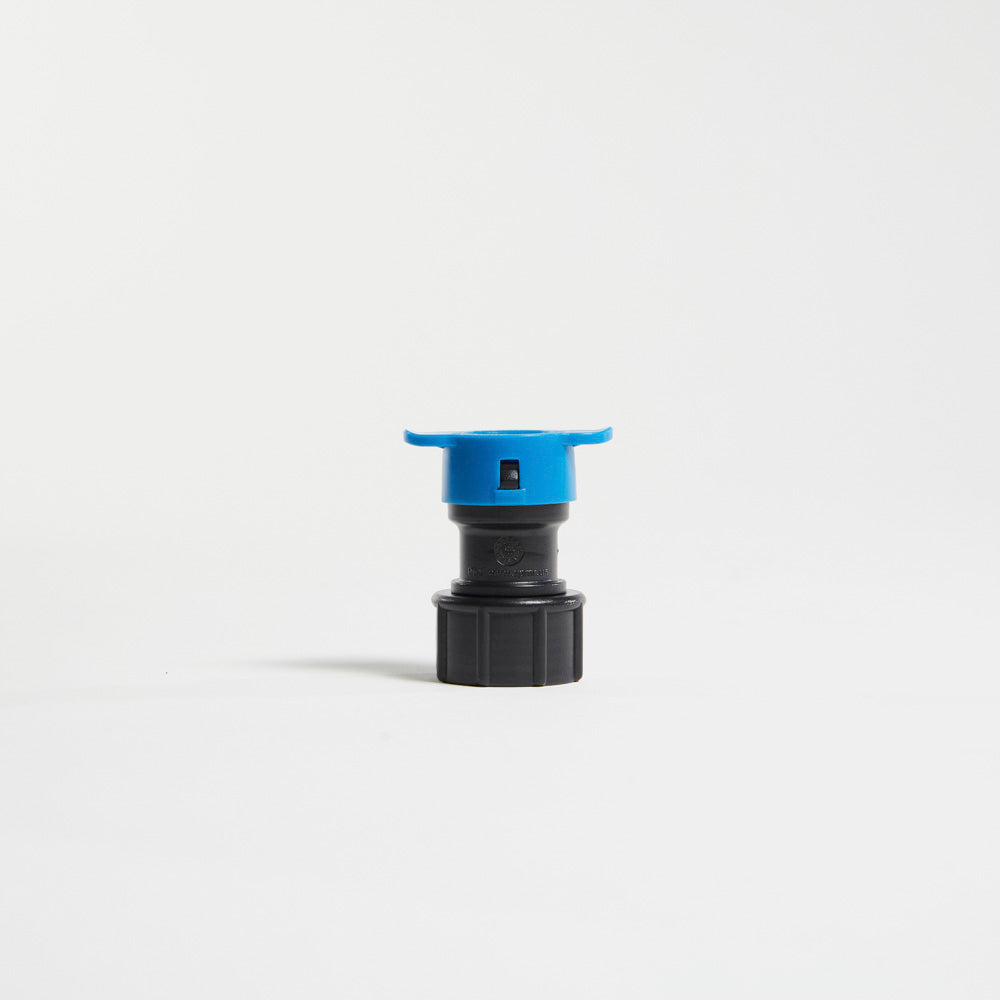

Hose to 1/2" Blu-Lock ® adapter

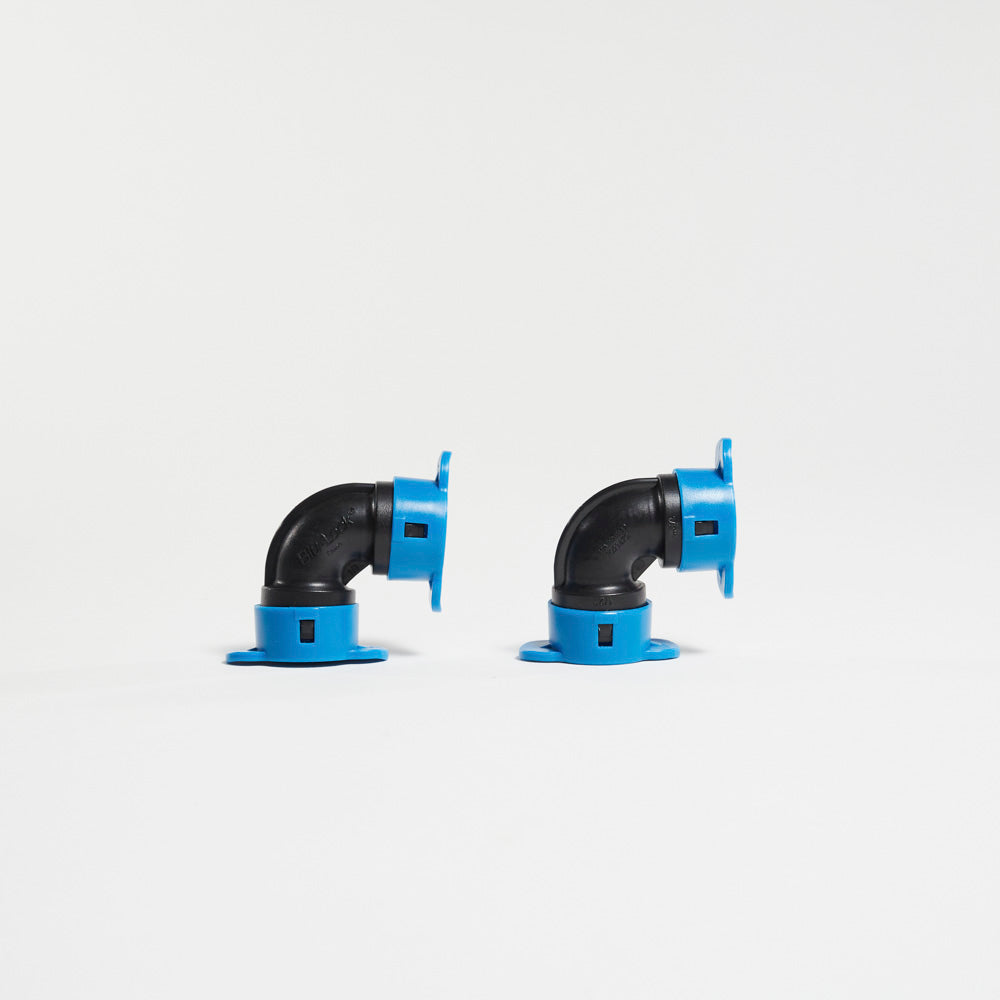

Blu-Lock® elbow
Blu-Lock® Tee
Blu-Lock Coupling

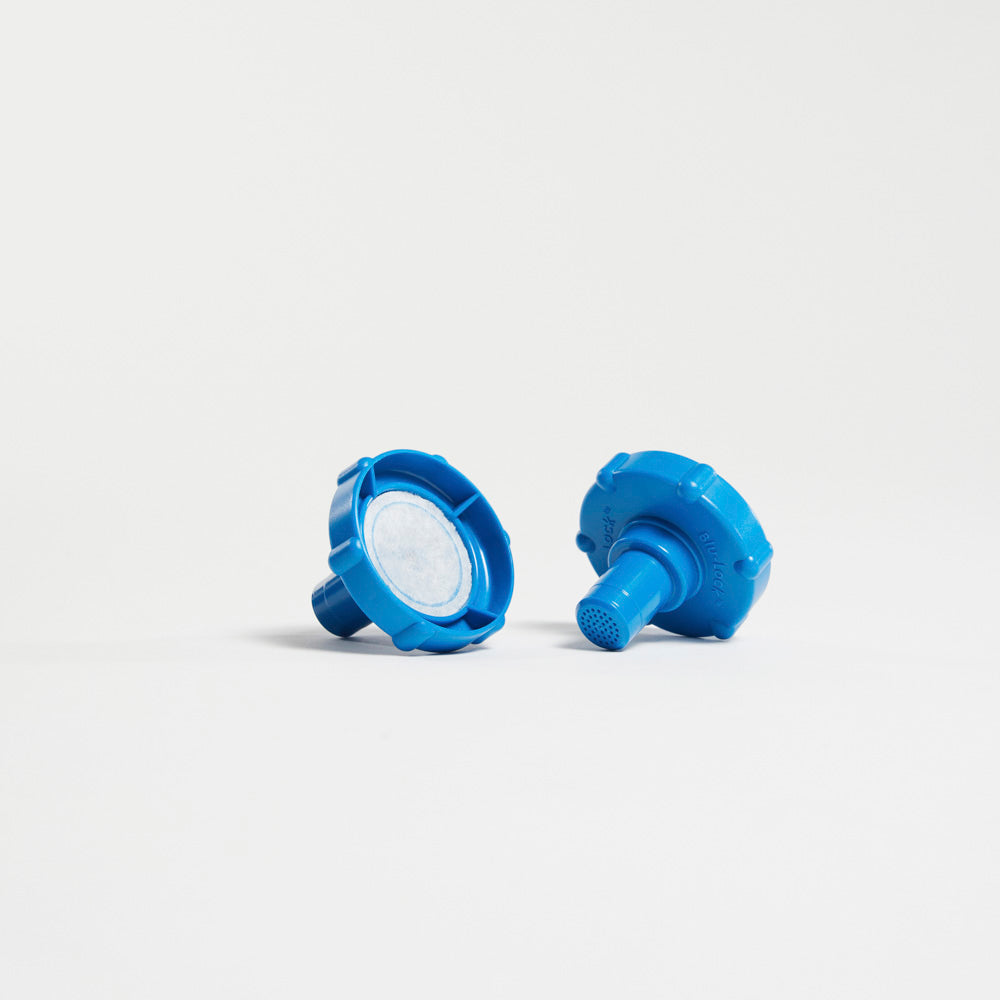

Blu-Lock Auto-Drain
Pressure Guage
Pipe Cutter

Part #: 50022

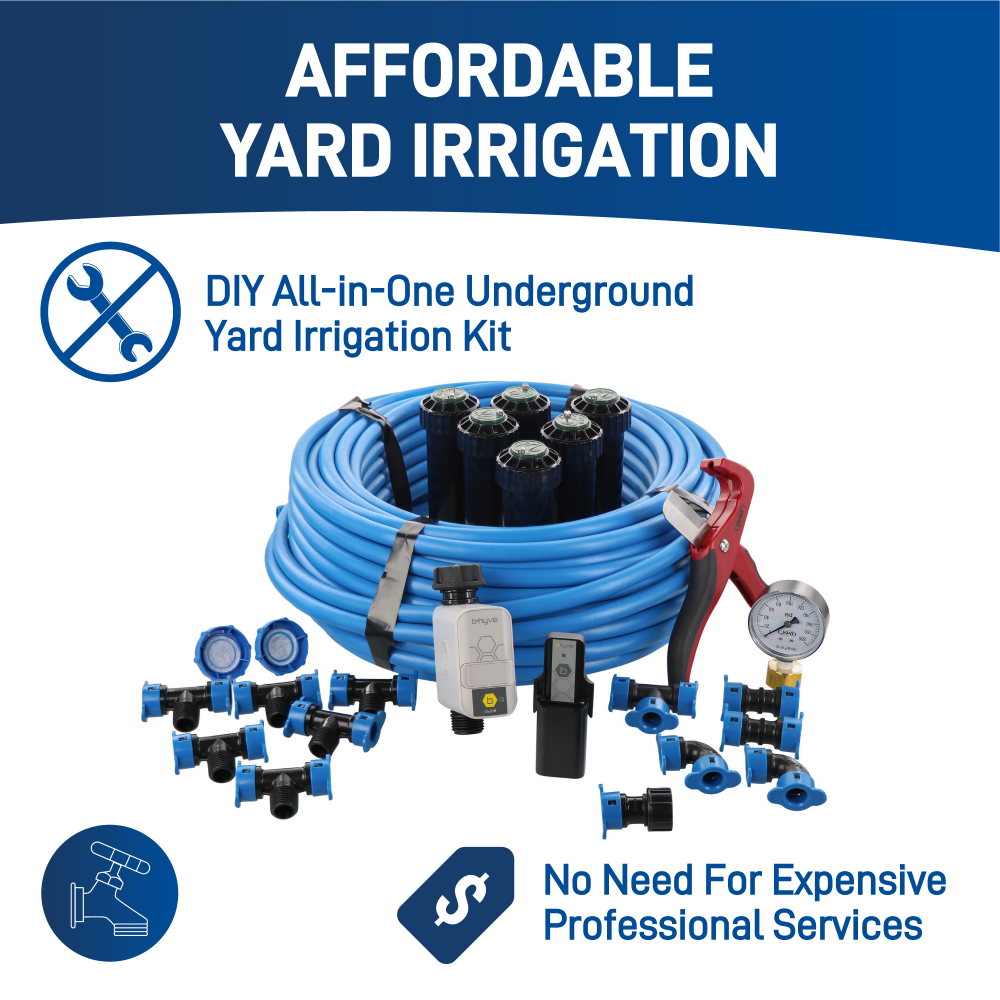

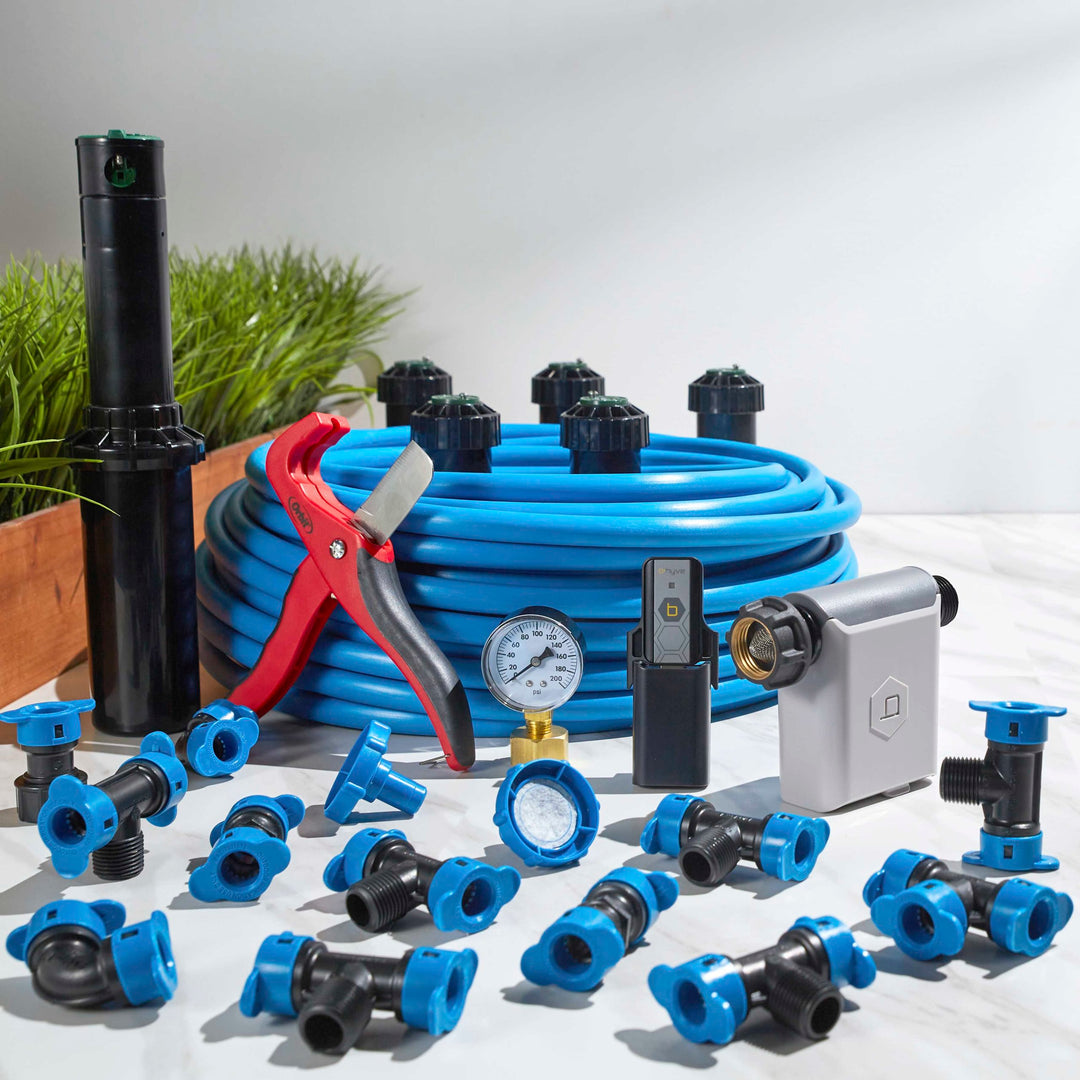

Medium Area All-In-One Sprinkler Kit with B-hyve® Smart Timer

  • For creating a 1-zone automatic sprinkler system using a hose faucet water source

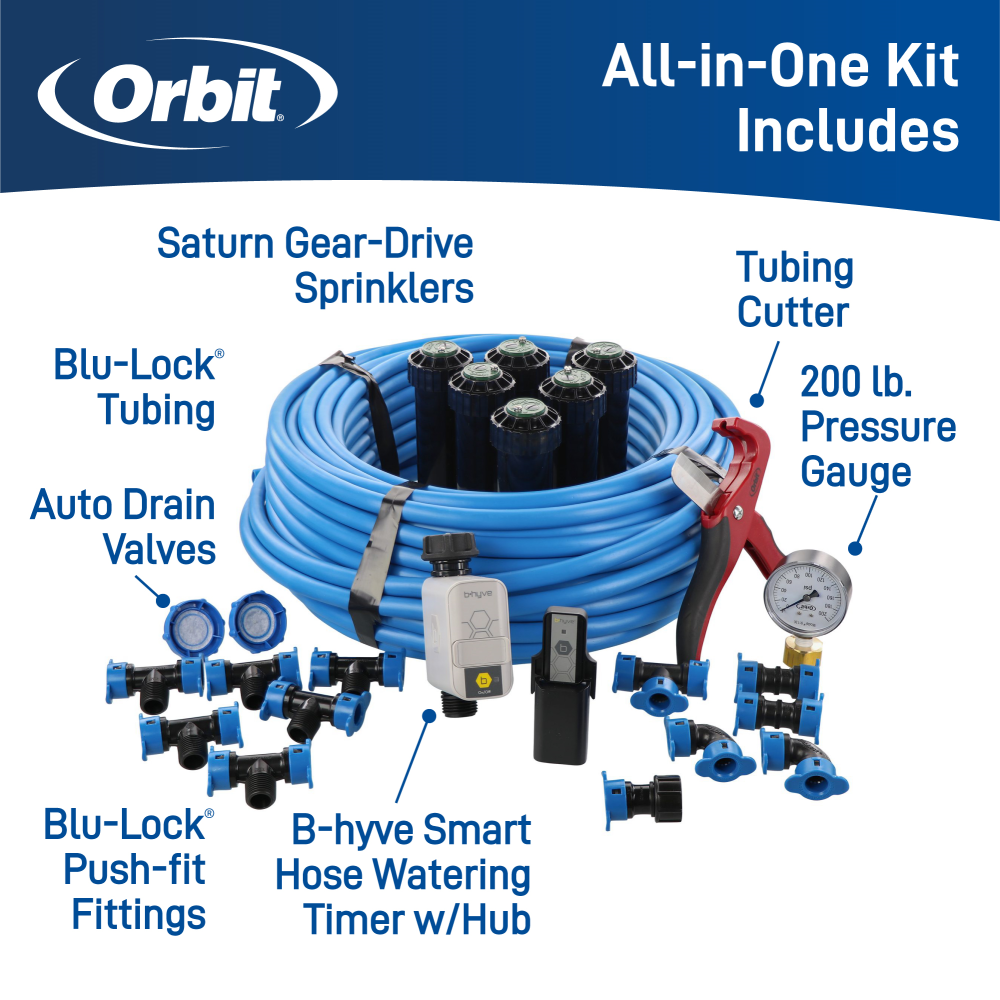

  • Contains B-hyve timer, 6 high-efficiency sprinklers, Blu-Lock tubing and fittings, tubing cutter, and 200 lb. pressure gauge

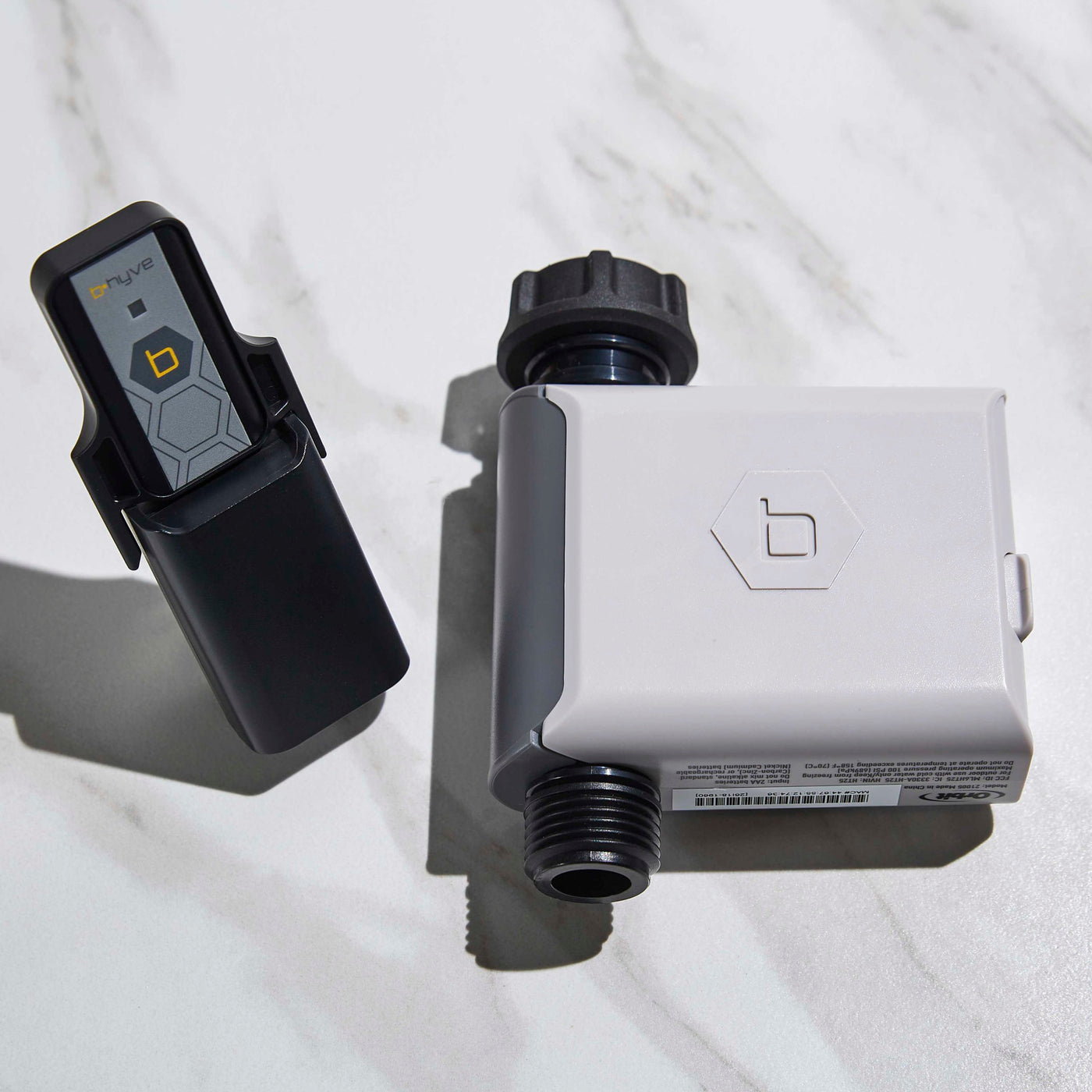

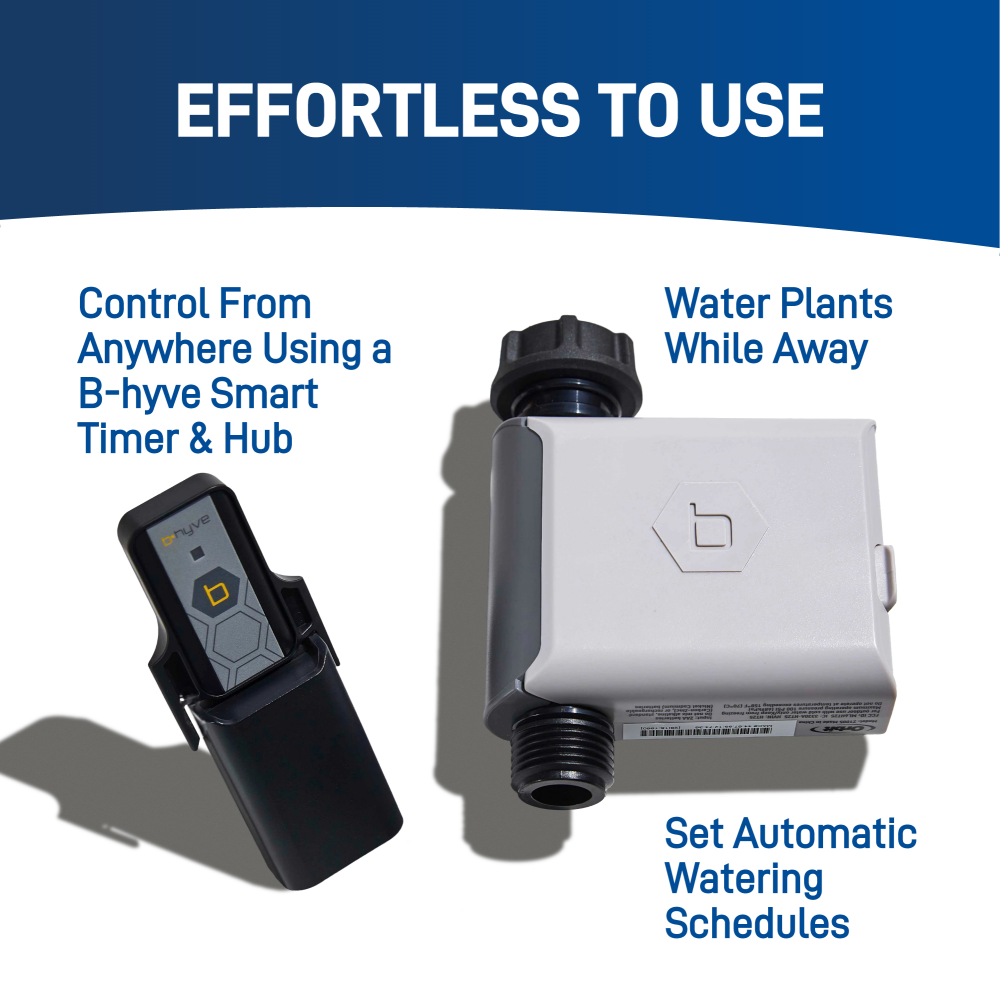

  • B-hyve Smart 1-Outlet Hose Faucet Timer is engineered for installation in outdoor locations with exposure to the elements
  • Slim profile allows installation of up to 4 timers on a single hose faucet/tap multi-port manifold (sold separately)
  • B-hyve Gen 1 Smart Hub (included) connects multiple timers to B-hyve server
  • Bluetooth and 2.4 GHz Wi-Fi radios ensure reliable connectivity and control
  • Blu-Lock reduces installation time and effort compared with regular barb fittings
  • Blu-Lock quick-release collars allow for easy removal and reconfiguration
  • Blu-Lock requires no solvents or sealant tape, protecting the environment
  • Medium area coverage up to 1,250 sq ft depending on water pressure and flow
  • Easy to adjust area coverage for each sprinkler from 15 to 25-ft. radius
  • Part or full circle: simple adjustment from 40° to 360° while the water is on or off
  • Includes auto drain valves to help prevent damage due to freezing
  • Test water pressure before installation to ensure at least 50 PSI and 5 GPM flow
  • In stock, ready to ship
  • Inventory on the way
$219.49
/
Shipping calculated at checkout.

Description

The medium area all-in-one automatic sprinkler system kit is engineered for creating a 1-zone automatic sprinkler system using a hose faucet water source. Enjoy the convenience of an in-ground sprinkler system without the hassle of connecting to an in-ground water source. This kit features the B-hyve Smart 1-Outlet Hose Faucet Sprinkler Timer with B-hyve Gen 1 Smart Hub. It is part of the B-hyve Smart water management device ecosystem which includes smart landscape controllers, hose faucet timers, flow meters, leak detectors and mainline shutoffs.

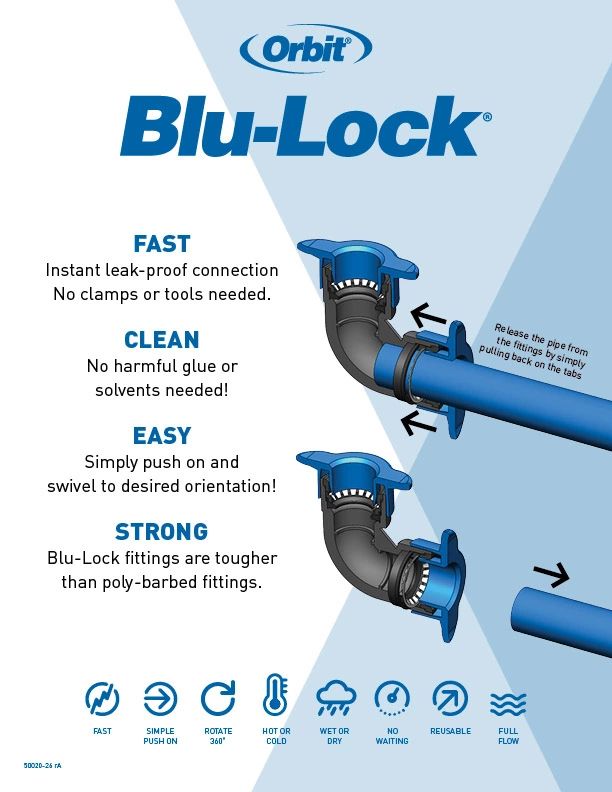

You can control the timer anywhere in the world where your smartphone has reception. Smart not only means that you can control it from your smartphone, B-hyve WeatherSense® technology makes it weather smart. When connected to Wi-Fi, B-hyve automatically checks your local weather conditions many times each day, recalculates the soil moisture level in each zone, and then makes smart choices about when and how long to water. In the event of rain, high wind, or freeze, B-hyve will delay watering until normal conditions return and then will calculate the appropriate watering schedule, helping take advantage of beneficial rainfall and saving water. The patented Blu-Lock tubing system uses a revolutionary stainless steel retaining ring that grips the flexible pipe from the outside permitting a quick, easy-to-slide-on fitting which installs 80% faster and is 25% stronger than traditional barb fittings, providing you a stronger system in less install time.

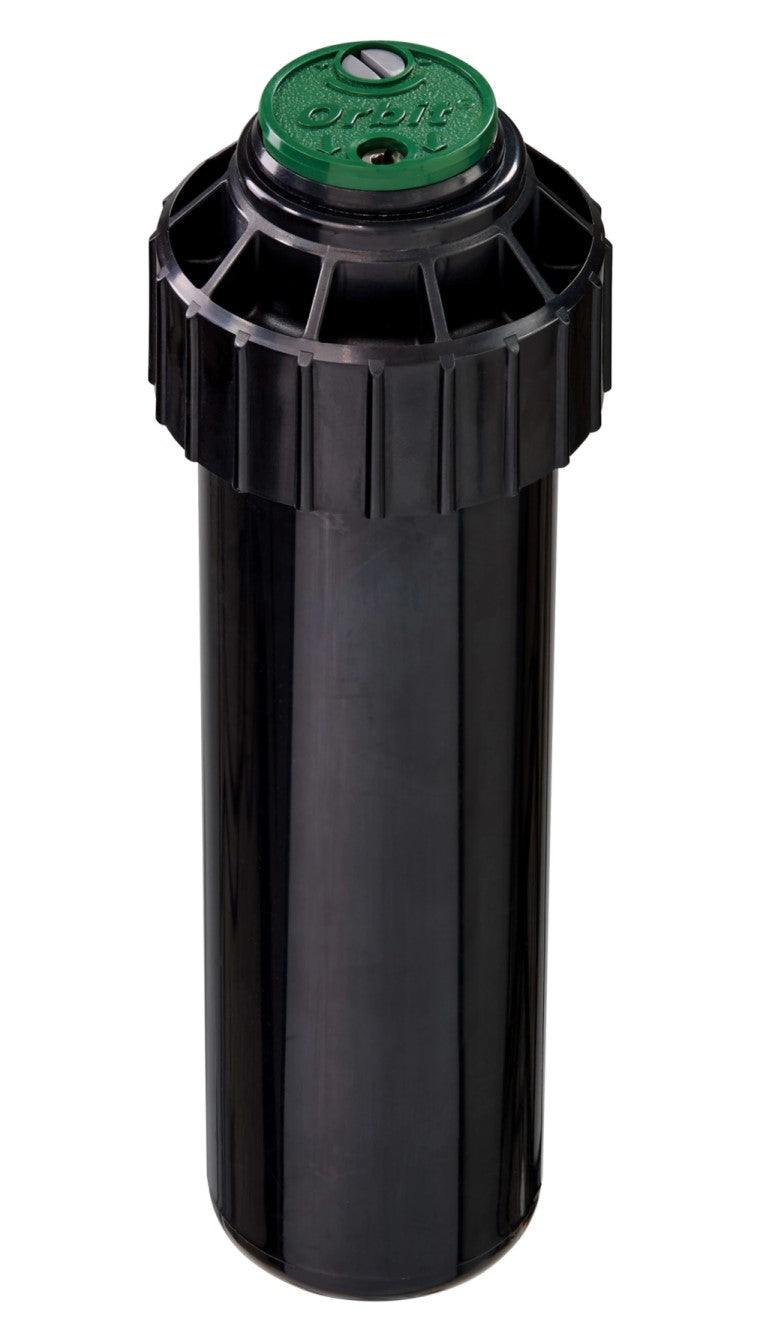

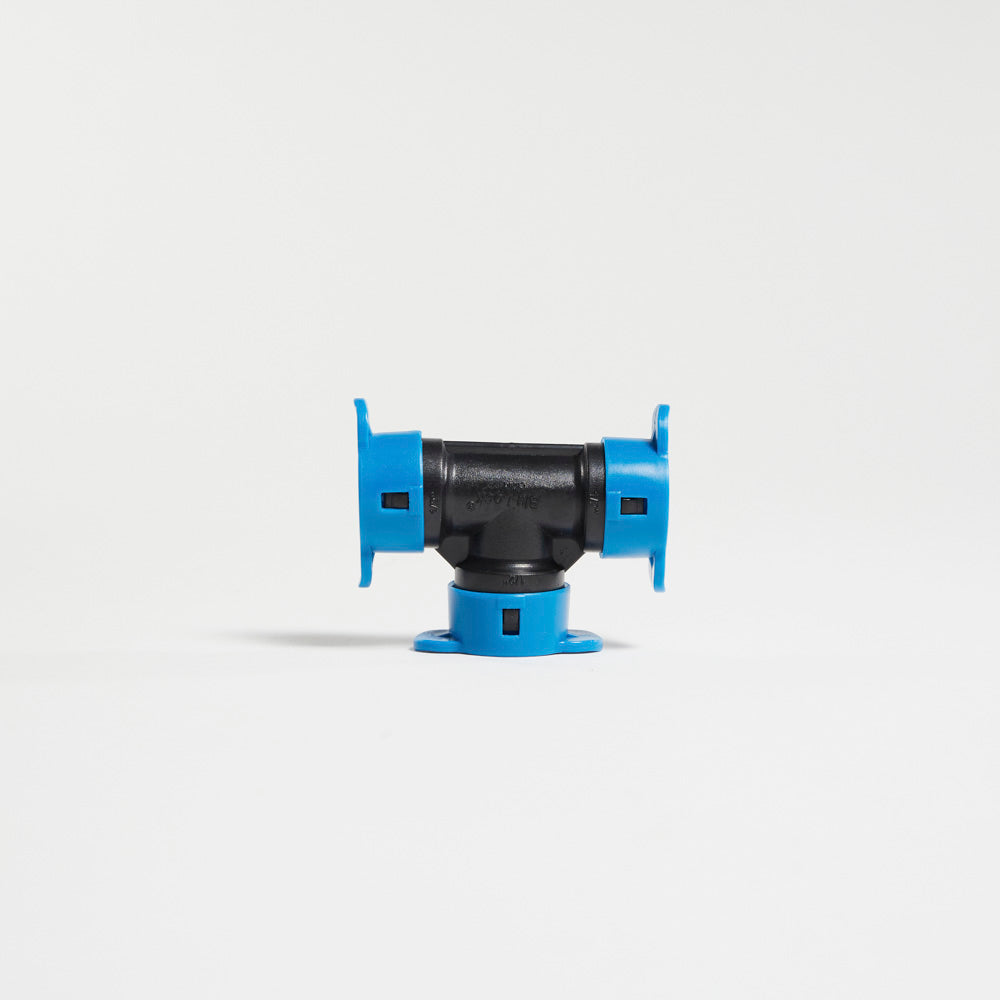

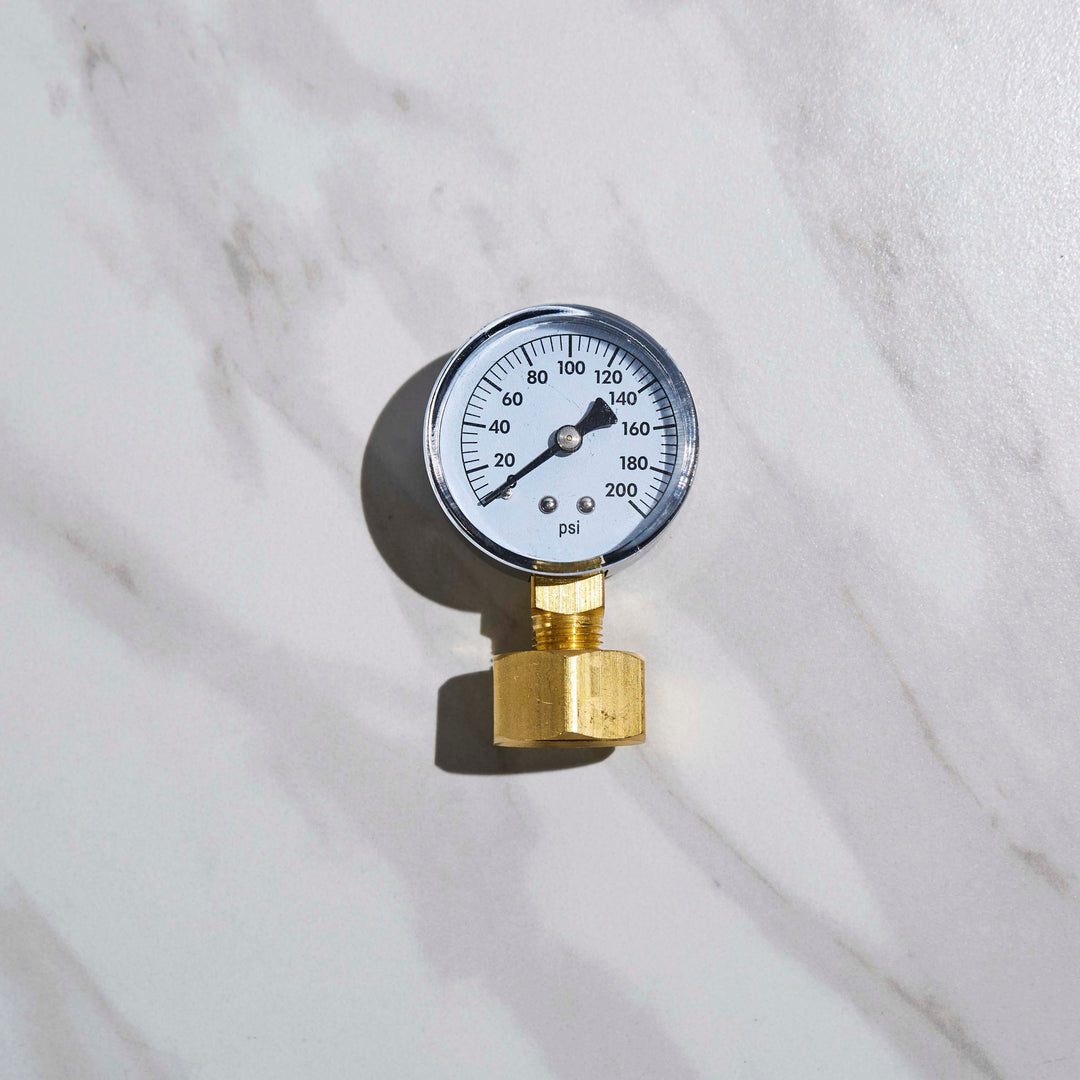

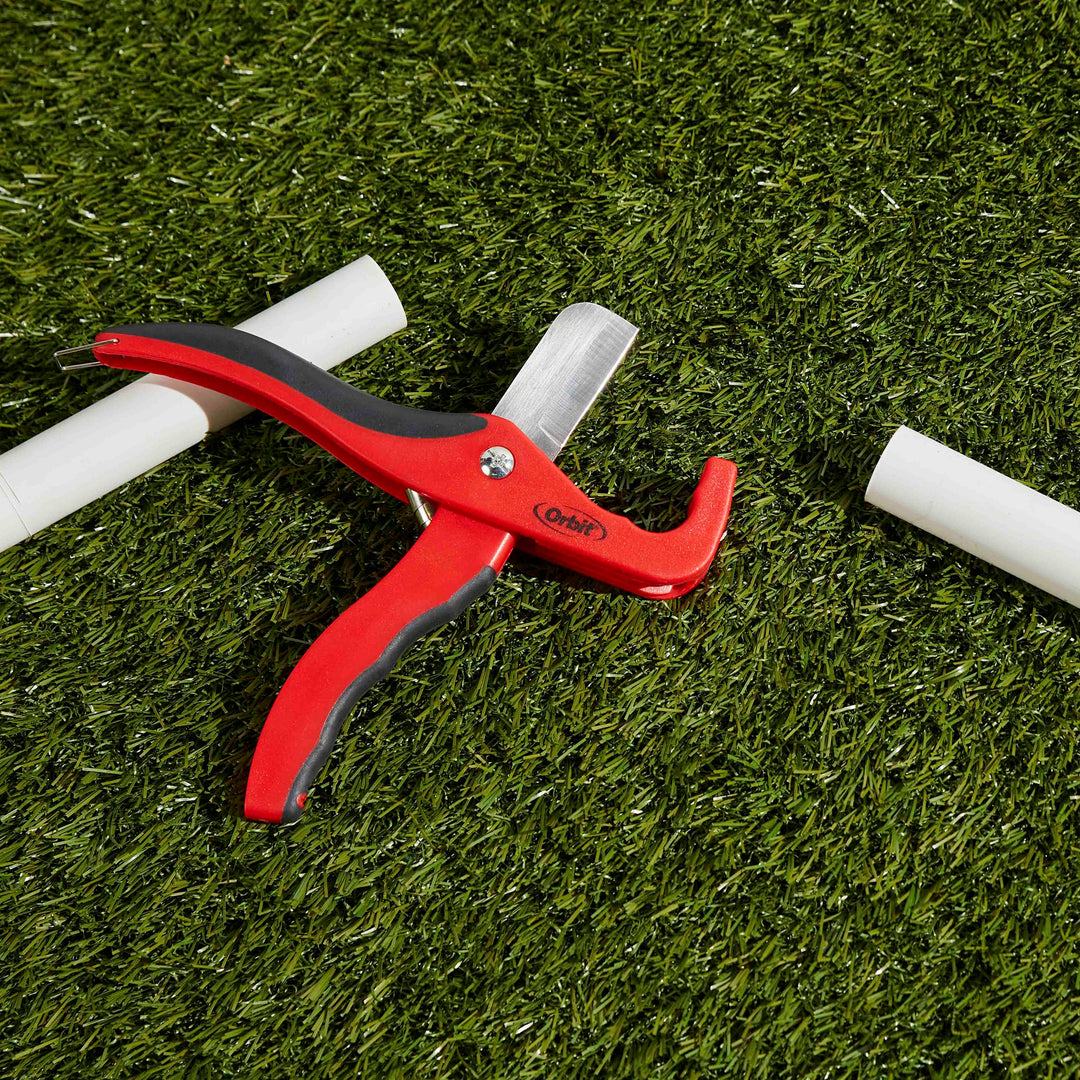

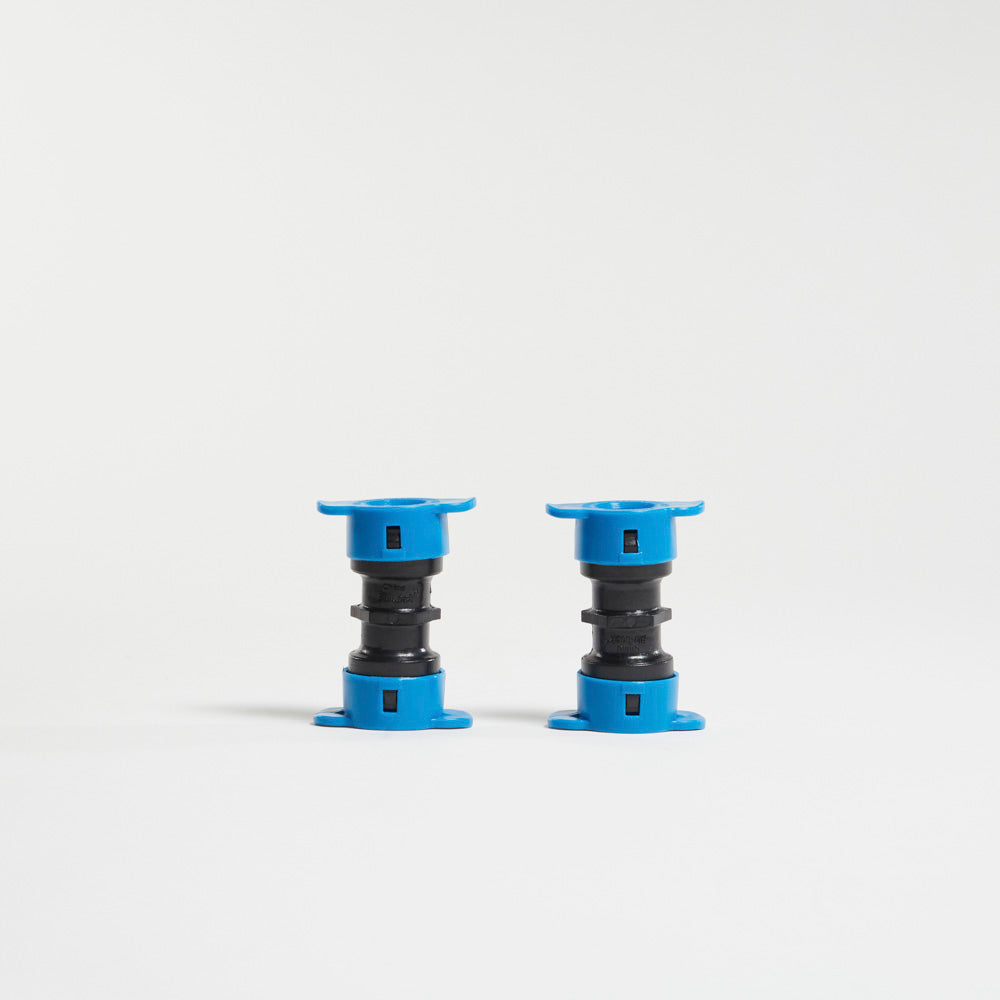

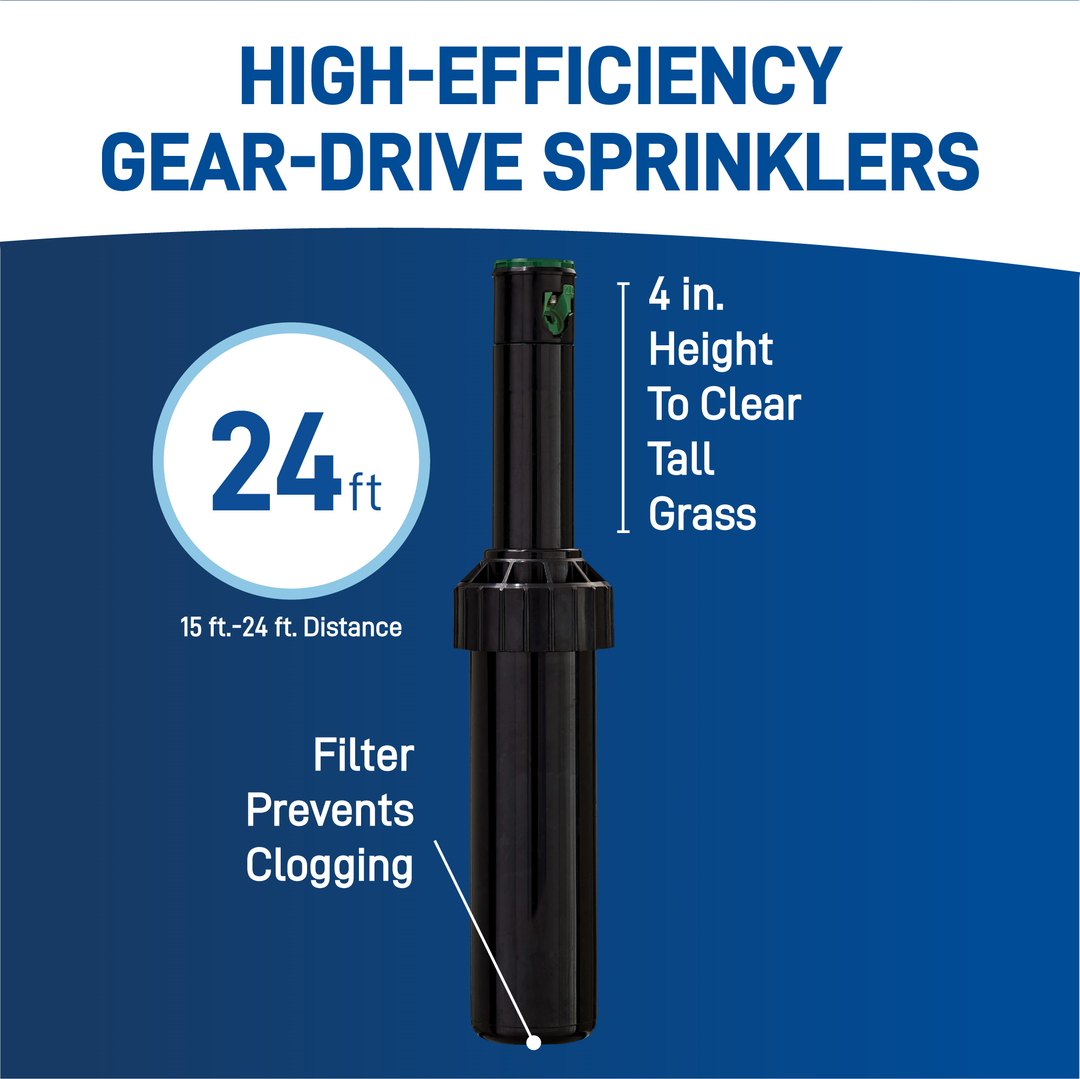

The 6 pop-up gear drive sprinkler heads are easy to adjust with the water on or off, providing head-to-head coverage to ensure against dry spots. Recommended for hose faucets which have at least 50 PSI static pressure and 5 gallons per minute (GPM) of flow. The 50020 Medium Area 1-Zone All-in-One Automatic Sprinkler System Kit includes: PVC Pipe Cutter, 3/4-in. FHT Water Pressure Gauge, 1/2-in. Blu-Lock Tee, 1/2-in. Blu-Lock Couplings (2), 1/2-in. Blu-Lock Auto Drains (2), 3/4-in. FHT x 1/2-in. Blu-Lock Adapter, 1/2-in. Blu-Lock Elbows (2), 1/2-in. x 1/2-in. Blu-Lock x 1/2-in. MPT Tees (6), Blu-Lock Pipe (125 ft.), Saturn III Gear-Drive Rotor Sprinklers (6), 1-Outlet Digital Hose Faucet Timer, and Instruction Manual. For outdoor irrigation use with cold water only.


Technical Specifications

App Compatibility iOS - iPhone iPad and iPod Touch running iOS 8 and higher. Android - Android version 4.3 and higher.
Smart Home Compatibility Amazon Alexa Google Home
Power Requirements 120V AC/60Hz Input 24V AC Output
Power Cord Length 5 ft. UL 1951 Approved
Bluetooth 4.2
Wi-Fi Bandwidth 2.4Ghz.
Sensor Compatibility Supports Most Rain/Freeze Sensor
Master Valve / Pump Relay Compatibility Yes
Warranty 2 Years
Mounting Hardware Included
Mounting Location Indoor/Outdoor
Size Depth 3.5-in. x Width 7-in. x Height 8.75-in.
Weight 2.1 lbs
