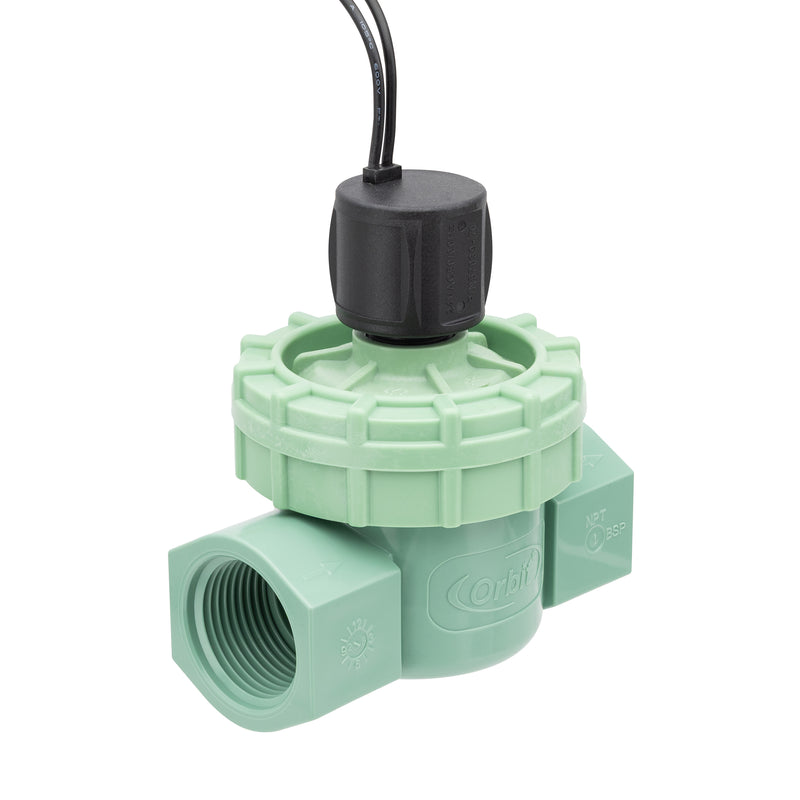

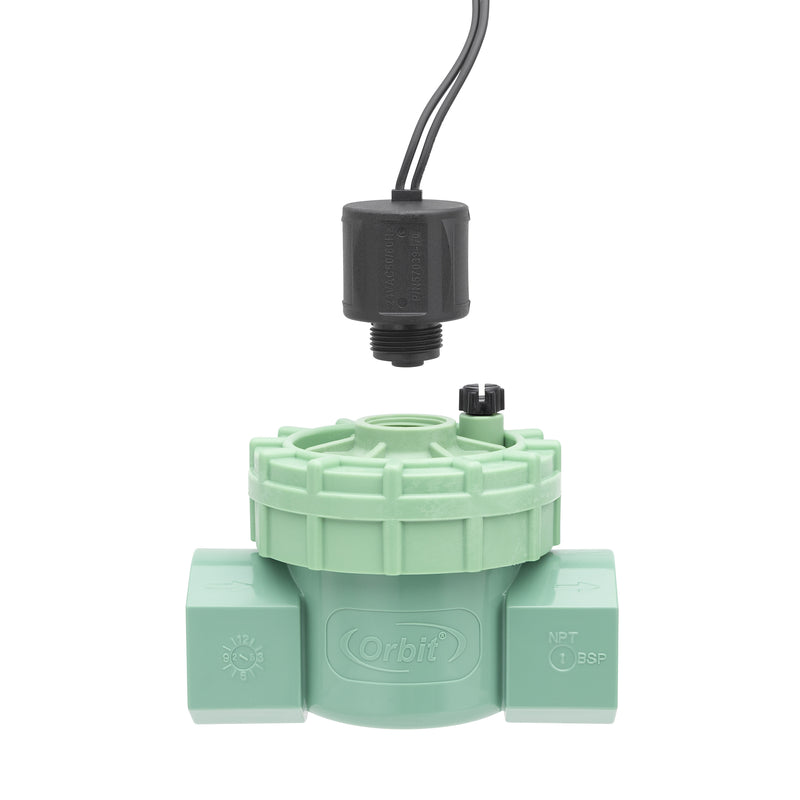

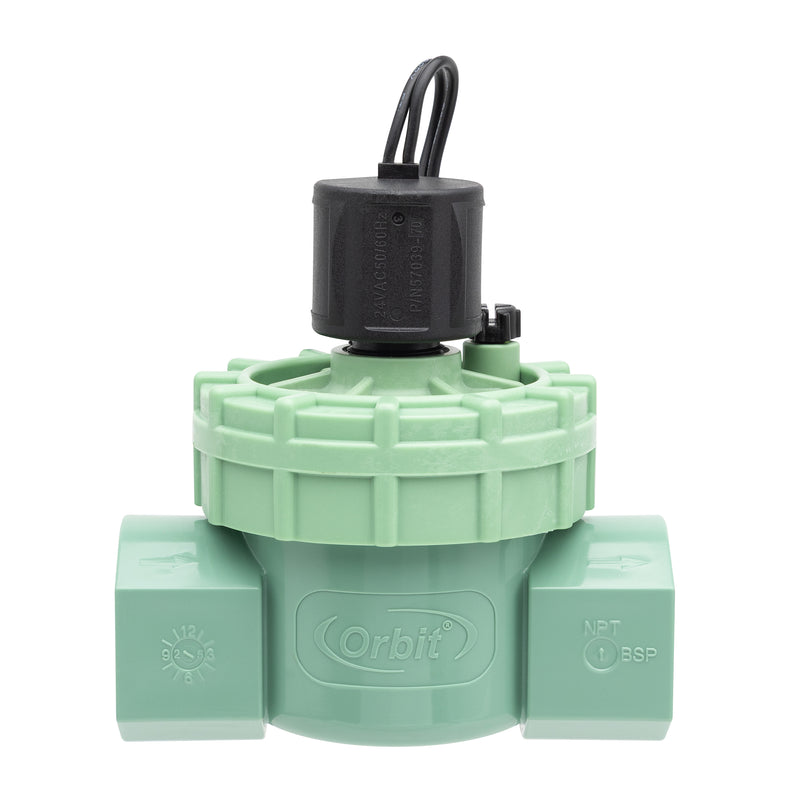

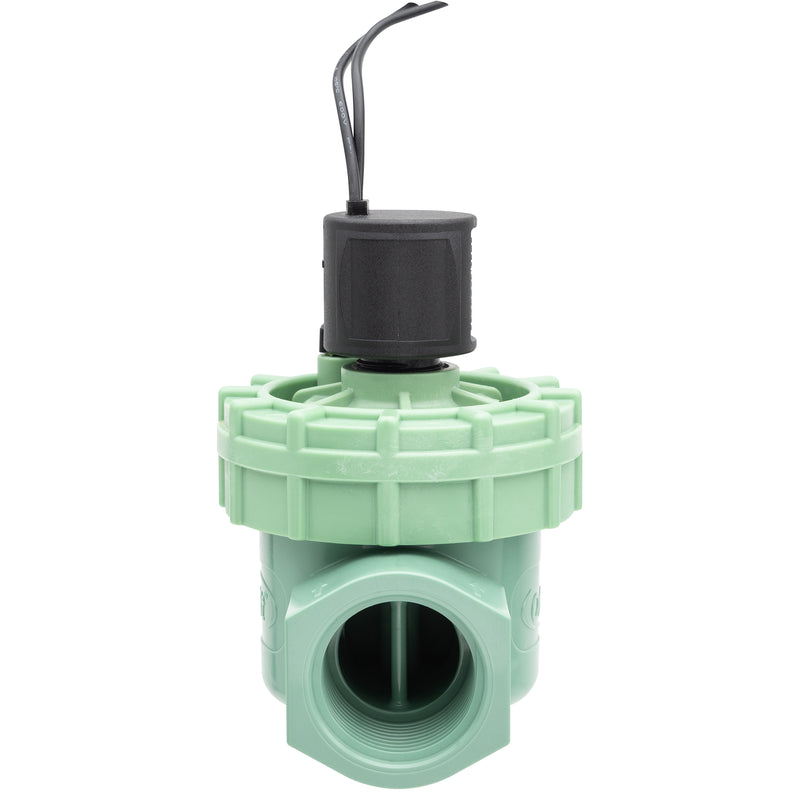

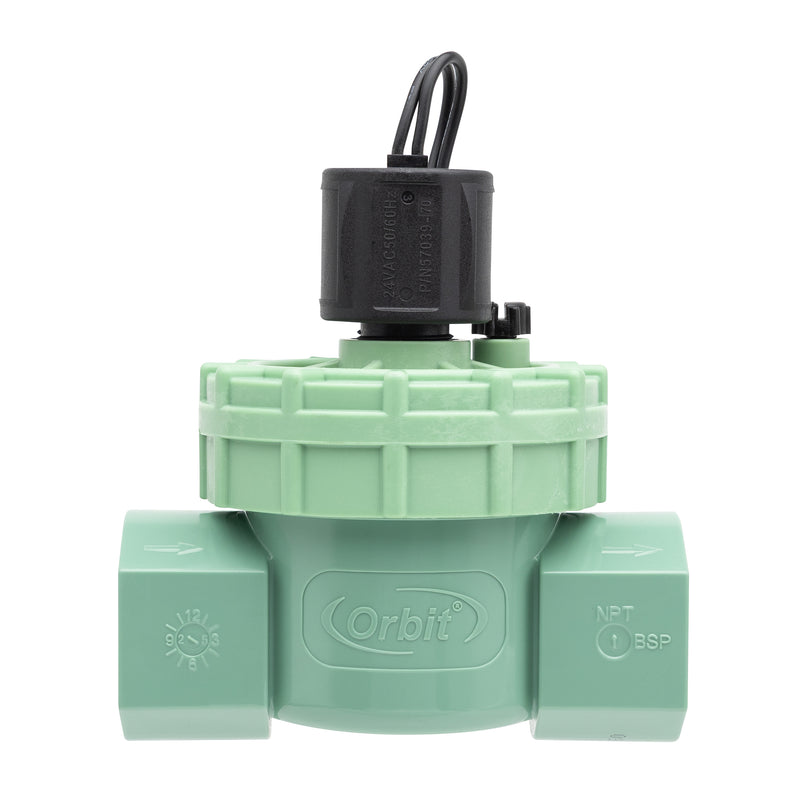

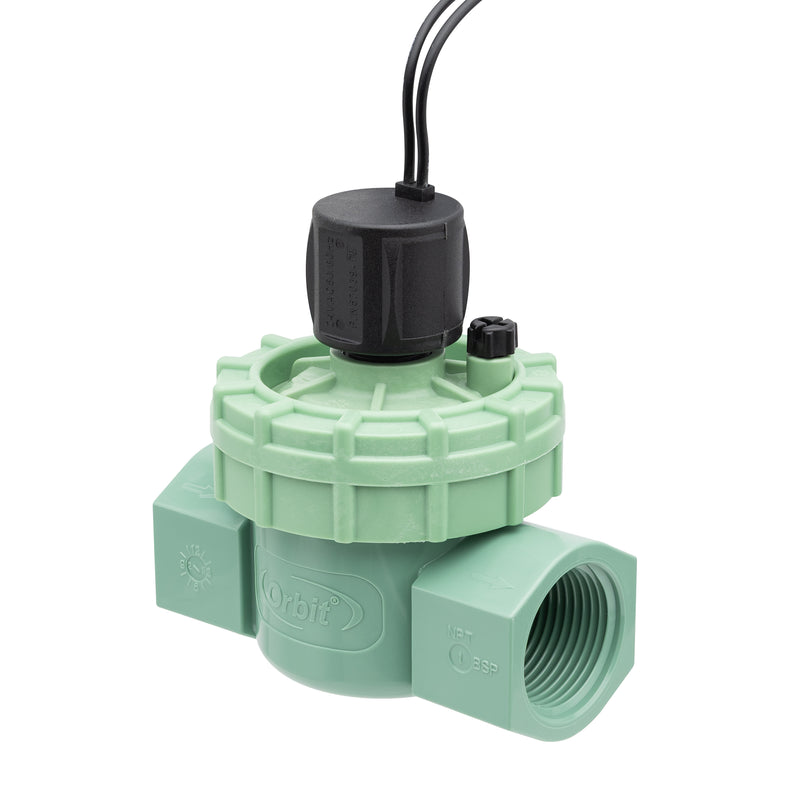

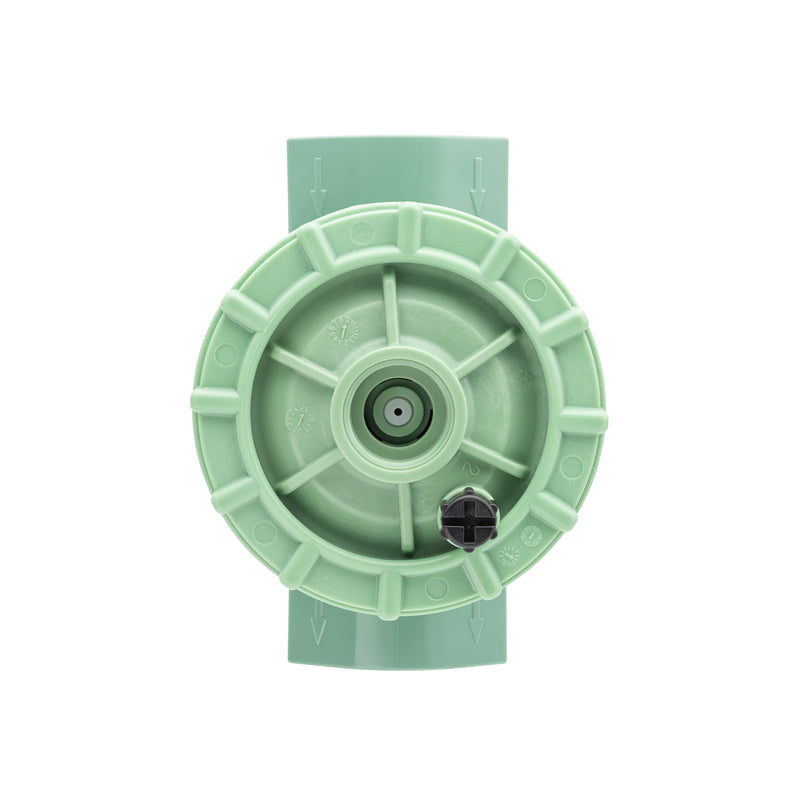

Automatic jar top valves are the easiest-to-service valves for today’s irrigation systems. The jar top valve features a 24 VAC solenoid, manual actuation lever, and bleed screw. The jar top lid removes with a counterclockwise twist, allowing access to the diaphragm and support ring. The threads are 3/4-in. or 1-in. pipe thread and are compatible with Schedule 40 and 80 PVC fittings as well as heavy-duty manifold adapters. The jar top solenoid features nickel-plated copper wire and is compatible with all major brands of 24 VAC irrigation controllers. We recommend B-hyve controllers for optimum water conservation and Blu-Lock or PVC-Lock fittings for fast, glue-free installation. For outdoor irrigation use with cold water only

Valve Type: Automatic jar-top inline valve, 24 VAC

Body Material: PVC

Inlet/Outlet Threads: 3/4 in. FPT

Solenoid: 24 VAC, nickel-plated copper wire; lid accepts standard 3/4-20 UNEF solenoid thread

Manual Operation: Manual actuation lever and bleed screw

Filtration: Internal scrubber filter

Working Pressure: 25–80 PSI

Maximum Operating Pressure: 90 PSI

Burst Pressure: 150 PSI

Water Temperature: 40–70°F operating

Maximum Water Temperature: 80°F

Minimum Flow Rate, 3/4 in.: 10 GPM at 25 PSI, 15 GPM at 50 PSI, 18 GPM at 75 PSI

Fitting Compatibility: Schedule 40 and 80 PVC fittings, heavy-duty manifold adapters; Blu-Lock and PVC-Lock for glue-free installation

Controller Compatibility: All major brands of 24 VAC irrigation controllers (Orbit, Hydro-Rain, and others)

Life Cycle: Tested to 10,000 cycles
