Orbit Voyager Rotors: Everything You Need to Know

When it comes to keeping your lawn lush and green, proper irrigation is essential. For medium to large landscapes, gear-driven rotors are the go-to solution for even, efficient watering. Today, we're diving deep into the Orbit Voyager series – the #1 consumer choice for residential gear-drive rotors – and explaining why they might be the perfect addition to your irrigation system.

Understanding Gear-Drive Rotors: The Backbone of Large Lawn Irrigation

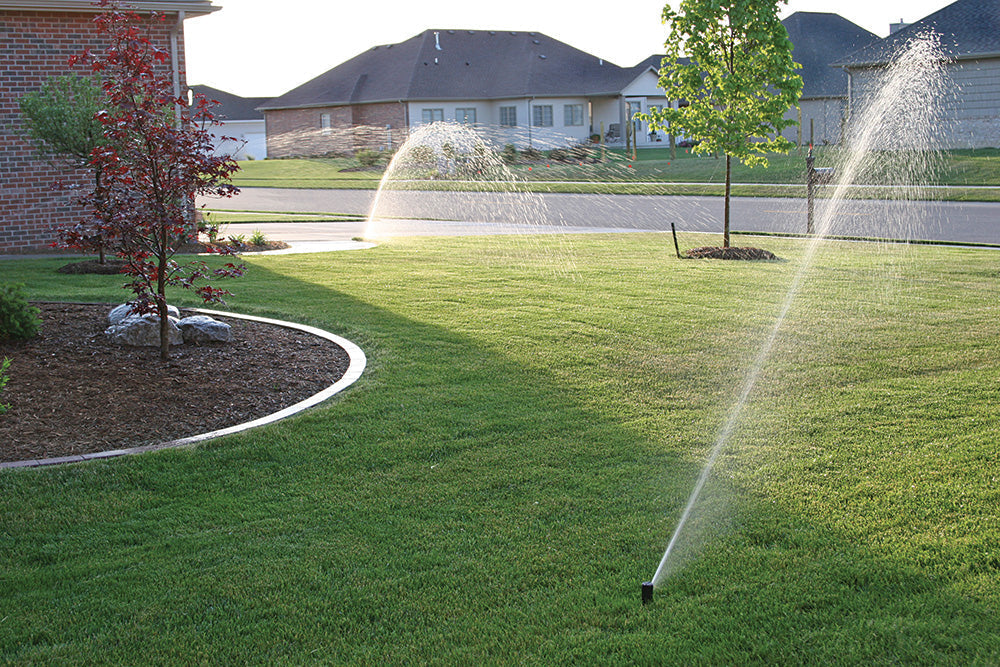

Before we get into the specifics of the Voyager series, let's understand what makes gear-drive rotors so effective. Unlike traditional spray heads that emit a fixed pattern, gear-drive rotors rotate slowly, distributing water in a single stream that moves gradually across your lawn. This approach offers several advantages:

• Greater Distance: Rotors can spray water much farther than standard spray heads (25-52 feet for Voyager models)
• Lower Precipitation Rate: The slower application of water allows for better soil absorption, reducing runoff
• More Even Coverage: When properly installed, rotors provide remarkably uniform watering
• Fewer Heads Needed: The extended radius means you'll need fewer heads to cover the same area
• Water Efficiency: Better distribution means less wasted water and healthier plants

Introducing the Orbit Voyager Family: Two Models for Different Needs

The Voyager

Featuring a hard-top design adjustable with any standard flat-head screwdriver, the original Voyager was created with homeowners in mind. No specialized tools required – just grab the screwdriver from your toolbox and make quick adjustments to arc, radius, and pattern.

The Voyager II

Built with a professional-grade soft rubber cap, the Voyager II offers enhanced durability and debris protection. Similar to other professional-grade rotors on the market, it requires an adjustment key (included) for making changes. This rubber top is both "sneaker-friendly" for high-traffic areas and provides superior protection against dirt intrusion.

Features That Set Voyager Apart

1. Keyhole Nozzle Technology

Perhaps the most innovative element of the Voyager series is its unique Keyhole nozzle design. While standard rotors often struggle with distribution, sending too much water to distant areas and not enough to areas close to the sprinkler, the Keyhole technology solves this problem elegantly.

The nozzle features a distinctive keyhole shape with a bottleneck in the center that splits the water flow into two distinct streams:

- The top portion forms water for long-distance coverage

- The bottom portion creates streams for close and medium distances

This ingenious design ensures remarkably even precipitation from edge to edge of the spray radius.

2. Intuitive Matched Precipitation Nozzle System

For many homeowners, selecting the right nozzle can be confusing. The Voyager solves this with a simple numbering system:

Nozzle 1: Quarter-circle pattern (delivers 25% of the water of a full circle)

Nozzle 2: Half-circle pattern (delivers 50% of the water of a full circle)

Nozzle 3: Three-quarter pattern (delivers 75% of the water of a full circle)

Nozzle 4: Full-circle pattern

Nozzle 8: Special field nozzle that delivers double the water output of nozzle 4

This intuitive numbering means the nozzle number directly corresponds to the spray pattern and maintains matched precipitation rates – ensuring uniform watering regardless of which pattern you use.

3. Low-Trajectory L-Series Nozzles

For areas with wind challenges or where overspray needs to be minimized, the Voyager includes special L-series nozzles (L0.5, L1.0, L1.5, and L2.0) that deliver water at a lower angle while maintaining even distribution.

4. No-Dig Replacement Capability

One of the most frustrating aspects of updating an irrigation system is the need to dig up existing sprinklers – risking damage to underground pipes and creating a mess of your landscape. The Voyager eliminates this headache with a design that allows you to remove just the internal gear mechanism and install it into existing sprinkler bodies already in the ground.

This means you can upgrade your system from select major brands without extensive digging or system modifications. Simply remove the old internal components, insert the Voyager mechanism, and enjoy improved performance.

Real-World Applications: Where Voyager Shines

The Voyager series is particularly well-suited for:

• Medium to Large Residential Lawns: Especially areas requiring 25-foot up to 52-foot throw distances
• Upgrading Existing Systems: Perfect for replacing old, failing, or inefficient sprinklers without system redesign
• Mixed-Brand Systems: Fully compatible with all major brands of gear-drive rotor systems
• Sloped Landscapes: The lower precipitation rate reduces runoff on inclined areas
• Windy Environments: The low-trajectory options perform well even in breezy conditions

Getting the most from your Voyager rotors is simple:

1. Spacing: Install rotors in a square or triangular pattern with head-to-head coverage (meaning each rotor should spray to reach the adjacent rotors)
2. Pressure: For optimal performance, operate at the recommended pressure of 45-60 PSI
3. Nozzle Selection: Choose the appropriate nozzle based on your coverage needs, remembering that the number corresponds to the pattern
4. Arc Adjustment: With the system running, adjust the arc to ensure water only hits the landscape, not hardscape surfaces
5. Radius Adjustment: Use the radius adjustment screw to customize throw distance as needed

Voyager: The Smart Choice for Efficient Irrigation

Whether you're a DIY homeowner setting up a new system, upgrading an existing one, or a professional installer looking for reliable performance, the Orbit Voyager series offers the perfect combination of advanced features, ease of use, and durability.

With its innovative Keyhole technology, intuitive nozzle system, and flexible installation options, it's no wonder the Voyager has become the #1 consumer choice for medium- to large-area gear-drive sprinkler heads. Upgrade to the Orbit Voyager and experience the difference proper irrigation can make for your landscape.

Your lawn deserves the best – give it the perfect distribution, coverage, and efficiency of the Orbit Voyager series.
