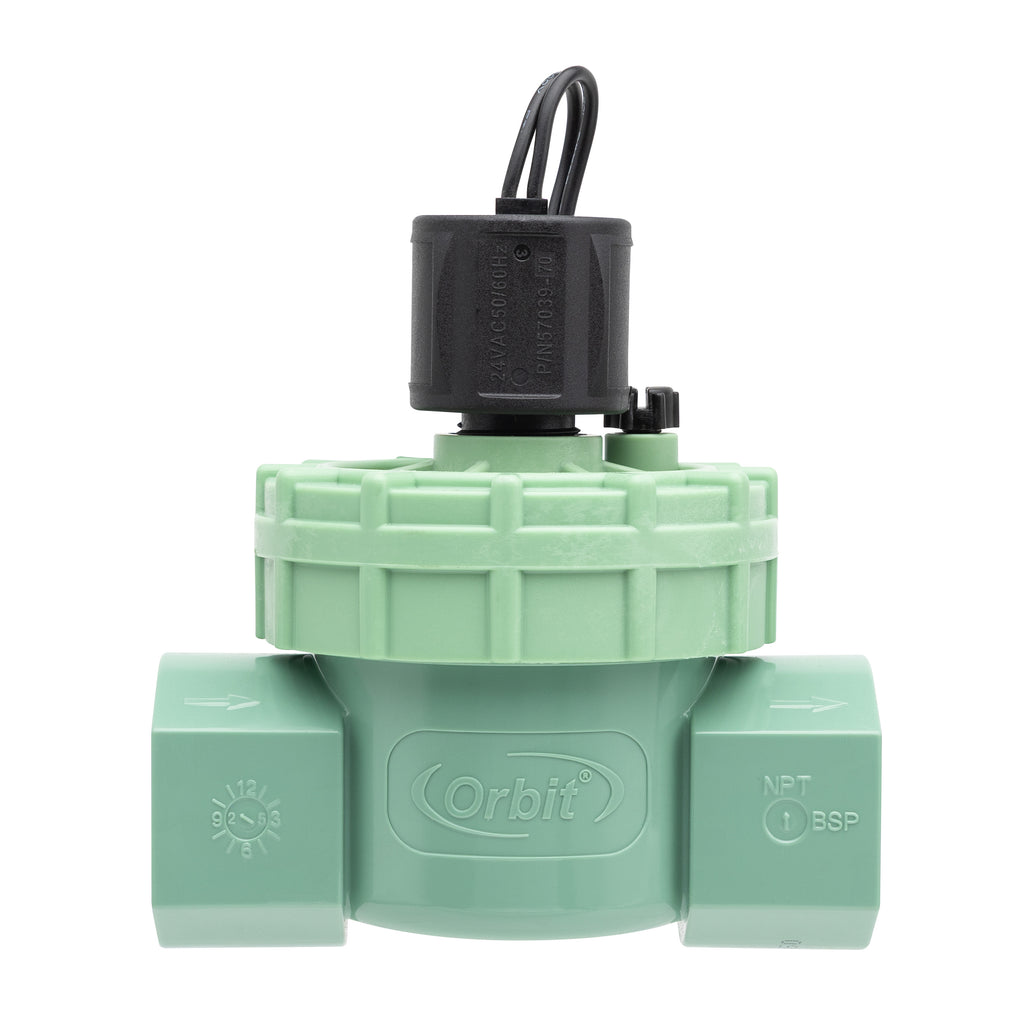

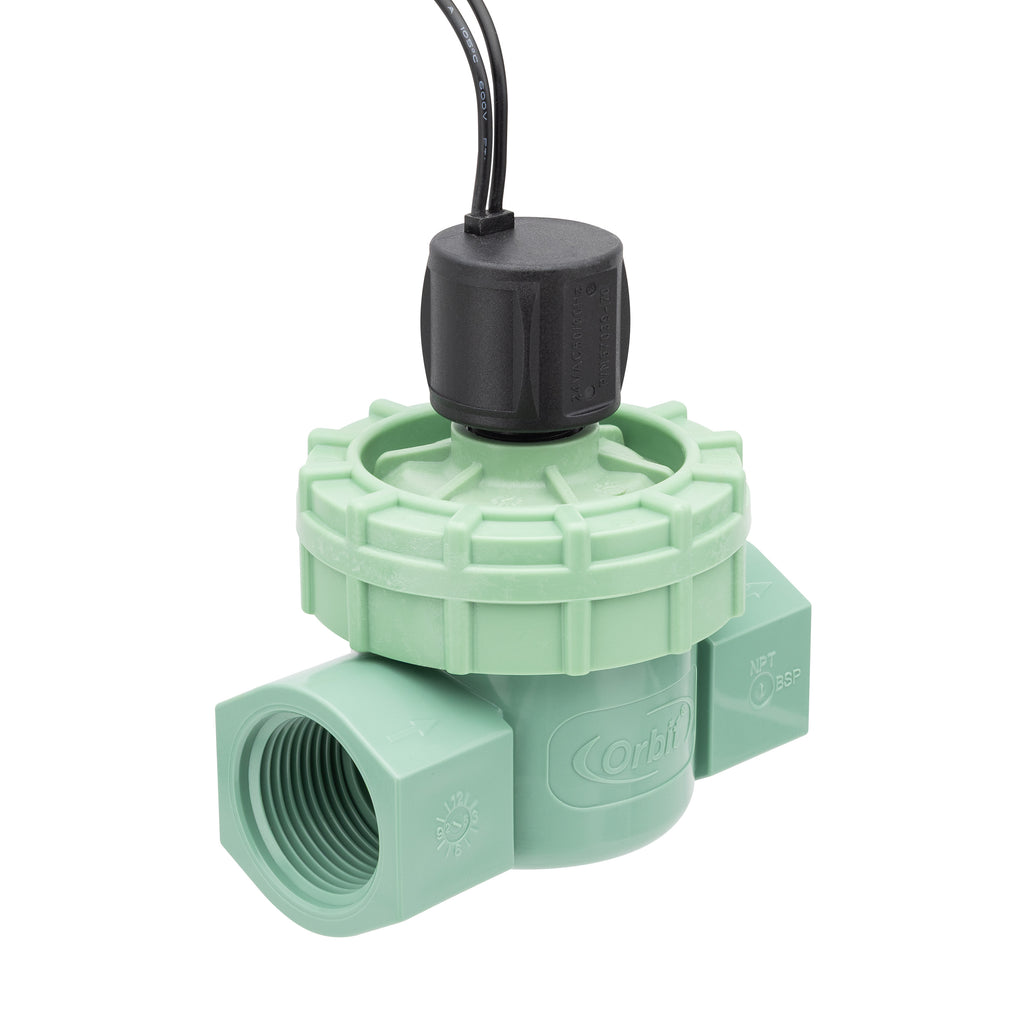

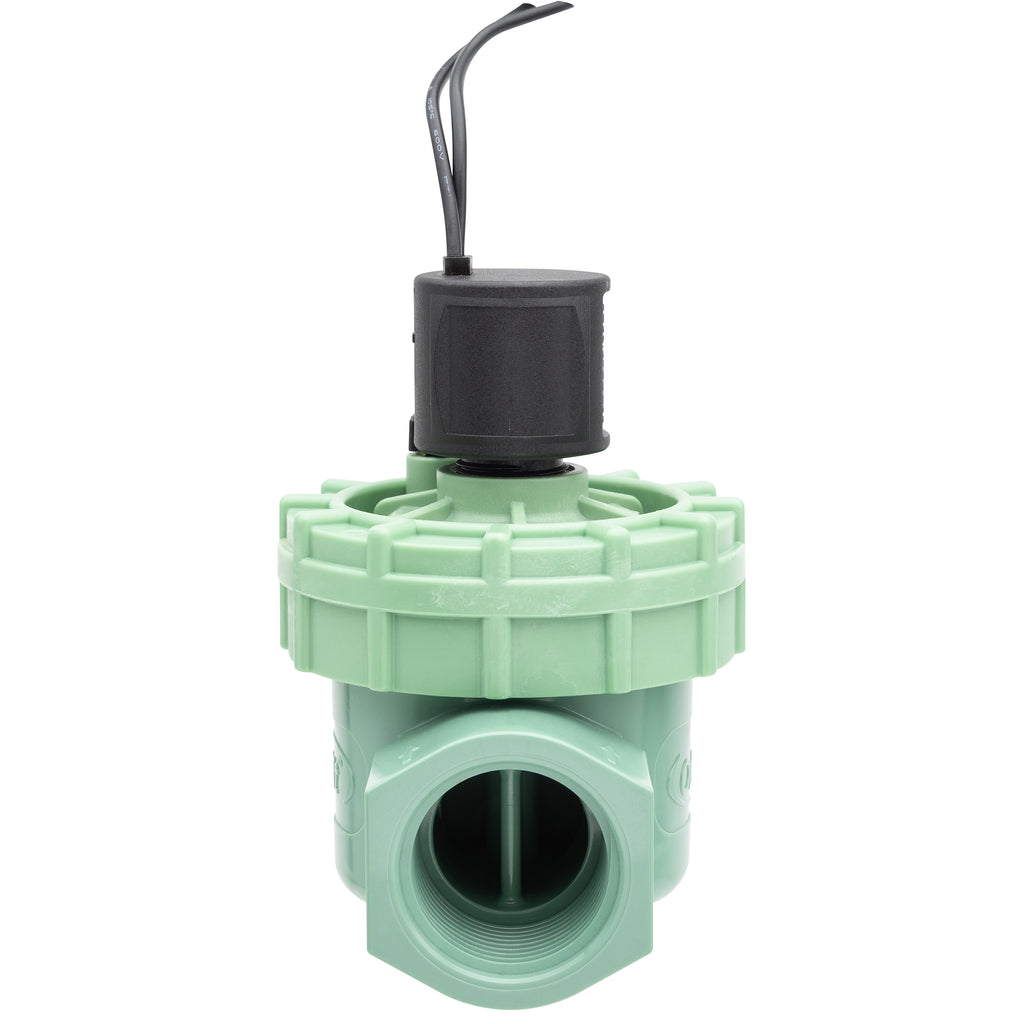

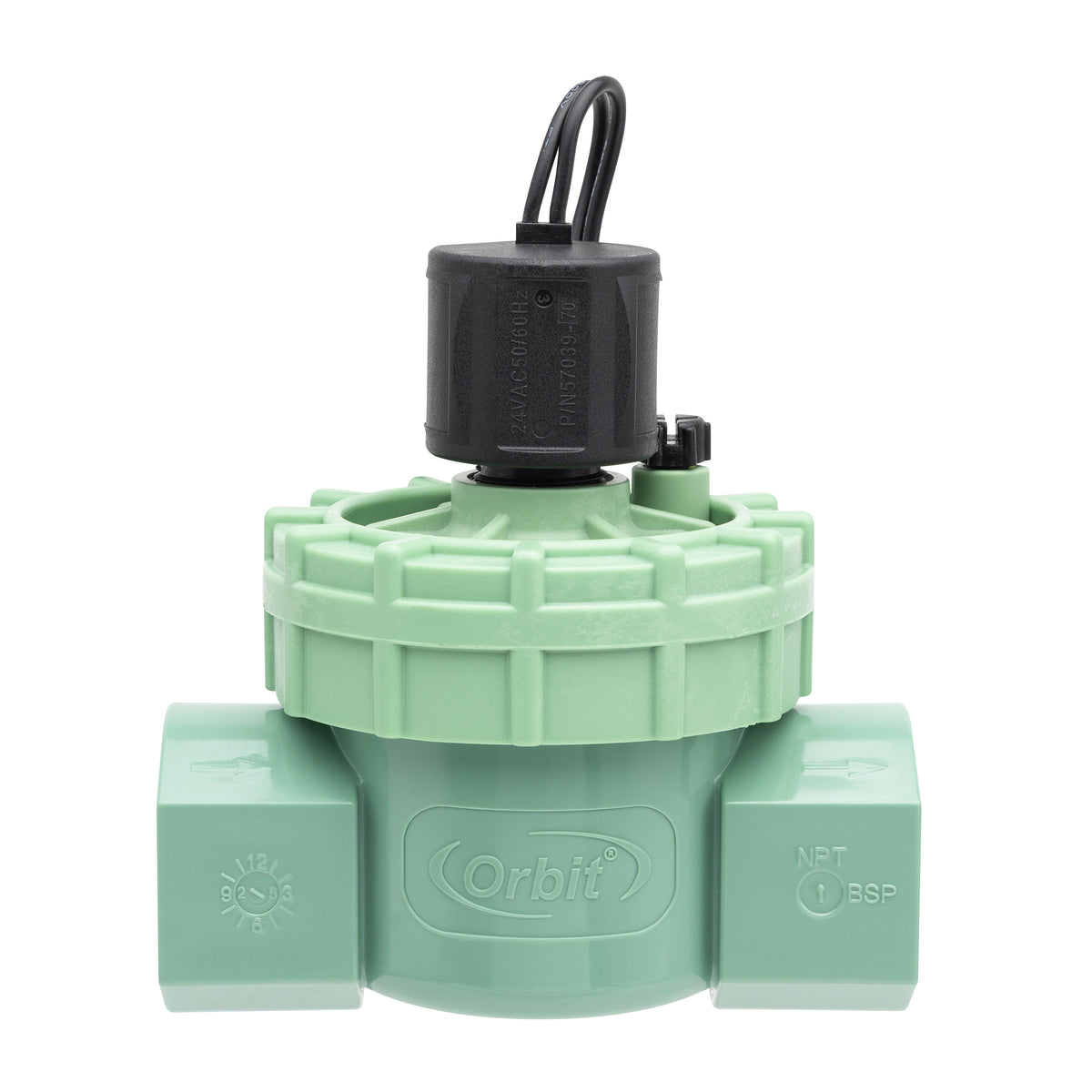

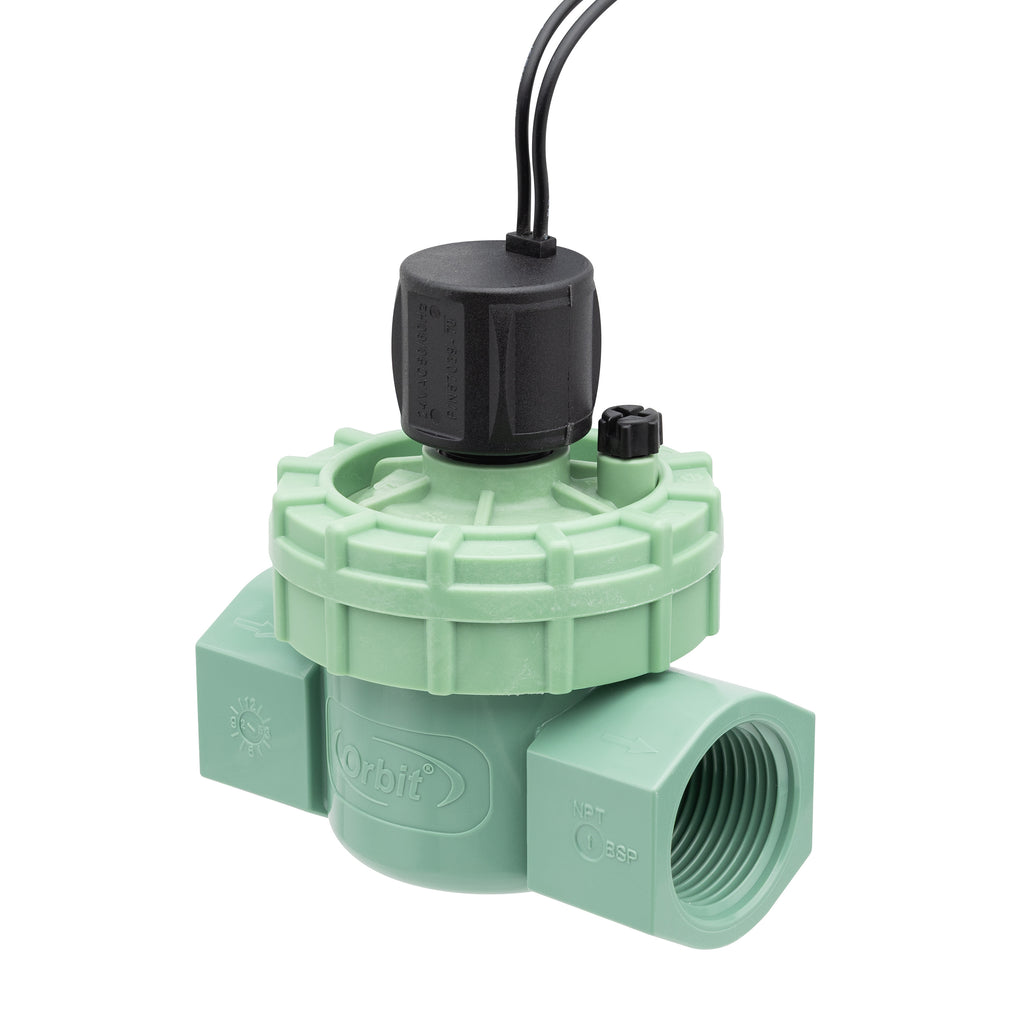

Válvula de aspersión automática Jar Top de 1" HPT | 57461

Name: Válvula de aspersión automática Jar Top de 1" HPT | 57461
Brand: Orbit
SKU: 57461
Price: 21.99 USD
Availability: InStock

ID del artículo: 57461

Para controlar el flujo de agua en zonas de riego por aspersión o goteo

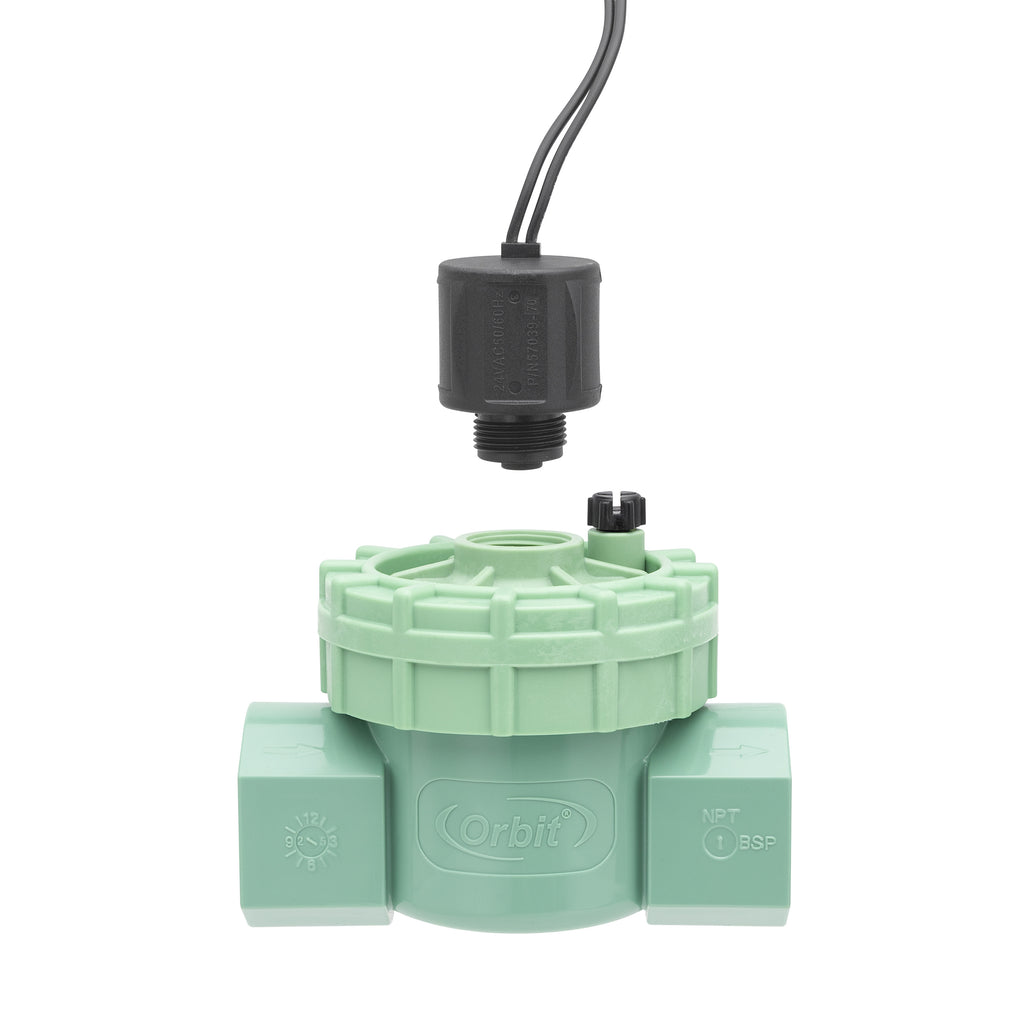

El solenoide de 24 VCA incluye accionamiento manual mediante un giro del solenoide

El filtro depurador interno ayuda a mantener la válvula libre de obstrucciones causadas por agua sucia

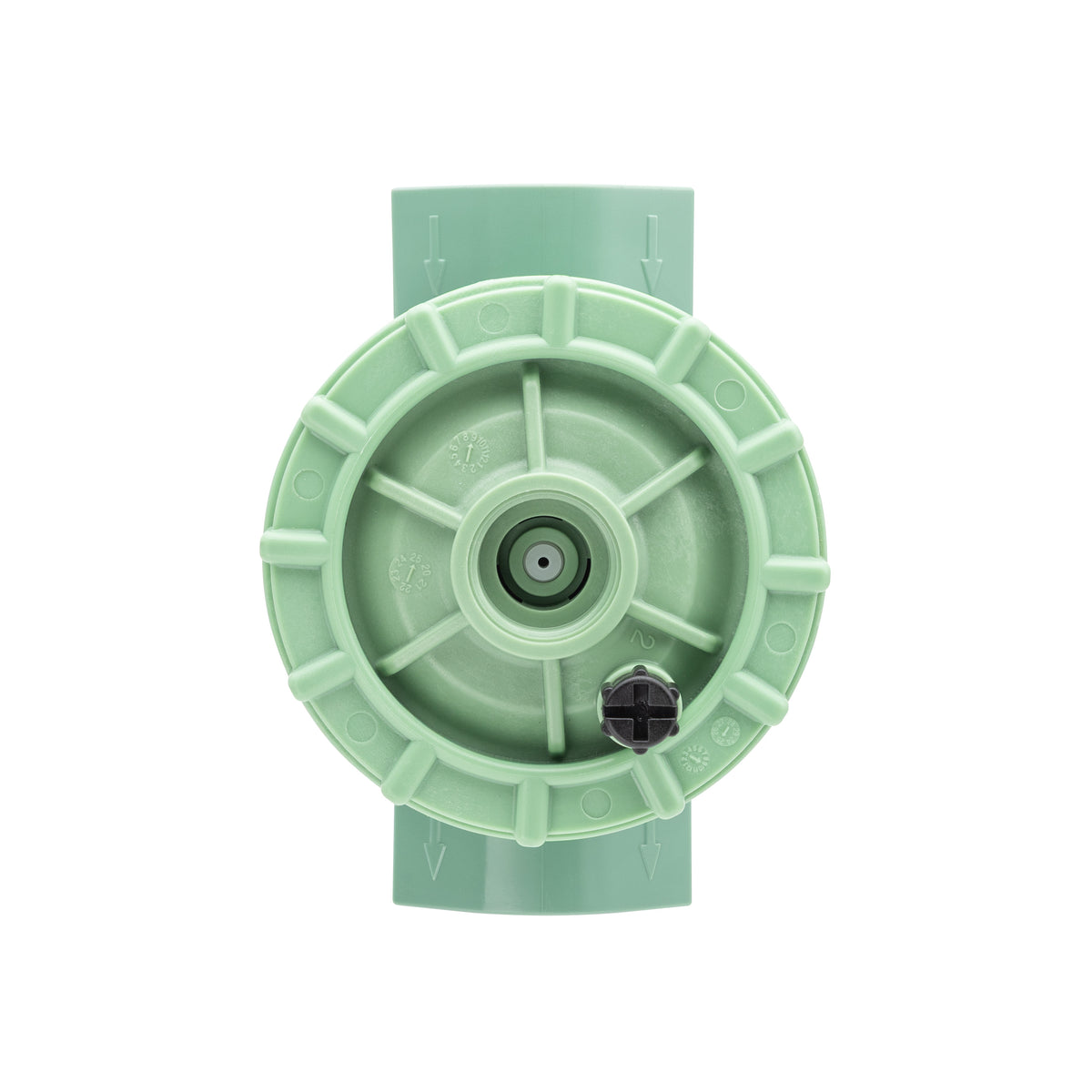

El diseño de tapa tipo rosca permite un fácil mantenimiento del diafragma de la válvula

Construcción de PVC con roscas disponibles en NPT hembra de 1 pulgada

$21.99

En existencias

Devoluciones gratuitas en todos los pedidos elegibles.

Tiene 30 días para solicitar una devolución. Todos los artículos descatalogados están exentos.

Las válvulas automáticas de tapa de rosca son las más fáciles de reparar para los sistemas de riego actuales. La válvula de tapa de rosca cuenta con un solenoide de 24 VCA, una palanca de accionamiento manual y un tornillo de purga. La tapa de la válvula se retira girándola en sentido antihorario, lo que permite acceder al diafragma y al anillo de soporte. Las roscas son para tuberías de 3/4" o 1" y son compatibles con accesorios de PVC Schedule 40 y 80, así como con adaptadores de colector de alta resistencia. El solenoide de la válvula de tapa de rosca cuenta con cable de cobre niquelado y es compatible con todas las marcas principales de controladores de riego de 24 VCA. Recomendamos los controladores B-hyve para una óptima conservación del agua y los accesorios PVC-Lock® para una instalación rápida y sin pegamento. Para uso exclusivo en riego exterior con agua fría

Tipo de válvula:Válvula en línea automática de tapa de rosca, 24 VCA

Material del cuerpo:PVC

Roscas de entrada/salida:1 pulg. FPT

Solenoide:24 VCA, cable de cobre niquelado; la tapa acepta rosca de solenoide estándar de 3/4-20 UNEF

Operación manual:Palanca de accionamiento manual y tornillo de purga

Filtración:Filtro lavador interno

Presión de trabajo:25–80 PSI

Presión máxima de operación:90 PSI

Presión de ruptura:150 PSI

Temperatura del agua:40–70°F en operación

Temperatura máxima del agua:80°F

Caudal mínimo, 1 pulg.:15 GPM a 25 PSI, 18 GPM a 50 PSI, 21 GPM a 75 PSI

Compatibilidad de accesorios:Accesorios de PVC Schedule 40 y 80, adaptadores de colector de alta resistencia; Blu-Lock y PVC-Lock para instalación sin pegamento

Compatibilidad del controlador:Todas las marcas principales de controladores de riego de 24 VCA (Orbit, Hydro-Rain y otras)

Ciclo de vida:Probado a 10,000 ciclos

Ofrecemos envío estándar gratuito en pedidos superiores a $50. La mayoría de los pedidos se envían en un plazo de 3 a 5 días hábiles (realizados antes de las 12 p. m. MT, de lunes a viernes). Se le enviará un número de seguimiento por correo electrónico una vez que su pedido haya sido enviado, y también puede consultar el estado del pedido en su cuenta. Tenga en cuenta que algunos artículos de gran tamaño o peso (tramos largos de tubería, cajas de válvulas, bombas) pueden no calificar para el envío gratuito. [Ver detalles completos de envío →]

Los productos comprados a través de Orbitonline.com son elegibles para un reembolso dentro de los primeros 30 días posteriores a la realización del pedido original. Aceptamos devoluciones caso por caso. Los productos devueltos aceptados deben estar nuevos, sin usar y en su embalaje original. Nos reservamos el derecho de verificar el estado de todos los productos devueltos antes de determinar la elegibilidad para un reembolso o cambio. Los pedidos superiores a $500.00 pueden estar sujetos a cargos por transporte de devolución y una tarifa de reposición. [Ver detalles completos de devoluciones →]

Download User Manual

Preguntas frecuentes

Some questions and answers are automatically generated.

Is this valve easy to maintain?

Yes. The jar-top lid design allows the top to come off easily for access to the diaphragm, and an oil filter wrench fits perfectly for servicing. Many reviewers praise this design as a major advantage, noting diaphragms and replacement parts are readily available at major retailers.

Can I use this with Orbit controllers?

Yes. The product is compatible with controllers from Orbit, Hydro-Rain, and other major brands. Reviewers have successfully used it with Orbit controllers, including remote operation from a cell phone.

Does the internal filter help prevent clogs?

The product includes an internal scrubber filter designed to help keep the valve clog-free from dirty water. Reviewers who have used multiple units report reliable operation over years of use, though occasional diaphragm cleaning or replacement is normal maintenance.

How long does this valve typically last?

Most reviewers report reliable performance over several years with normal maintenance. One reviewer mentioned having valves for about 2 years before experiencing issues; others have run 8 to 16 valves without major problems. Longevity depends on water quality and maintenance.

Does it work with battery-powered timers?

Yes. At least one reviewer confirmed it works reliably with a battery-powered timer, making it a flexible option for systems without AC power.

Can I install this as a direct replacement?

Yes. Several reviewers report replacing their existing valves without any modification to existing piping, making installation straightforward for upgrades.

Does this valve have a manual override?

Yes. The 24 VAC solenoid includes manual actuation with a twist of the solenoid, allowing you to operate the valve manually if needed.

.jdgm-product-faqs-widget__mount { display: none; } .jdgm-product-faqs-ssr { clip: auto; clip-path: none; height: auto; overflow: visible; /* Back in flow and back to being the real widget: the details rows have to toggle. */ pointer-events: auto; position: static; white-space: normal; width: auto; }

5 stars: 19 (86%)
4 stars: 1 (5%)
3 stars: 0 (0%)
2 stars: 1 (5%)
1 star: 1 (5%)

Best product on the market!

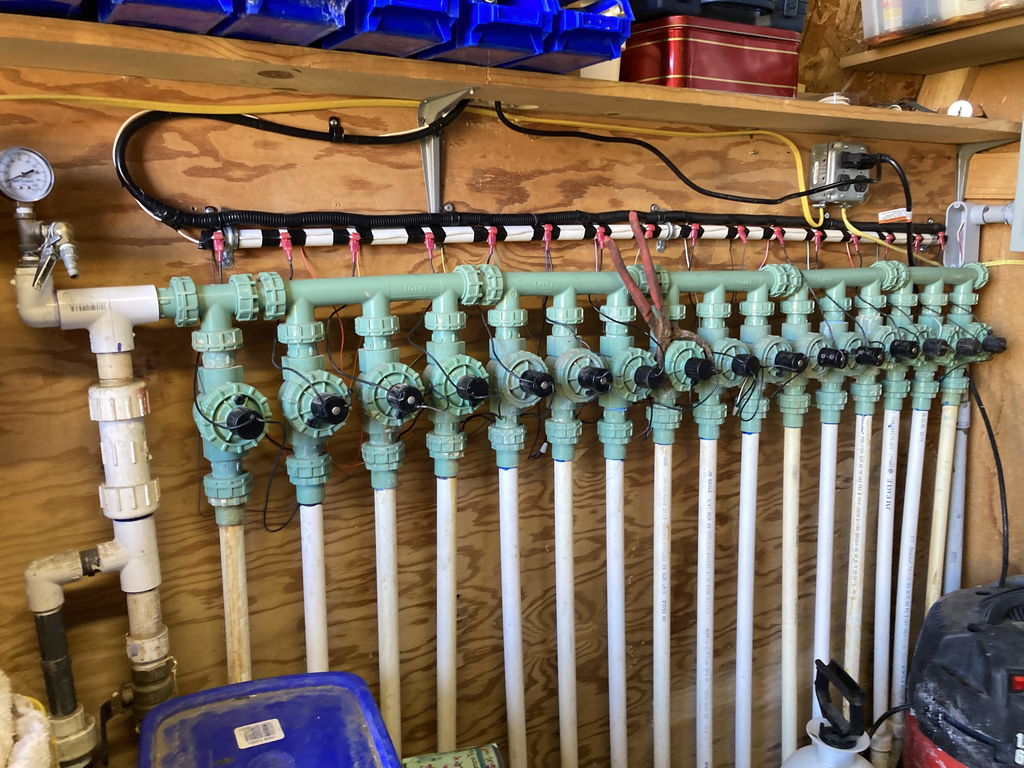

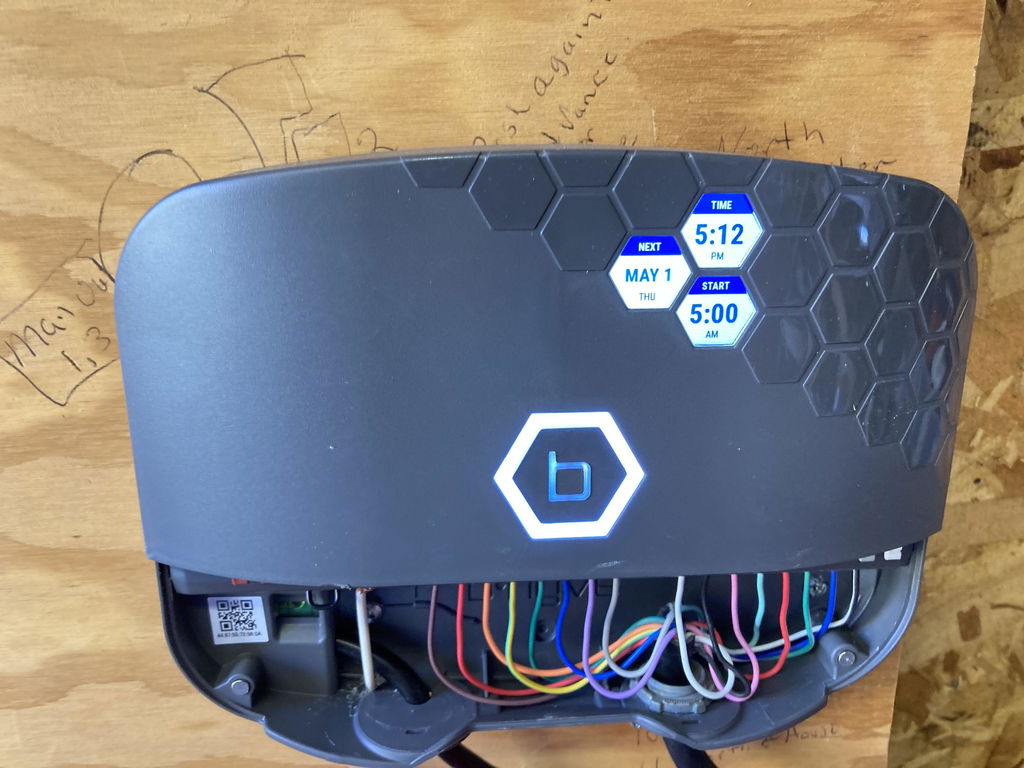

I have 12 jar top valves in my lawn manifold, and 4 in my garden manifold. All, of which I control from an Orbit 16 station controller and operate them from my cell phone. I do occasionally have to clean or replace a diaphragm, but they are readily available at Home Depot and Lowe’s, who keep them in stock and at a reasonable price. I am very pleased with jar type valves as a very easy to maintain with an oil filter wrench, which fits them perfectly for maintenance. I do wish the diaphragm would provide a better seal as I have to tighten outer ring very tightly to prevent them leaking slightly at times. I have them mounted inside my garden shed on the wall, which makes it very easy to maintain them.

I wanted mpt not fpt as shown in picture

I wanted mpt not fpt as shown in picture. Visual not a good part number

Thank you for letting us know about the incorrect product being ordered. Someone from our Customer Care team will be following up with you with assistance. Have a great rest of your day.

Original purchase of 6 bleed screws

Original purchase was for 6 bleed screws. I was informed that the bleed screws were not available. I was informed that the screws are not available with a sku number. I had to purchase the Jar Top Automatic Sprinkler Valve.

Thank you should work

Thank you should work great!!

Replaced my valve with no problems or hassles

Replaced my valve with no problems or hassles. Great follow-up.

Good

Good

Design Or production issues

I like the ease of removing the top but it seems to me that an obvious design flaw exists as I have had two valves now fail in the exact same way. With the valves leaking past the obvious solution was the diaphragm. Wrong! New diaphragms and no change. Changing the O-ring. Nope. Maybe the spring is too weak? Wrong again. The amount of time spent troubleshooting should be billed to you to find a small crack in the valve body in the exact same place on both valves. Having 10 of them it just makes me wonder if I should start replacing them with another brand knowing what is coming. Oh, and I had them about 2 years.

Thank you for taking the time to share your review on troubleshooting these Sprinkler Valves and finding damage to them. We're glad to know how these products have been replaced for you and ask that you reach out to our Customer Care team for any concerns that you may have, or if further assistance may be needed in the future. We can be reached by phone at (800)488-6156 or online at support.orbitonline.com. Have a great rest of your day.

Worked great

Super Service

Very helpful customer service. I had misplaced the springs over winter after winterizing the system. You can buy everything except the springs to repair the unit (selinoid and diaphragms). Customer service was able to come up with a solution quickly.
